- Wired and wireless audio inputs: with stereo RCA/3.5mm AUX audio input and microphone pick up, work well with most audio devices such as phone, computer, CD players, or speakers etc., very suitable for home/office/studio to dynamically decorate your auditory feast.
- Excellent sound and free settings: with 100K high-impedance input circuit, ensuring clean sound without any audio rendering when using line inputs. The color and light level of backlight also can be adjusted freely, perfectly match with different styles of audio device and environments.
- Advanced AGC algorithm and better display:
AGC ensures ideal visual effects even the input signal is in a small to large range, avoid that no display when input low signal and display in full screen when input high.
With gain adjustment even can set the swing range of pointer, easily to control most input signals and achieve better beating effects. - Attractive looking and powerful design: all metal case with CNC machined panel, solid stepless adjustment knob, all interfaces are gold-plated to ensure the tight connection, ensures the smooth transmission of the original audio signal and minimizes the loss of the signal during transmission.
- Audio input: stereo RCA / 3.5mm AUX / Microphone
- Audio output: stereo RCA / 3.5mm AUX
- Input impedance: 100K
- Input voltage: 0.1-2Vrms
- Frequency response: 5Hz-20KHz
- Brightness color: switchable
- Brightness level: adjustable
- Gain adjustment: support
- Working voltage: DC 5V (≥1A)
- Power interface: USB (type-C)
- Setup save: support

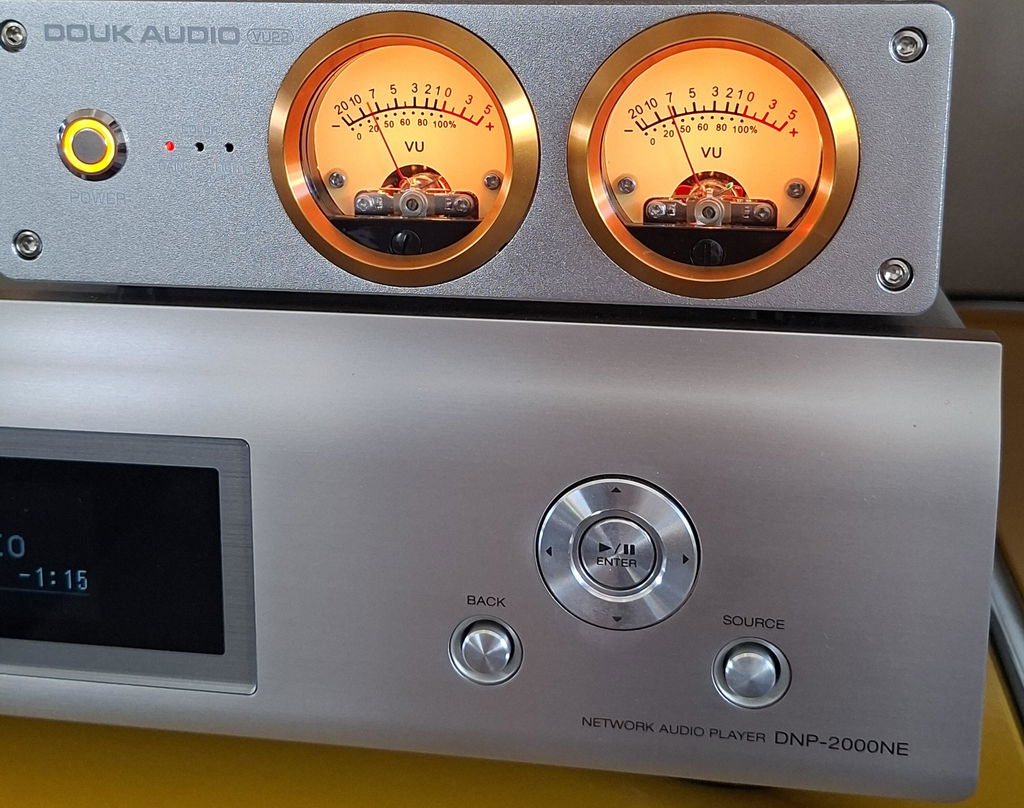

- VU meter diameter: 45mm
- Dimensions(W*D*H): 177*115*59mm / 6.97*4.53*2.32in
- Net weight: 661g / 1.46lb
- Package weight: 900g / 1.98lb
- VU22 VU Meter ×1
- USB Cable (No power adapter) ×1
- Rubber Feet ×4
- User Manual ×1
User Manual of Douk Audio VU22
Warm Tips：
Compatible with most audio devices, but cannot guarantee 100%. If there exists common ground noise, please add an isolation module between VU22 and your device.
Customer Reviews
Bought this to jazz up my stereo set up. Using the mic feature rather then hardwiring and it works perfectly. No problem with low or high level music.
Douk audio makes some really nice products. I'm using this between a WiiM Ultra and my Studio Monitors. I'm not a music producer I just enjoy the needles moving as a throwback to earlier days. They seem accurate to me. The display is very customizable with many colors and ranges of brightness. Some reviewers have mentioned a hum and/or noise but that may be because of placement or lower quality cables. I'm using Monoprice Premium cables (Very reasonably priced) for my run and there is no noise whatsover. It's very nicely constructed and the display is gorgeous. It's really eye candy, but it's NICE eye candy! One minor item to note is that the button on the back to select line in or MIC is somehow reversed on mine. MIC=Line In and Line In=MIC. I don't know how this got past quality control and I'm a little disappointed but besides that all is good.
Looks great as a VU meter. Doesn’t do anything else though but then who’s asking it to🤪
The media could not be loaded.
This provided the visual element I was missing in my set up.I simply exceeded my expectations. Fun enjoyable toy for the listening room
Of course it doesn’t do anything other than look amazing, but I LOVE it!! LOL! I might buy another!! A+++
