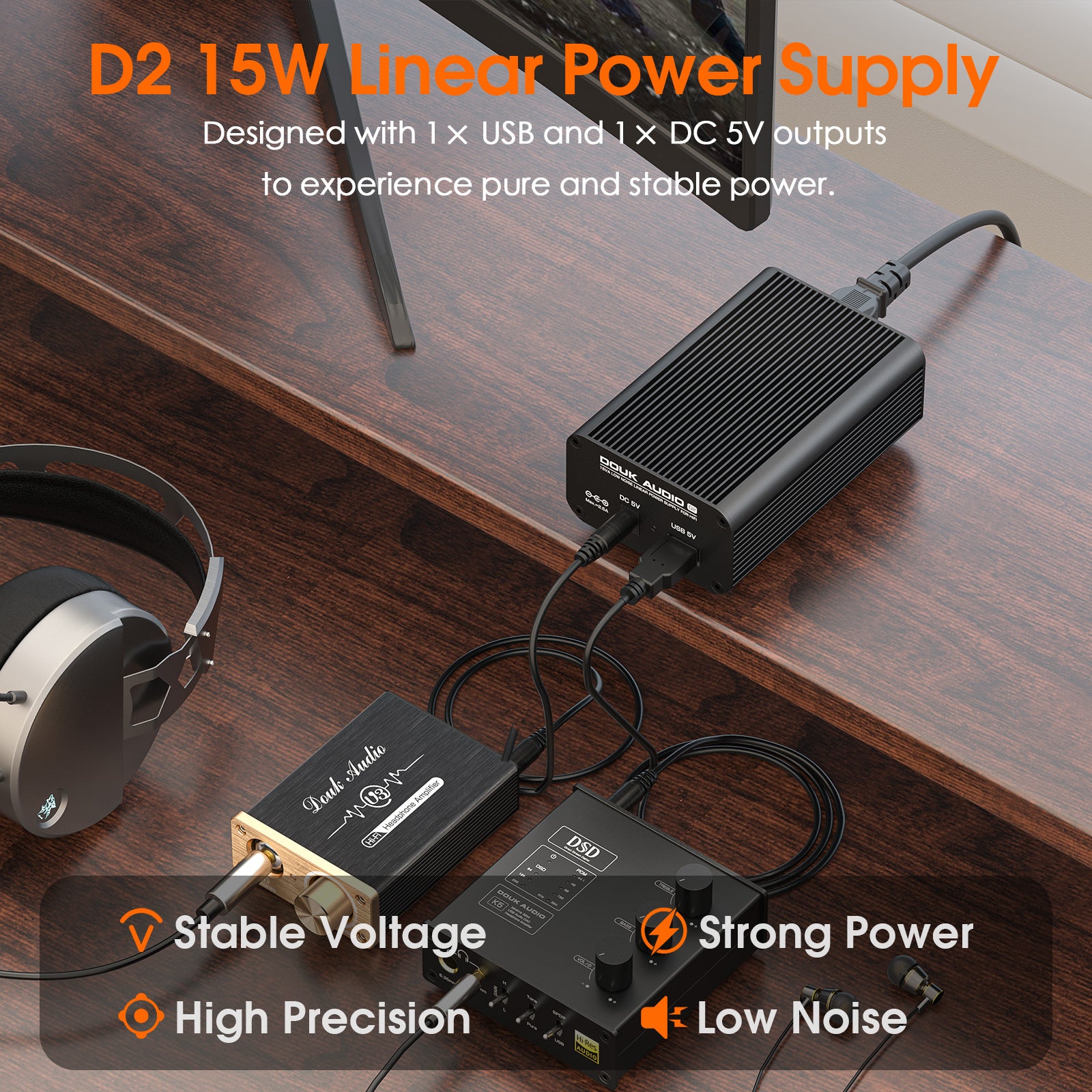

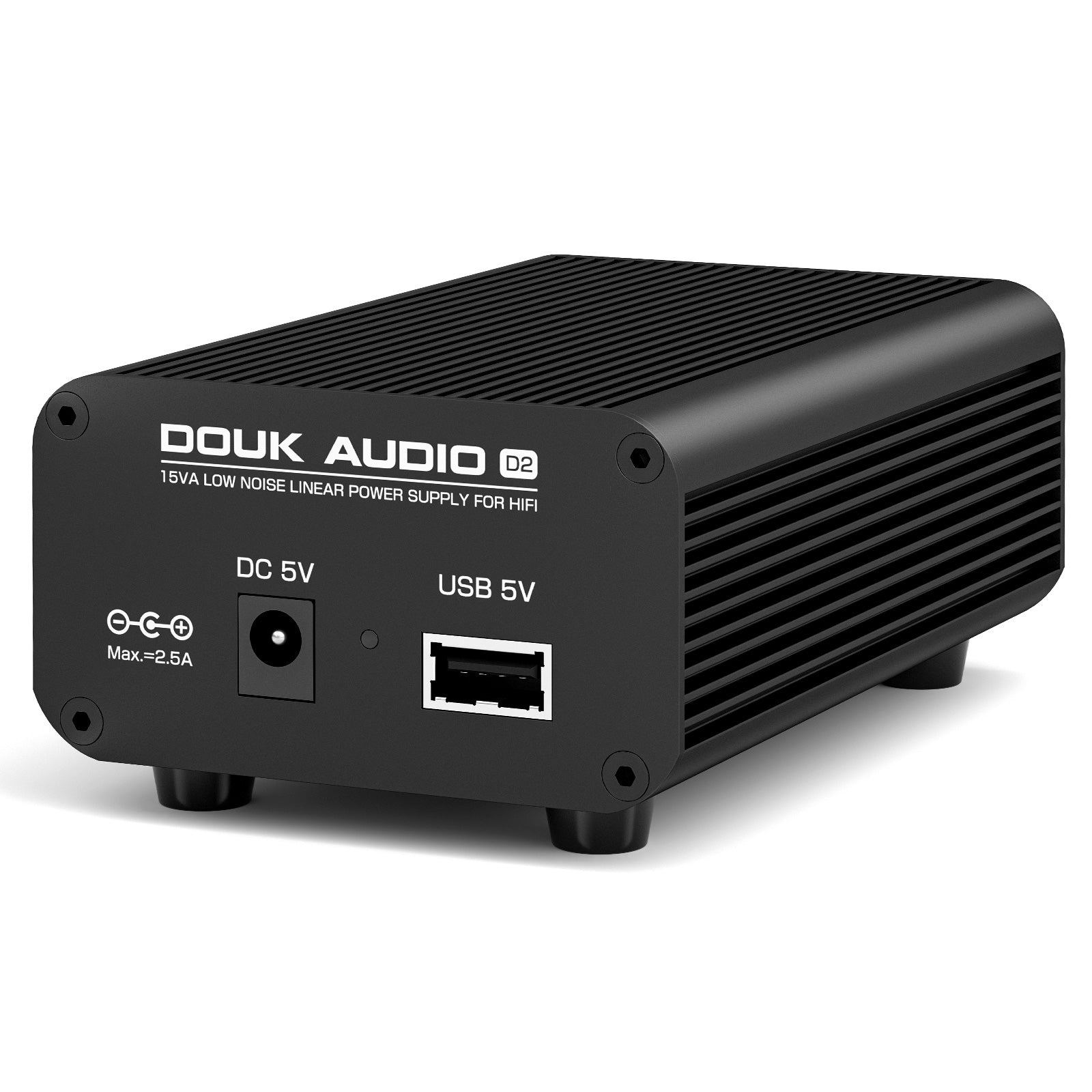

Douk Audio D2 15W HiFi Linear Power Supply with DC+USB 5V Output
Ampapa A1 Mini 5654 Vacuum Tube Preamp Phono/Turntable Amplifier w/Tone Control
@v-mire.net
Why everyone praises the Ampapa D1 amplifier with TPA3255 2x 300W
@Williston Audio Labs
This Little Amp Has a SHOCKING Feature
@Souzoukan Technical Report
Revealing the performance of the Chinese-made Ampapa D1 with a glass window
@HiFi Huff
FUN! Comparing SIX Integrated Amps from $199 to $25,000. Also, are Separates BETTER?
@Old Guy Hifi
Not in price but in Performance! The Ampapa (Douk) D1 Hifi Amp.
@Christian Schwarzbeck - China-HiFi
Ampapa D1 – Der kompakte High-Tech-Verstärker mit 3 Eingängen, VU-Metern, PFFB & Hochpassfilter!
- Cleaner Linear Power Upgrade: Ordinary switching adapters can introduce ripple, electrical noise, and interference into sensitive audio gear. As a linear power supply, the D2-PRO helps create a darker background, smoother highs, and cleaner detail for a more refined listening experience.

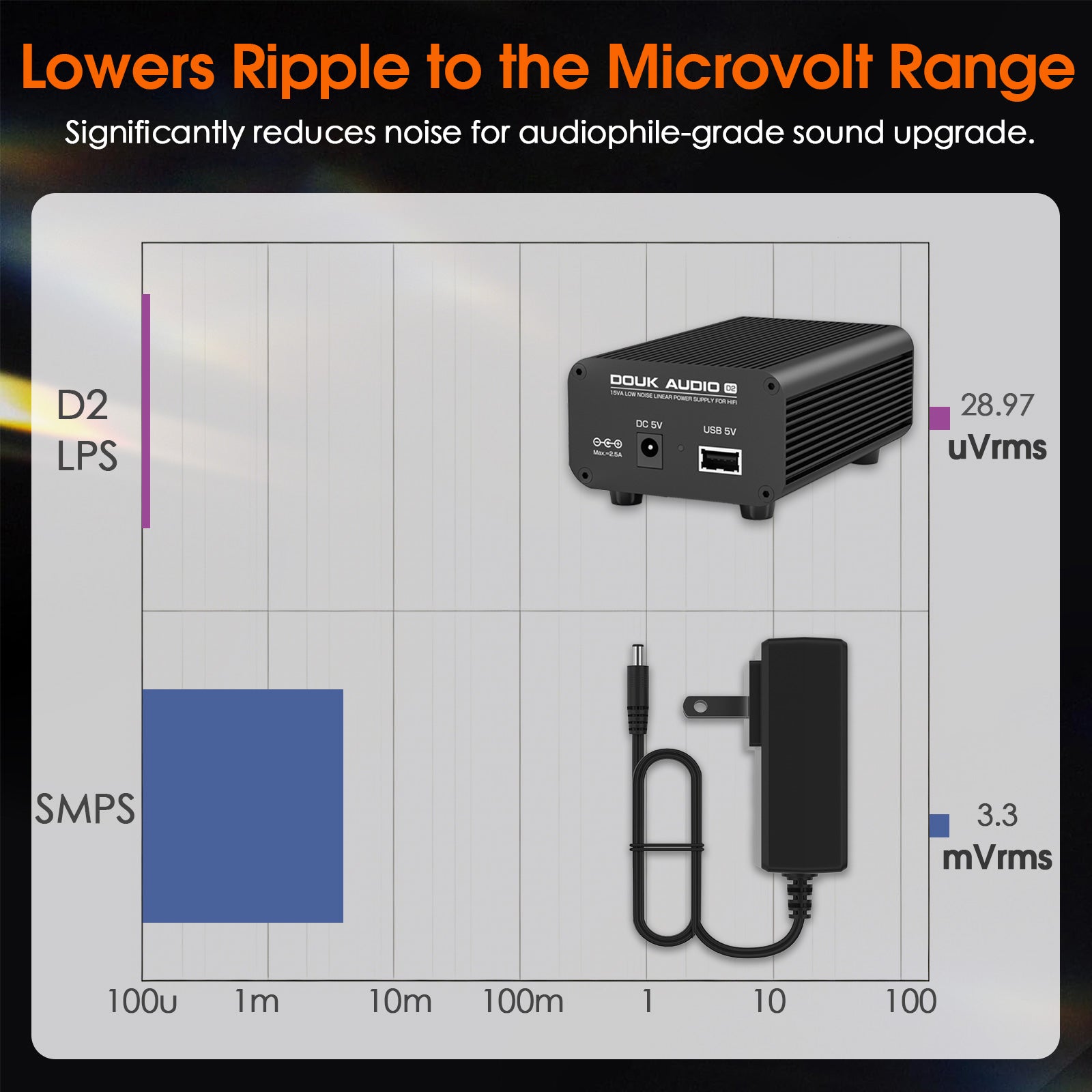

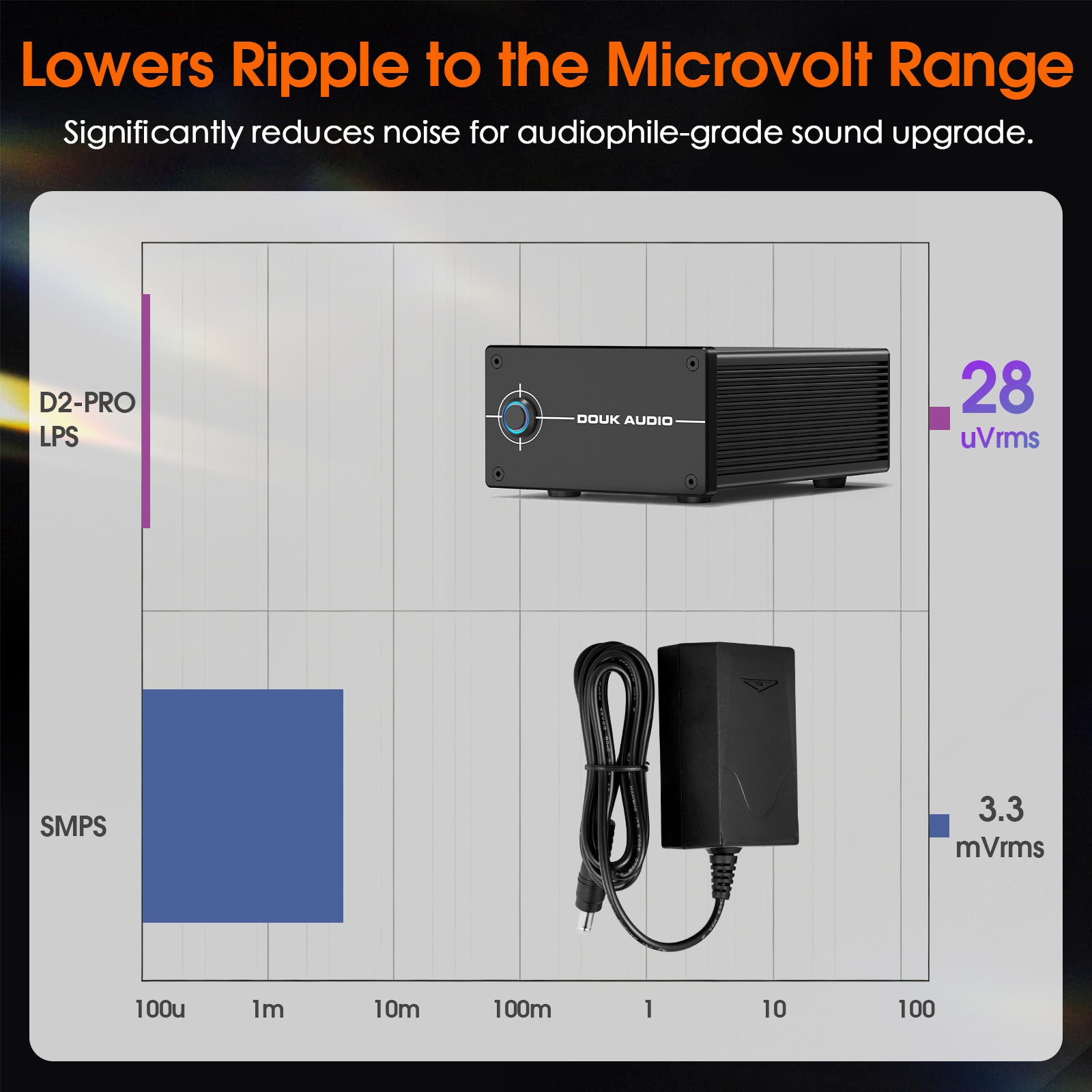

- 28μV Ultra-Low Ripple: Ripple noise is measured at only 28μV RMS under no-load conditions, giving sensitive audio circuits a cleaner power foundation. By reducing power-related noise at the source, it supports steadier imaging, cleaner dynamics, and more natural detail.

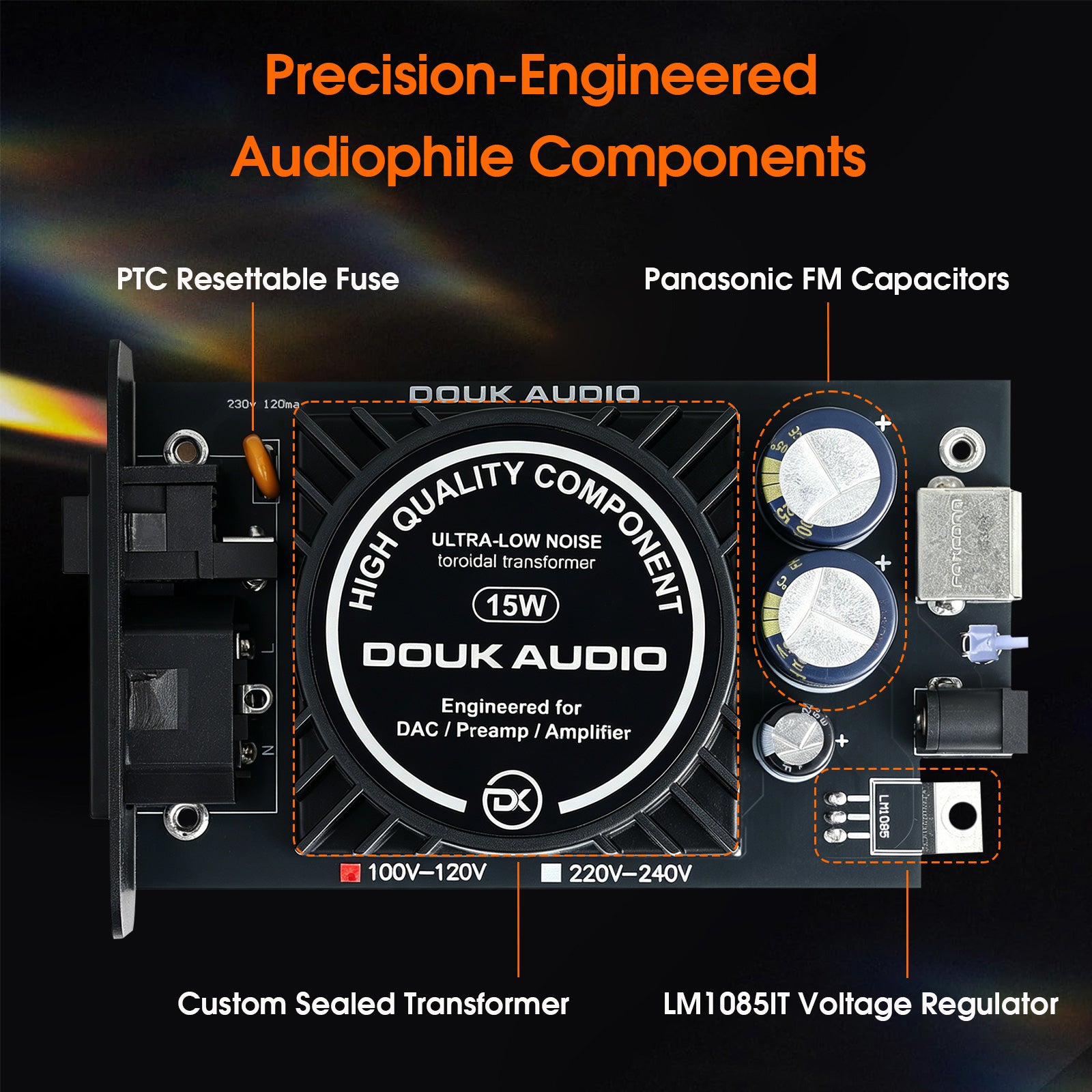

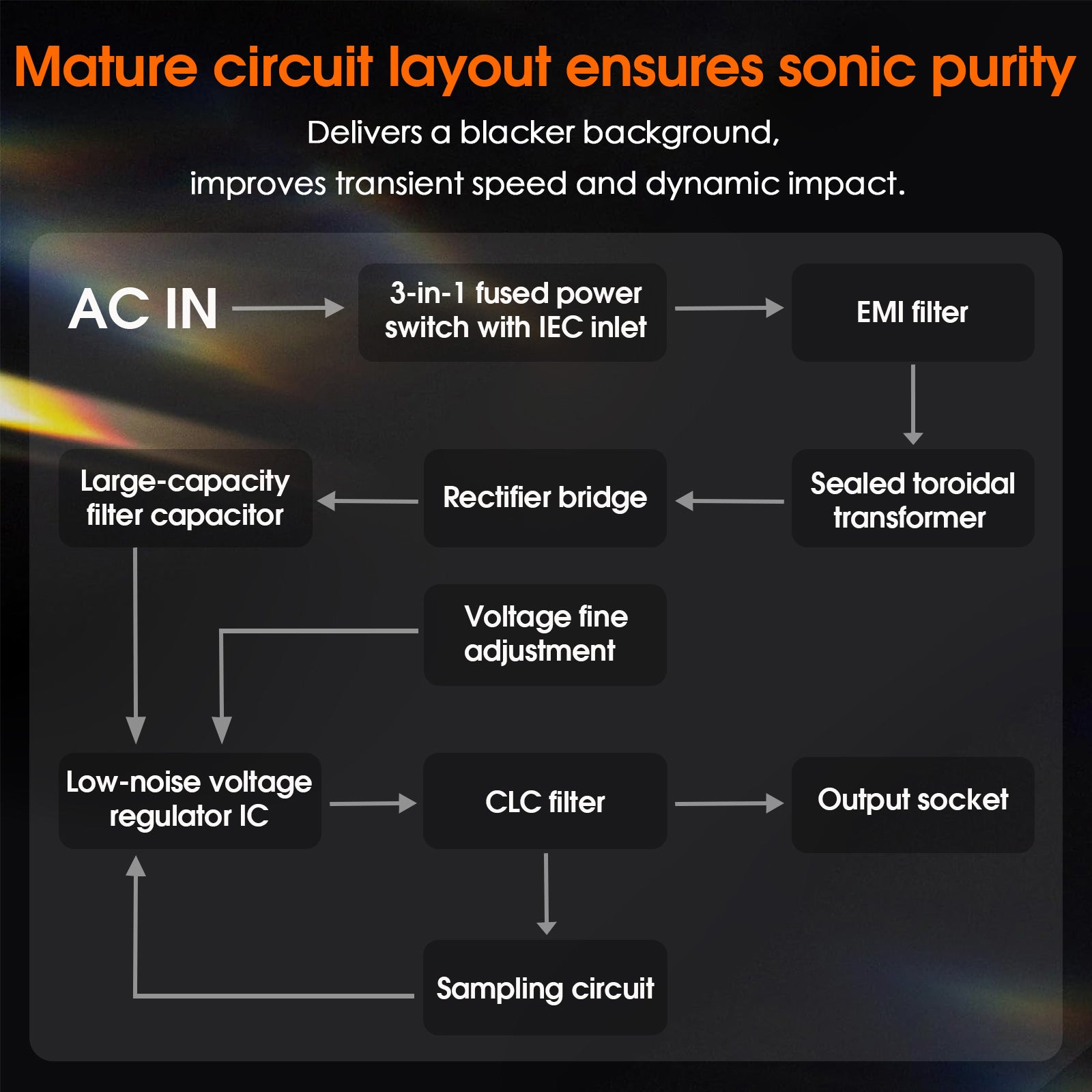

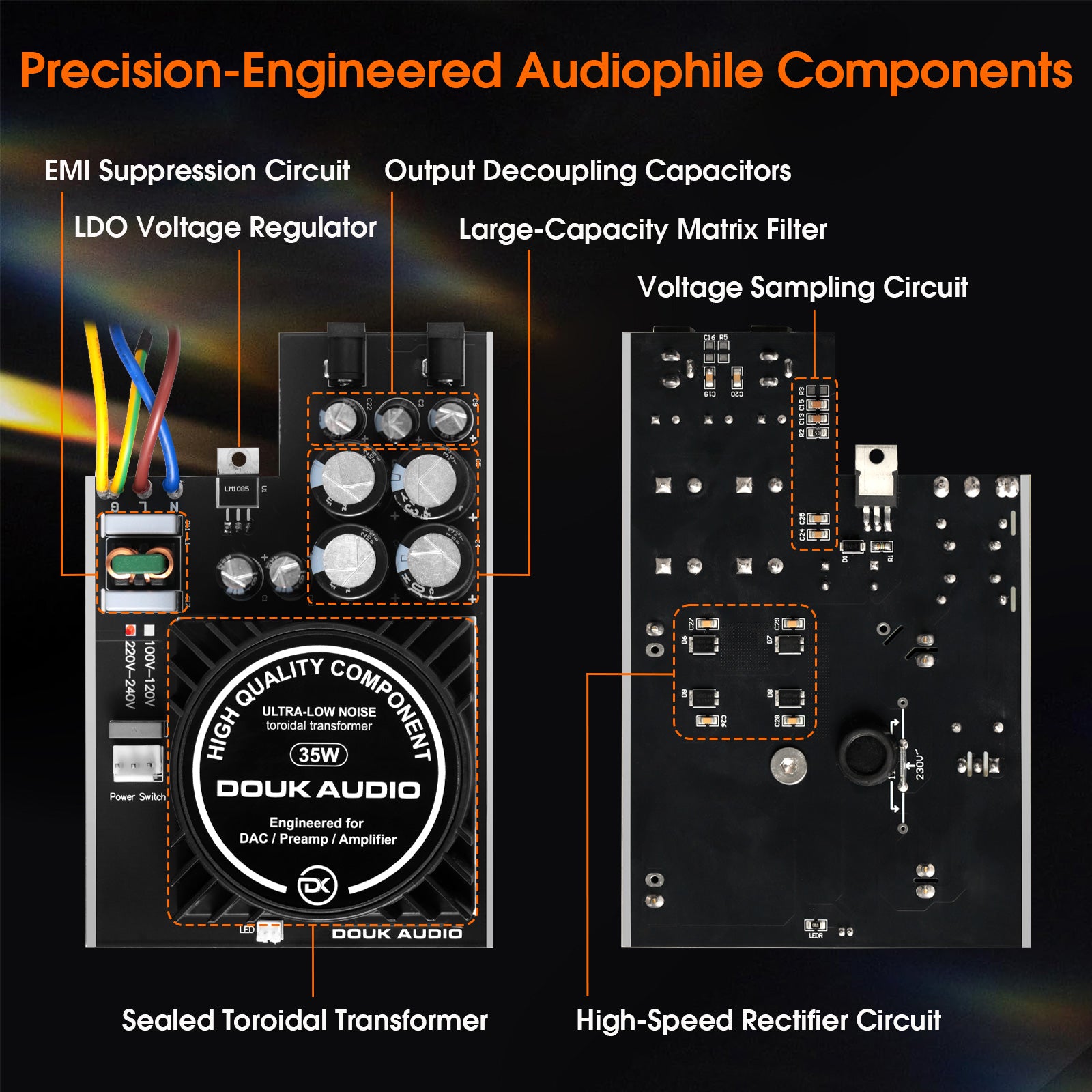

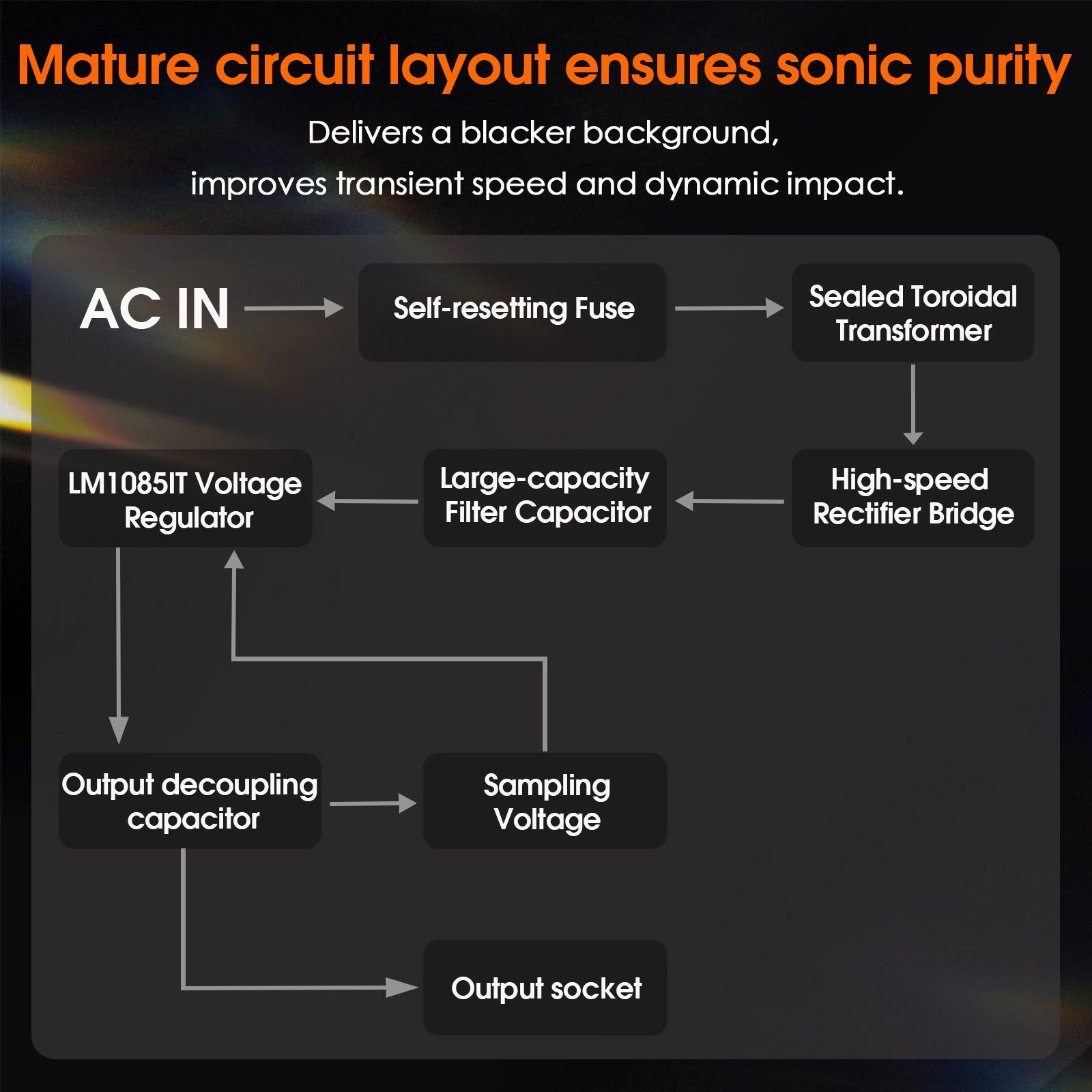

- Low-Noise Power Architecture: A sealed toroidal transformer, EMI suppression circuit, high-speed rectifier, large-capacity matrix filtering, and LDO regulator work together to isolate grid interference, smooth DC output, and deliver stable, well-regulated DC power.
- 35W Dual DC Output: With up to 35W output power and 2.5A current capacity, the D2-PRO can run one or two compatible devices from the same clean regulated source. Dual DC outputs help create a more consistent low-noise power setup for compact HiFi systems.
- Made for HiFi Audio Systems: Designed for 12V DACs, preamps, headphone amps, streamers, digital interfaces, audio switches, and network switches. The aluminum chassis helps improve heat dissipation and reduce external interference for stable daily use.
- Brand: Douk Audio
- Model: D2 PRO

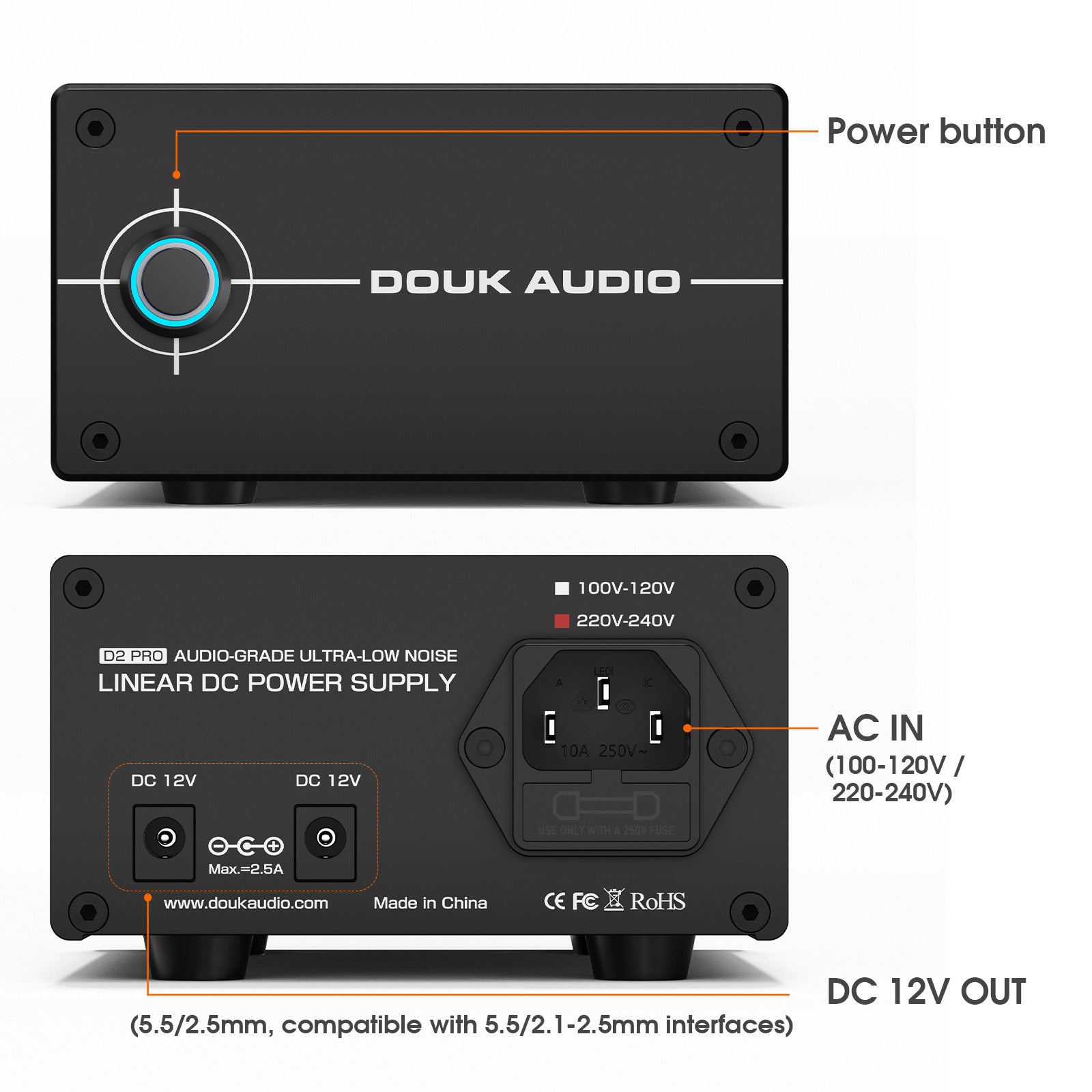

- Output Interface: Dual DC Outputs
- Output Voltage: DC 12V
- Max. Output Current: 2.5A
- Power Capacity: 35W
- Ripple Noise: (No load) 28μV RMS
- Fuse Replacement: Supported, 5mm × 20mm, 1A
- DC Output Connector: 5.5 × 2.5 mm, positive inside and negative outside, compatible with 5.5 × 2.1 mm plugs
- Input Voltage: AC 110V–120V / AC 220V–240V

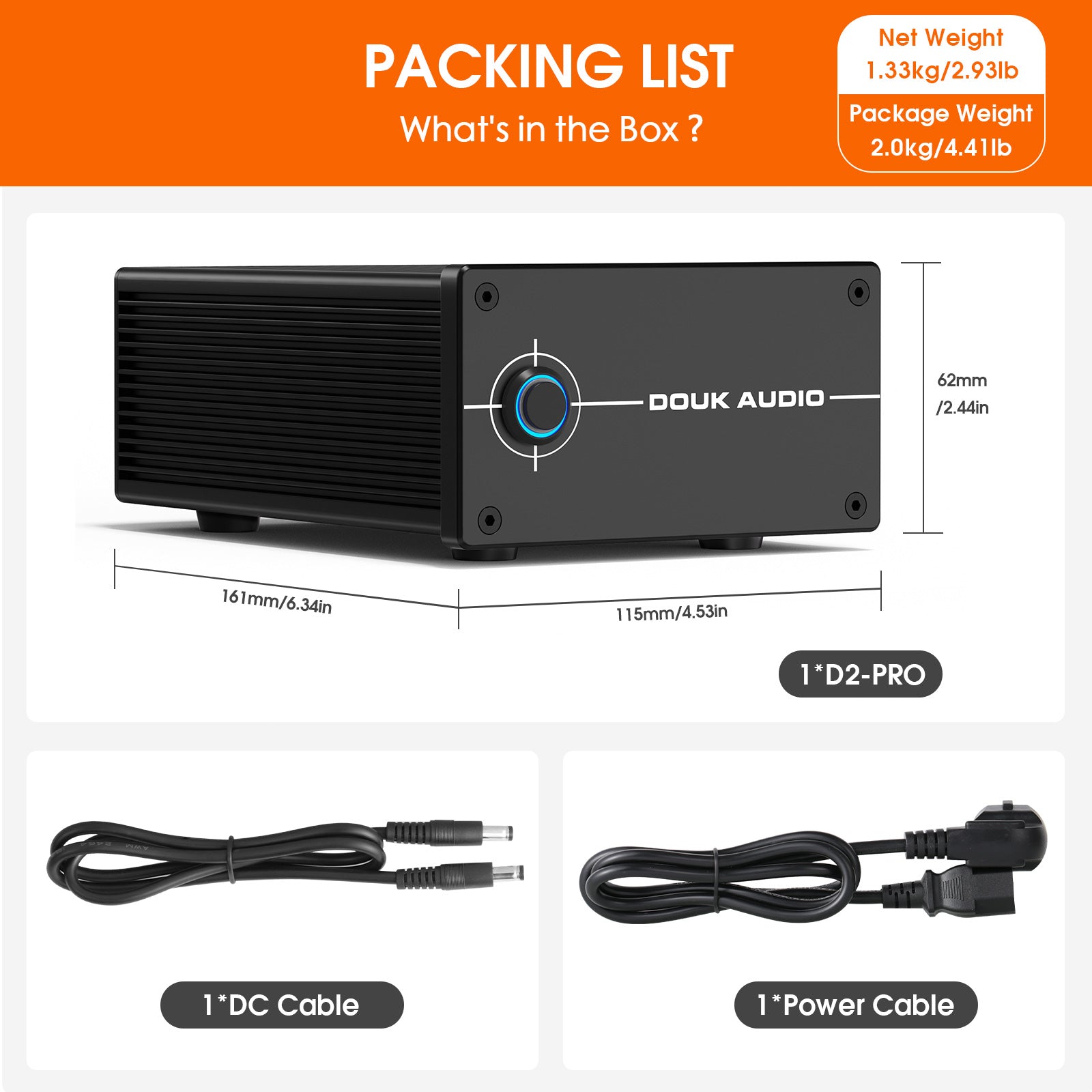

- Dimensions (W × D × H): 115 × 161 × 62 mm / 4.53 × 6.34 × 2.44 in
- Net Weight: 1.33 kg / 2.93 lb
- Package Weight: 2.0 kg / 4.41 lb
- 1* D2 PRO
- 1* DC Cable
- 1* Power Cable
User manual of Douk Audio D2-PRO
FAQs
Q: The D2-PRO have two output terminals. Can both terminals be used simultaneously at full rated current?
A: No. You can connect two output devices at the same time, but the total curent drawn from both outputs must not exceed the rated output current.
Q: The DC output jacks of D2-PRO are 5.5mm/2.5mm, and my device's power jack is 5.5mm/2.1mm. Are they compatible?
A: Yes.
Q: Is the output voltage of the D2-PRO adjustable?
A: The output voltage is typically fixed and can only be fine-tuned within about ±0.5V. Normally no adjustment is required.
Q: My device requires a 12V / 1A power supply. Can I safely use the D2-PRO (12V / 2.5A)?
A: Yes. The 2.5A rating indicates the maximum available current. Your device will only draw the current it requires.
Q: Why do the D2-PRO generate more heat than switching power supplies? Is it safe?
A: It is normal. Linear power supplies operate at lower efficiency, so more energy is converted into heat. The D2-PRO is safe when used within rated load limits.

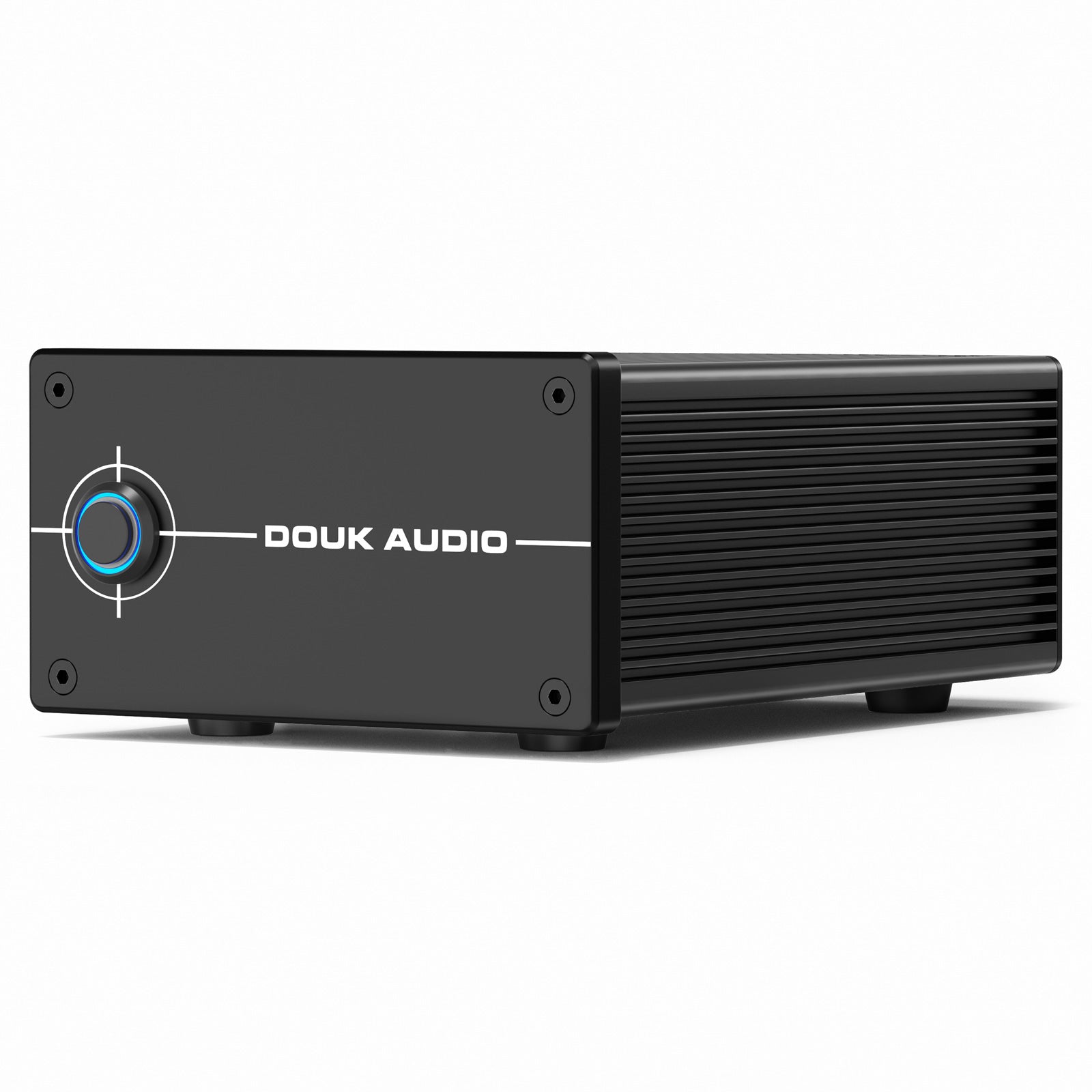

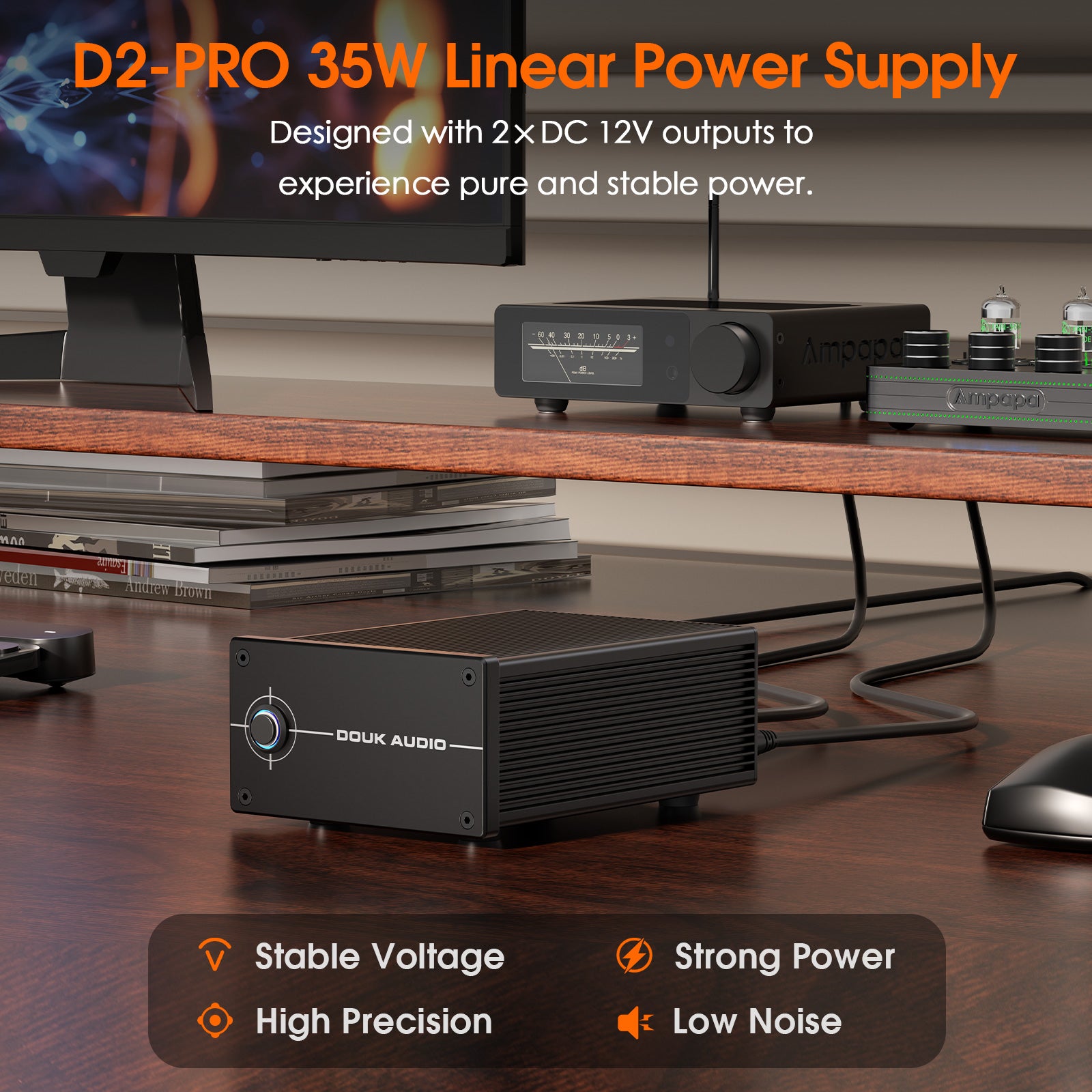

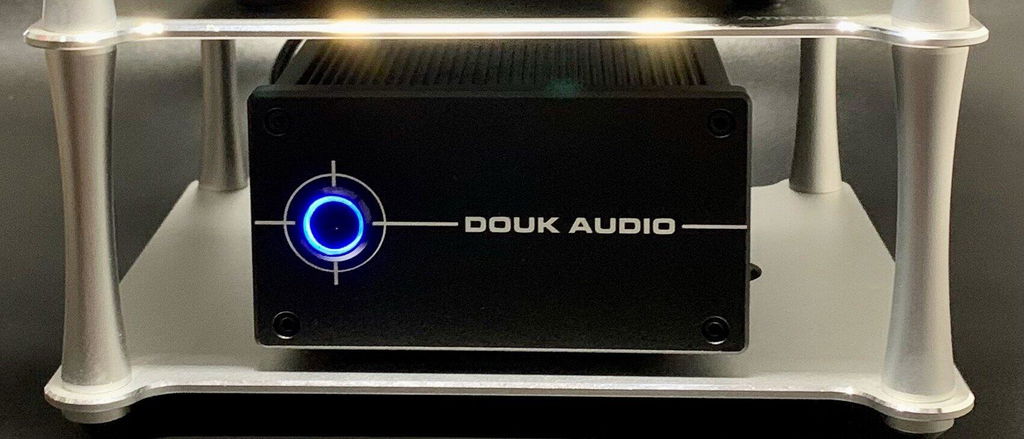

Douk Audio D2 PRO
Perfect Companion for Your Audio Setup

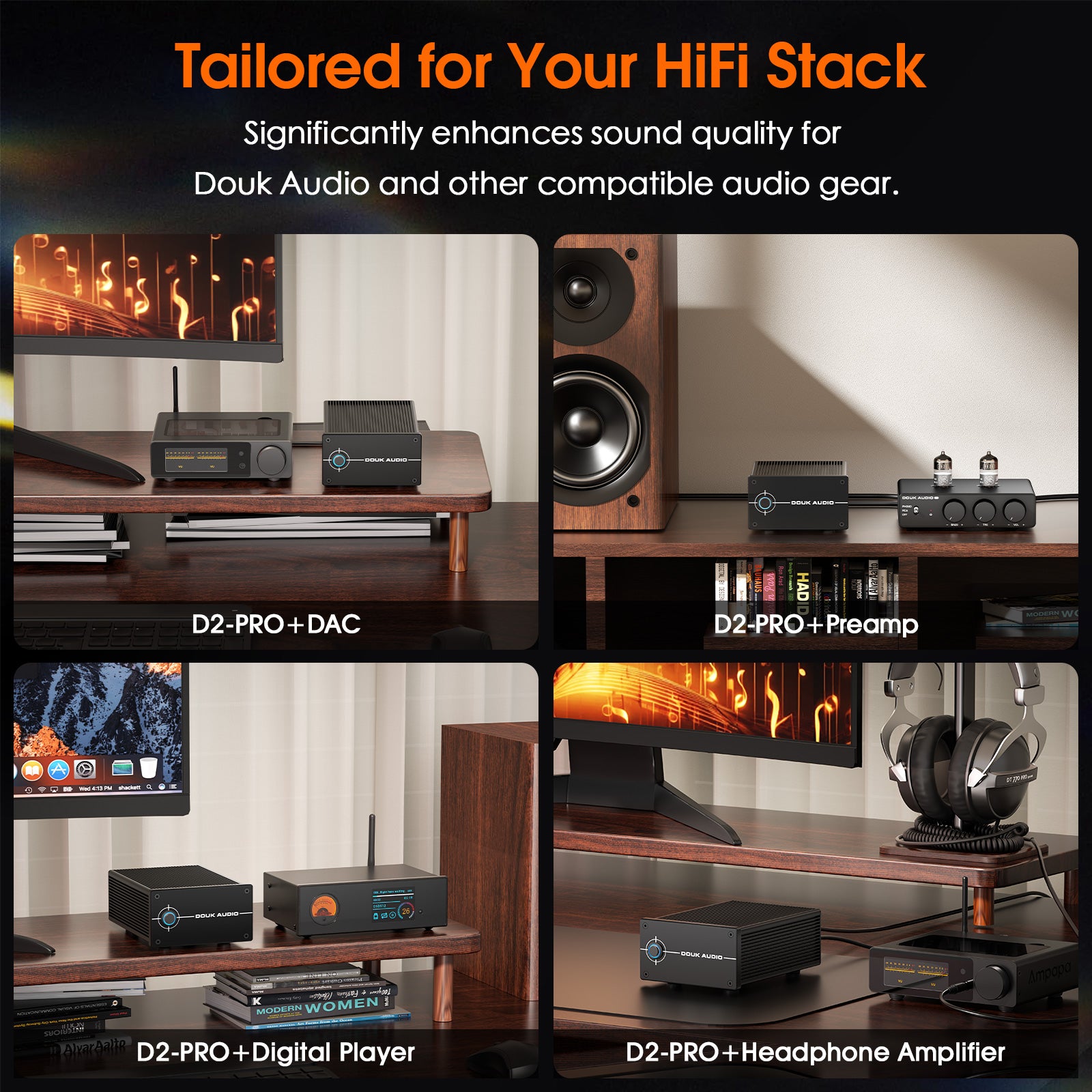

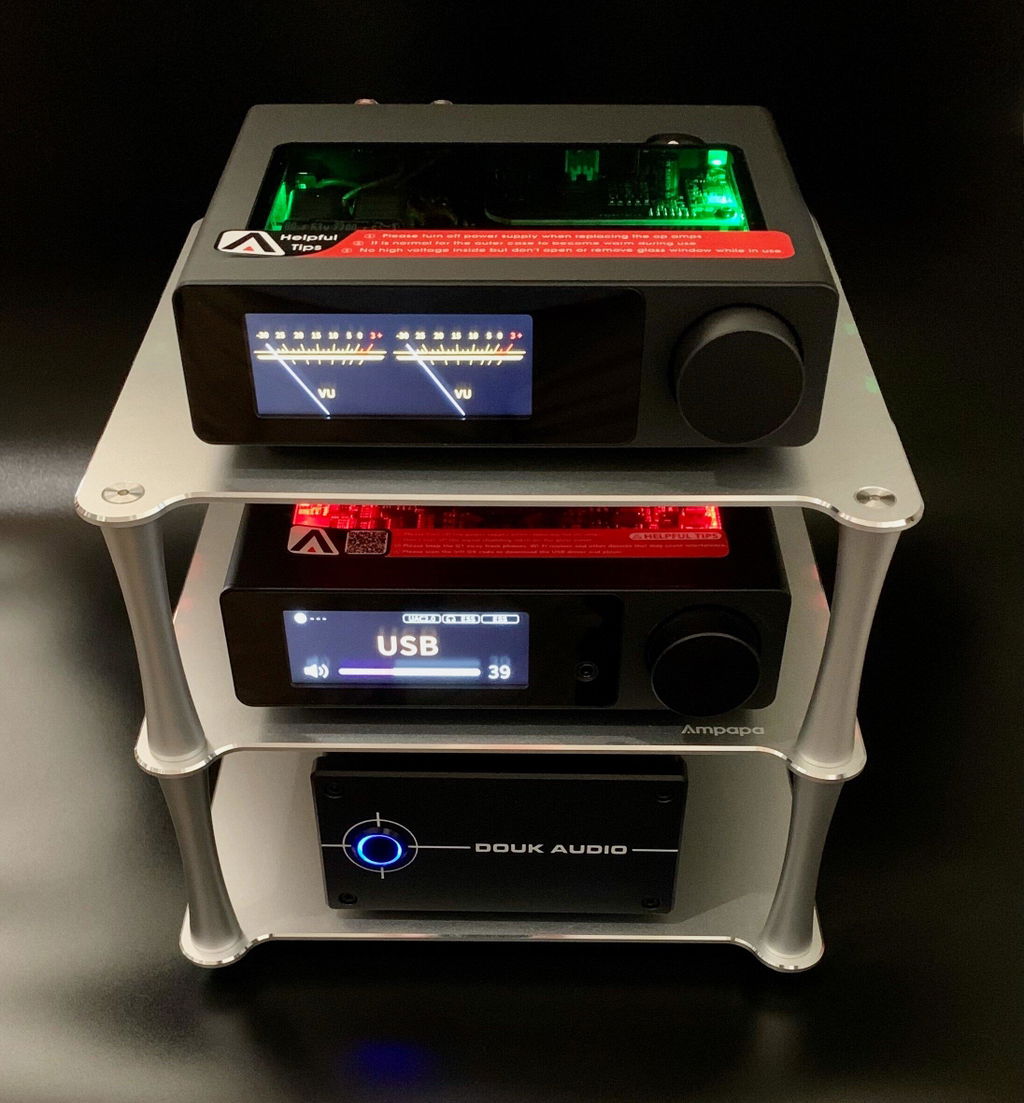

The D2 PRO is not only designed for Douk Audio products but also seamlessly compatible with a wide range of voltage-matched components such as DACs, preamps, headphone amps, DDCs, Raspberry Pi, router, Network switch and digital players, fully unlock the sonic potential of your system.
- Output Interface: 2* DC 5.5x2.5mm (Compatible with 2.1-2.5mm)
- Output Voltage: 12V (≤2.5A)
- Max. Output Power: 35W
- Ripple Noise: <30μV (no load)
