Douk Audio P1 HiFi Bluetooth 5.0 Vacuum Tube Preamp USB DAC Stereo Headphone Amplifier APTX-HD
Ampapa A1 Mini 5654 Vacuum Tube Preamp Phono/Turntable Amplifier w/Tone Control
Douk Audio E2 Tube Headphone Amplifier XLR/4.4mm/6.35mm HiFi Stereo Preamplifier
- Optimized Tube Amplification: Powered by an isolated power section with metal shielding, effectively reducing interference for a cleaner and more stable audio signal. The tube operates at a boosted 180V, maximizing its performance for a rich, dynamic sound.
- 4-Way Audio Selector & Splitter: Supports up to 4 RCA inputs, allowing easy connection to CD players, DACs, streamers, and Blu-ray players etc. The input switch enables seamless comparison between multiple devices without constant replugging. Dual outputs support simultaneous output, allowing connection to two amplifiers or two active speaker sets.
- Vintage VU Meter and Built-in Tube: The elegant VU meter, paired with a glowing tube, brings a timeless vintage aesthetic. The adjustable internal RGB lighting further enhances the ambiance. Whether in a studio or a cozy listening space, it creates an immersive experience.
- Headphone Output & Tone Control: With an integrated headphone jack, it delivers up to 500mW at 32Ω, ensuring ample drive for a wide range of headphones. Additionally, the adjustable bass and treble controls allow for precise tonal shaping, letting you customize the sound to match different headphones and audio setups.
- Easy Op-amp and Tube Upgrades: Designed for effortless customization, the pluggable sockets allow users to easily swap out op-amps and tubes for enhanced flexibility. Upgrade to higher-end components to refine the sound quality and elevate your listening experience.
- Brand: Nobsound
- Model: TUBE-T5C
- Audio input: 4 groups of RCA
- Audio output: 2 groups of RCA / 3.5mm headphone jack
- Input sensitivity: 0.775V
- Rated output level: 2V
- Frequency response: 20Hz-20KHz (±0.8dB)
- THD+N: 0.06%
- SNR: ≥107dB
- Bass/treble range: ±6dB
- Headphone output power: 500mW/32Ω
- Matched headphone impedance: 16-600Ω
- Working voltage: DC 12V
- Dimensions (W*D*H): 152*92*85mm / 5.98*3.62*3.35in
- Package dimensions (W*D*H): 285*155*110mm / 11.22*6.10*4.33in
- Net weight: 827g / 1.82lb
- Package weight: 1.10kg / 2.42lb
- TUBE-T5C Preamp ×1
- DC 12V Power Adapter ×1
- Hexagonal Wrench ×1
User Manual of Douk Audio TUBE-T5C
Warm tips
- All outputs work at the same time. The volume/treble/bass are controlled simultaneously.
- If the VU meter needle isn't moving noticeably, please turn up the bass and the master volume.
- 10-second warm-up required; audio delayed during tube activation.
- The TUBE-T5C with 1PC pluggable NE5532 op-amp, can be upgraded by dual op-amps like 2134/2604/5532/2068/muse02.
- Default one ECC83 tube, can be directly replaced by PSVANE 12AX7-S and Shuguang 12AX7B / 7025 / 12AX7 etc.
- High voltage inside, please turn the TUBE-T5C off first before replacing the op-amp and the tube, and avoid dropping anything inside.
Customer Reviews

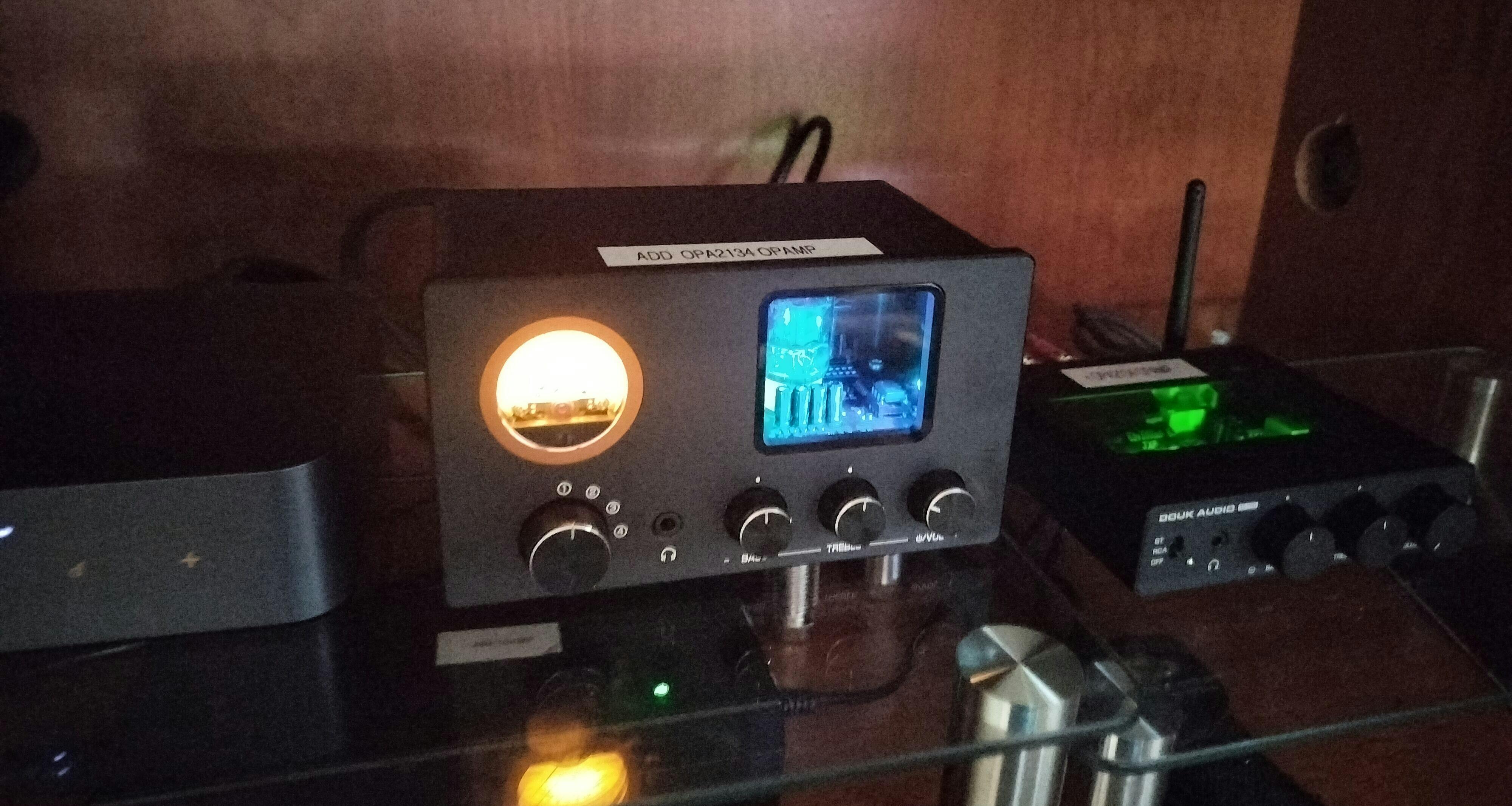

I'm using the t5c to add a taste of tube buffer warmth , which it actually does a very good job of at 180 volts for the tube plate. That's quite high for This sort of device. I did my research. It's also useful because it has multiple RCA inputs and a convenient switcher on the front. I send the signal out to my Douk A5 pro amplifier. I had fun doing some op-amp rolling with both of these devices adding the opa-2134. They really sound good. I like being involved with how my music sounds so in a subjective sense I think the t5c had something nice to my music and if someone wants to disagree that's their business I don't listen to them. And it's beautiful to look at. I would give it an additional star if it had a remote control. I plan to add a Nobsound eq9 analog equalizer very soon, because I realize I like doing that also. I don't enjoy digital equalization that my streaming music device features. It works it may be very accurate, but it's just not as much fun.
