Douk Audio L1MINI Mini Stereo Line Level Booster Amplifier Audio Preamp 20dB Gain + Volume Control
Douk Audio L1MINI Mini Stereo Line Level Booster Amplifier Audio Preamp 20dB Gain + Volume Control
Precio habitual
$39.99 USD
Precio habitual
Precio de oferta
$39.99 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Introduction

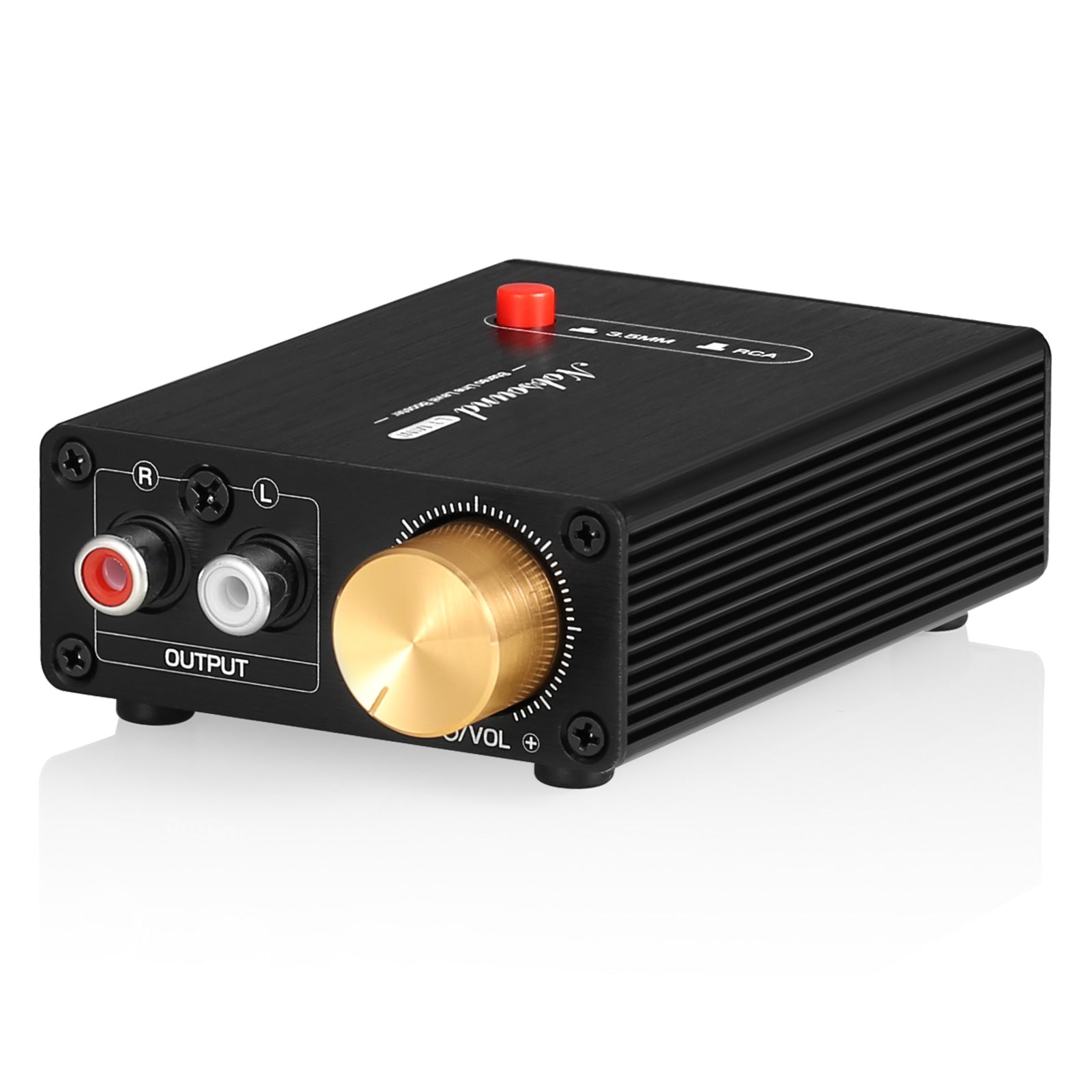

Douk Audio L1 MINI is an upgraded version of L1, featuring a more compact size and simplified interfaces. It is a stereo amplifier with built-in voltage boost and amplification circuits, designed to boost the output of virtually any line level audio source (such as TV, video games, MP3 players, ipod, phone, tablet etc.) to max 20dB. L1 MINI features its wide gain range, wide frequency response, excellent S/R and HiFi sound, to bump the output level of the audio devices which are with an inherently low level output so as to match other sources, or to allow the use of a longer cable run than normal between components.
Features

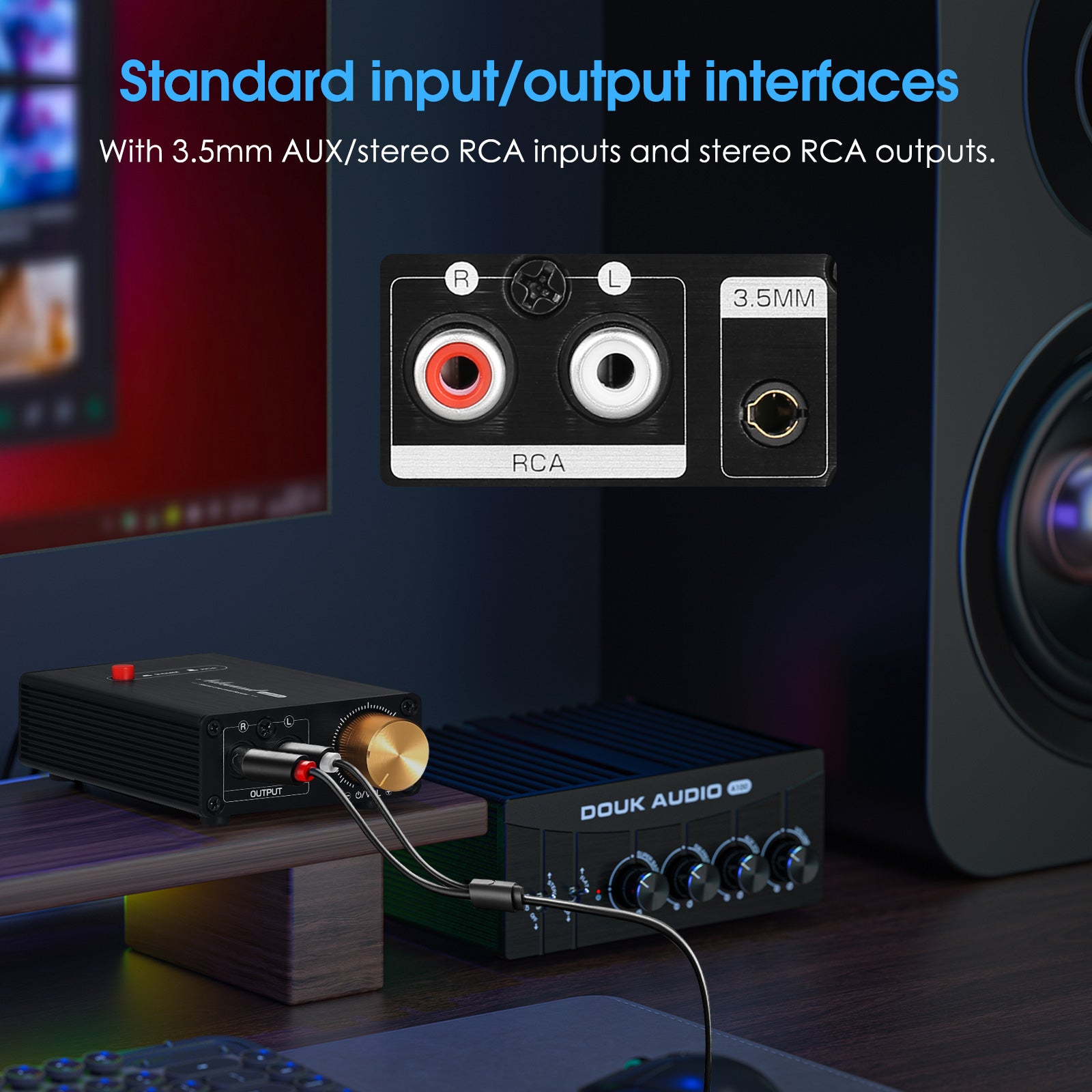

- Standard input/output interfaces: with 3.5mm AUX/stereo RCA inputs and stereo RCA outputs, can be compatible with most low-volume audio sources such as ipod, ipad, phone, TV, MP3 player, potable CD player, computer, video game etc., and boost their output to the level needed to drive amplifier or speakers.

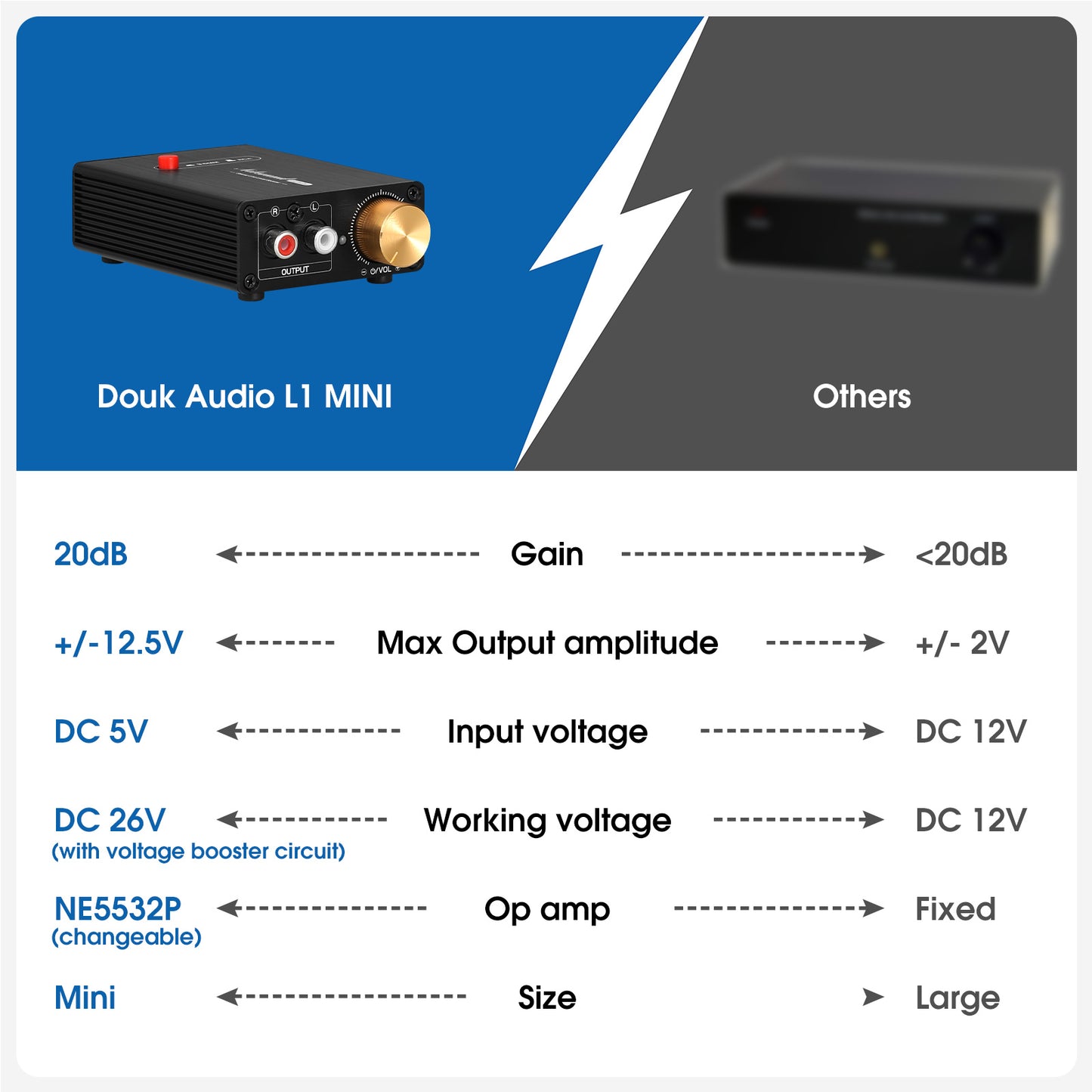

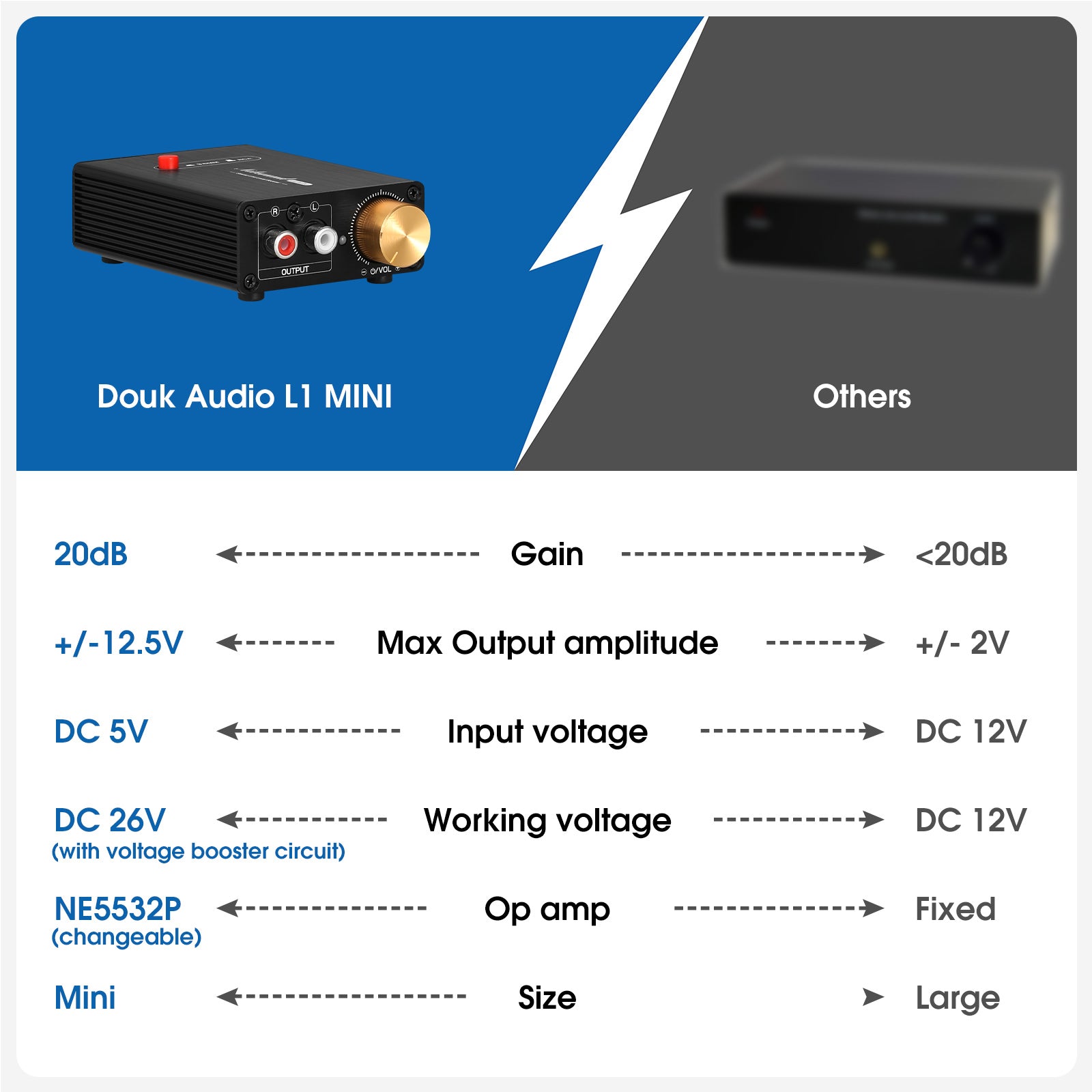

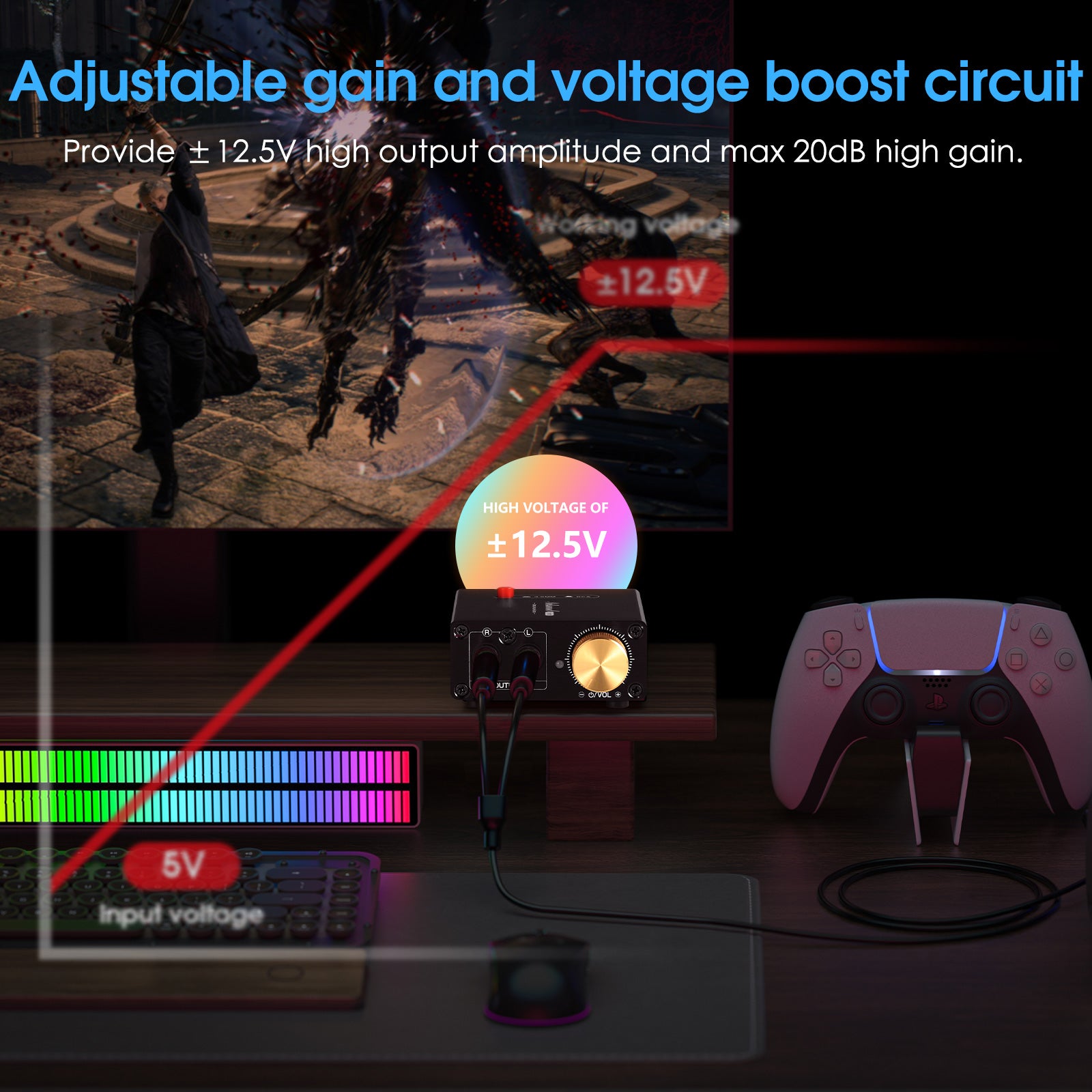

- Adjustable gain and voltage boost circuit: with built-in amplification and voltage boost circuit, adjustable gain to match better with different audio sources, while L1 MINI can always work at a high voltage of 26V to provide ±12.5V high output amplitude and max 20dB high gain.
- Unique design and HiFi clear sound: double-side PCB design, NE5532P op amp with pluggable socket design, convenient to upgrade other dual op amps to bring more playability. The high-quality sealed potentiometer ensures a wide frequency range and excellent dynamic response, delivering smooth, warm, and natural sound with ultra-low distortion.

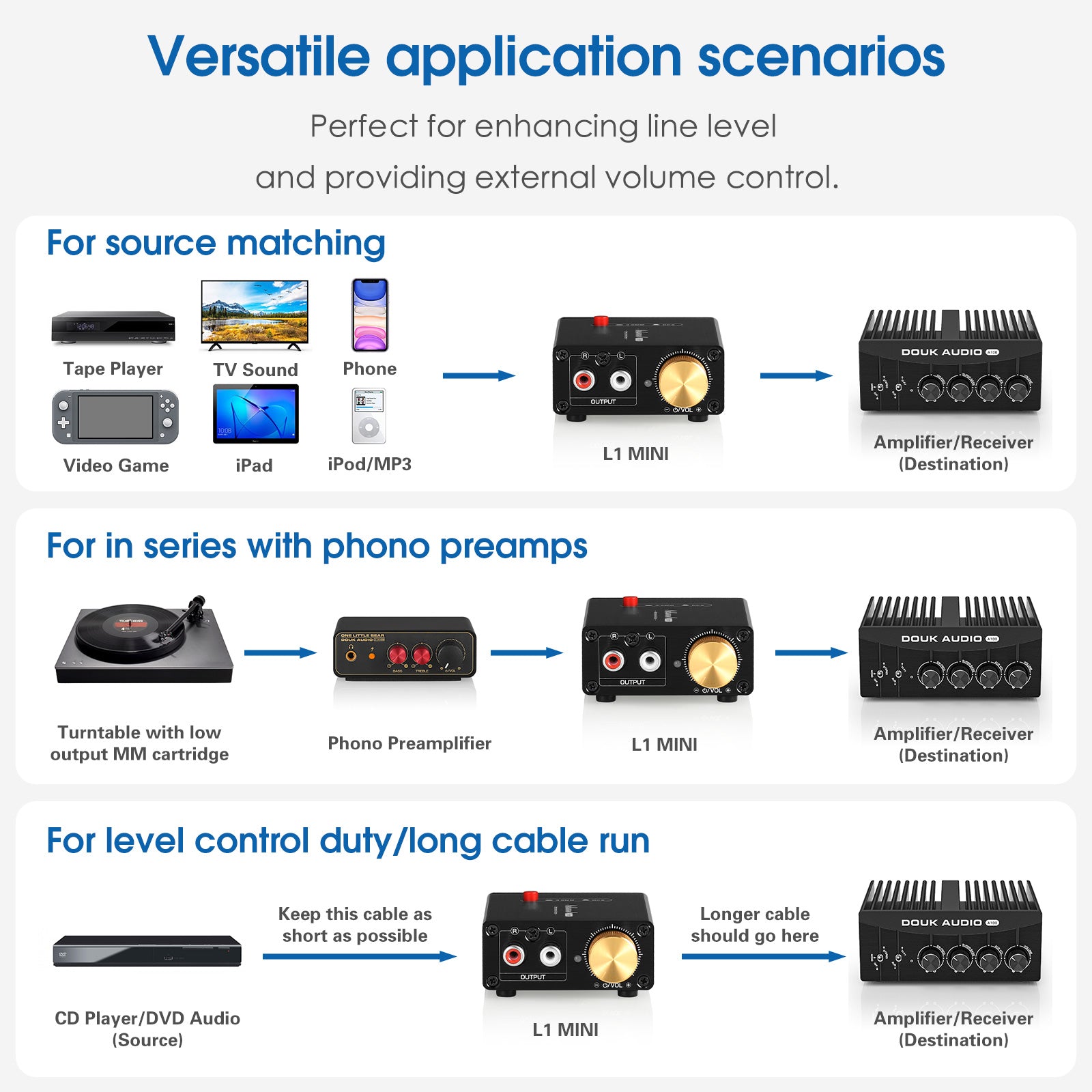

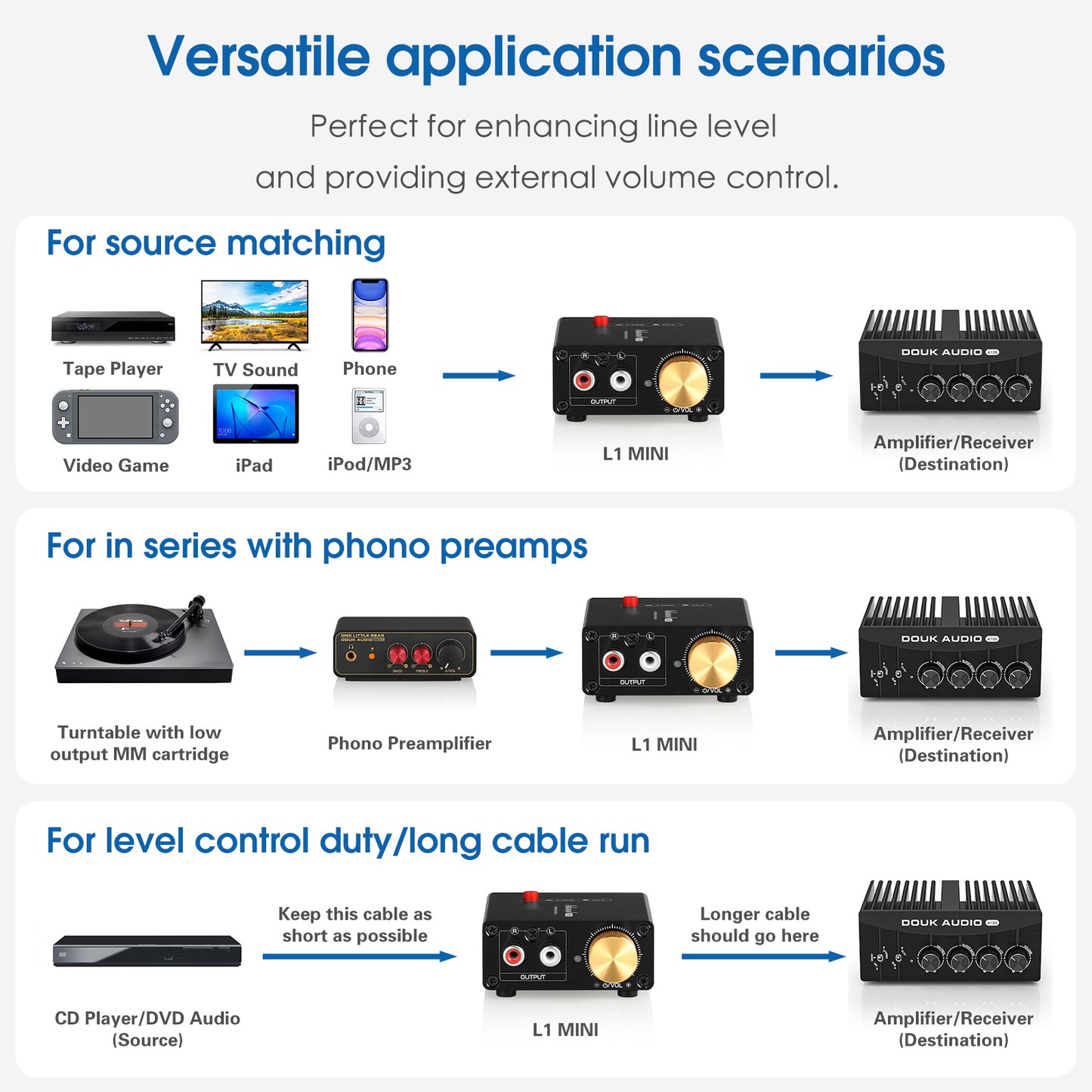

- Versatile application scenarios: perfect for boosting the volume of portable audio devices to match home stereo systems, enhancing karaoke or CD/DVD players for lively parties, and providing external volume control for audio sources lacking adjustments, ideal for mixer or speaker setup, audio recording, party, live stage event etc.

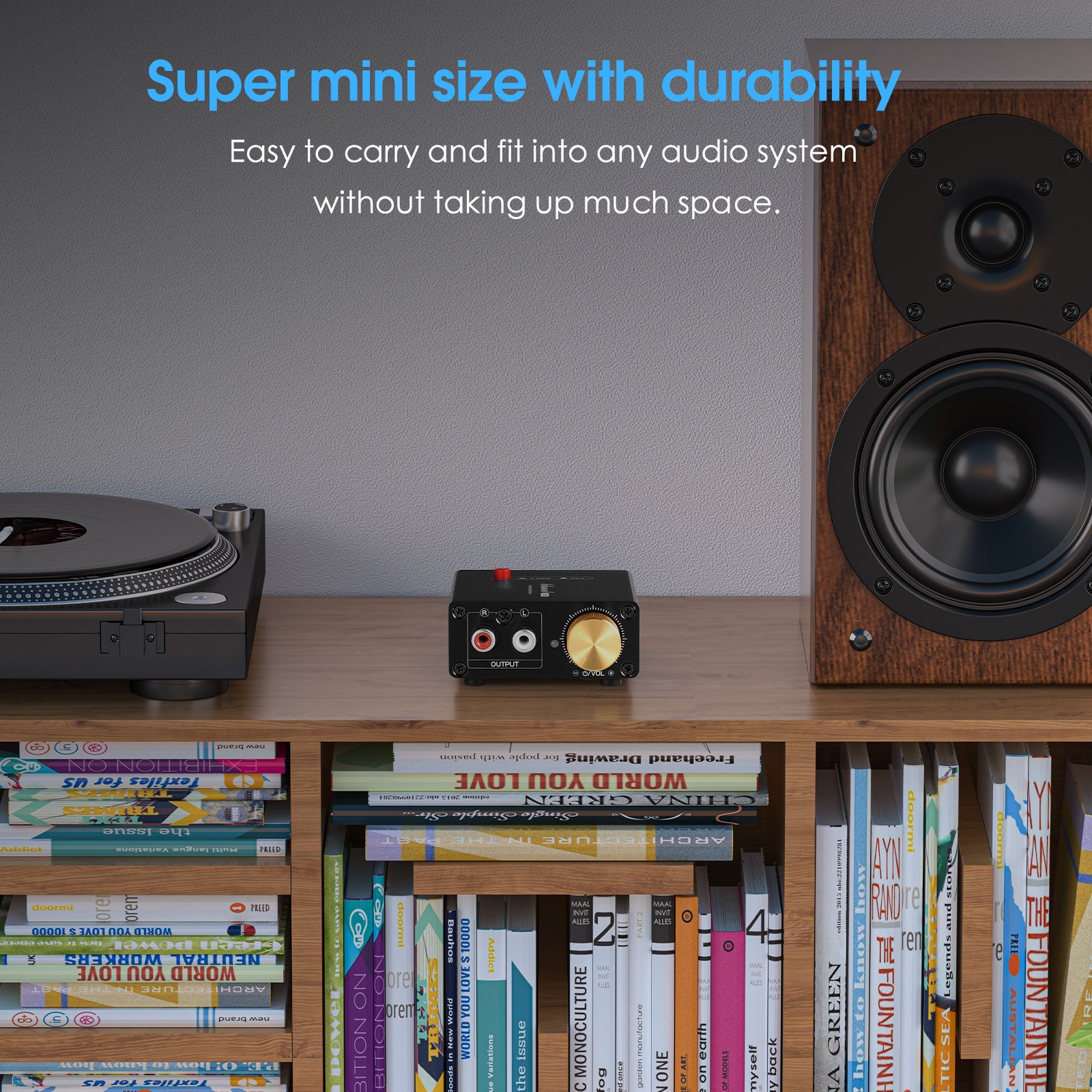

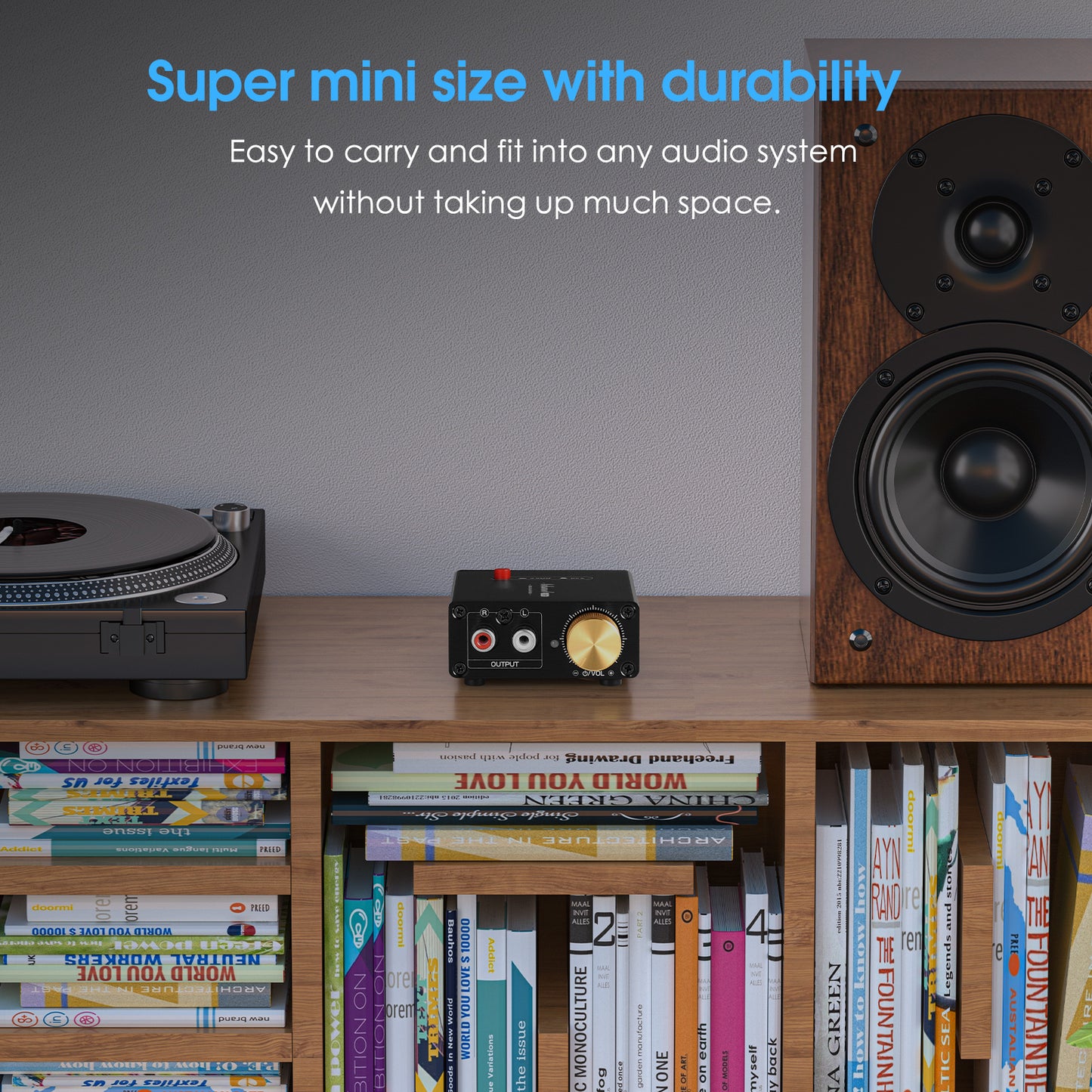

- Super mini size with durability: with a compact size, it is easy to carry and fit into any audio system without taking up much space, perfect for on-the-go use. The all-metal design ensures durability while shielding electronics from electromagnetic interference and reducing noise.
Warm tips:
1.Equipped with USB to DC cable, NOT include power adapter, can use phone charger/power bank to power it.
2.It is not recommended to use computer to power L1 MINI, as it may cause noise interference.
Parameters

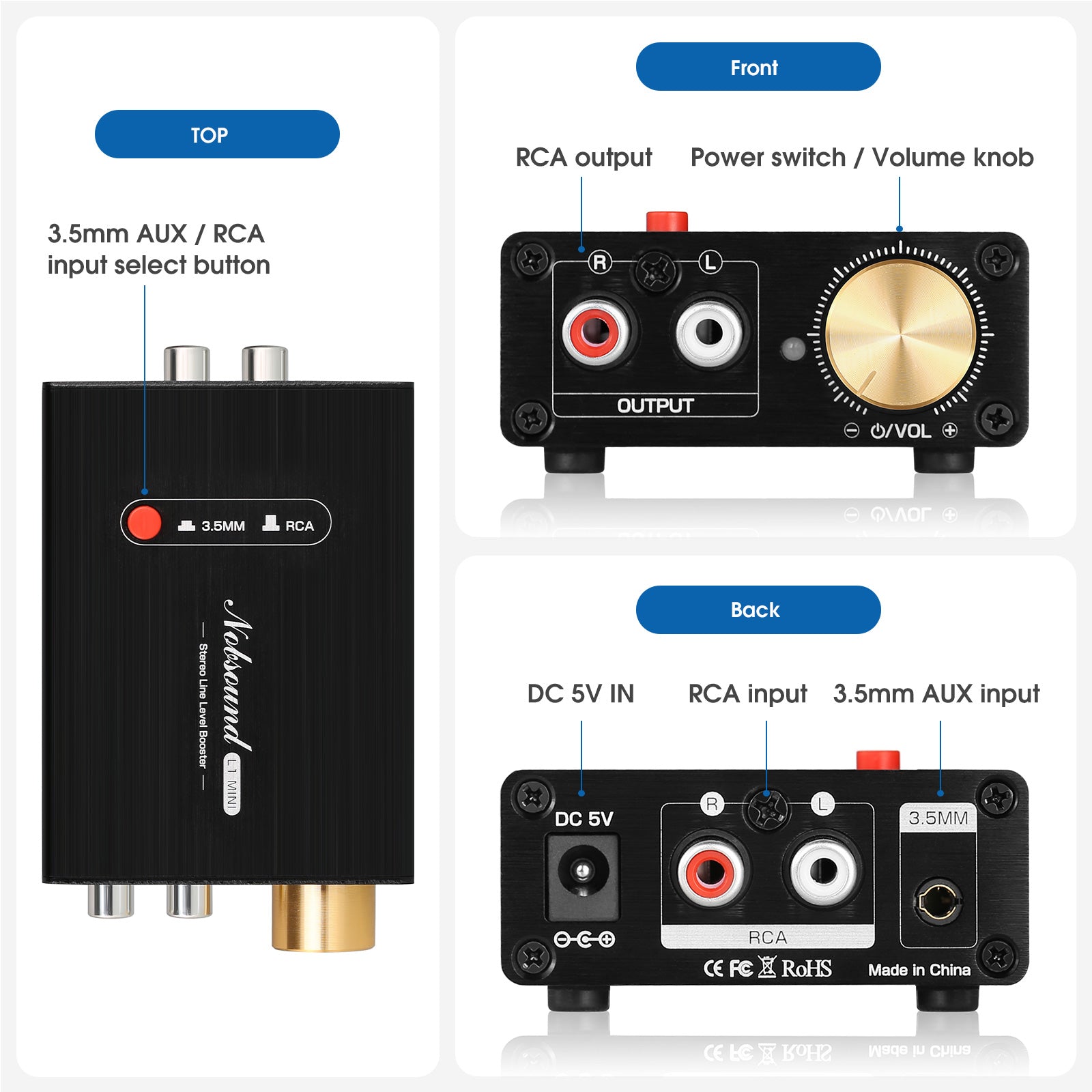

- Audio input: 3.5mm AUX / Stereo RCA
- Audio output: Stereo RCA
- Gain: 10 times, 20dB (adjustable)
- Frequency response: 20Hz-20KHz
- THD: 0.06% Max
- S/N ratio: ＞90dB
- Input sensitivity: 150mW/50KHz at 1KHz
- Max output amplitude: ±12.5V
- Input voltage: DC 5V (≥350mA)
- DC plug size: 5.5*2.5mm
- Working voltage of amplification part: DC 26V
- Dimensions(W*D*H): 65*89*27mm / 2.56*3.50*1.06in
- Package dimensions(W*D*H): 130*80*90mm / 5.12*3.15*3.54in
- Net weight: 141g / 0.31lb
- Package weight: 300g / 0.66lb

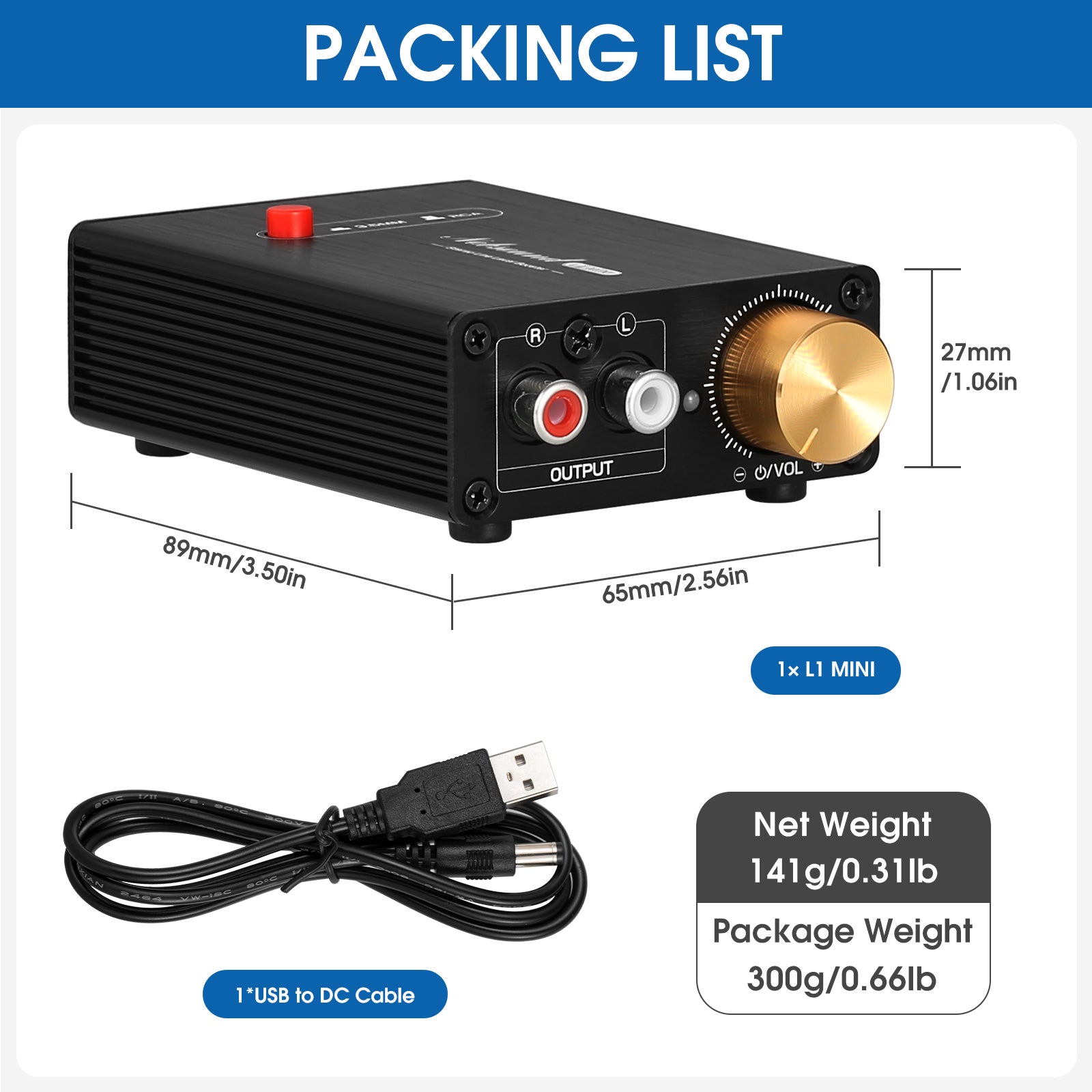

Packing List
- 1*L1 MINI Stereo Line Level Booster
- 1*USB to DC Cable
Who Needs Douk Audio L1 MINI Stereo Line Level Booster?
1. Want to correct the sonic mismatch issues that often cause the output volume of portable players/MP3/computer lower than other home audio devices, resulting in distorted sound performance.
2. Want to enhance the output level of karaoke players or CD/DVD player to transform your stereo music to thrilled sound for party or outdoor events, provide low-noise and high musical accuracy for listening and recording.
3. Want to provide an external way of volume control for any audio source device or stereo amplifier that has no output level or volume adjustment of its own.
2-8 Days Arrival
30-Day Return
2-Year Warranty
You may also like
Douk Audio P1 HiFi Bluetooth 5.0 Vacuum Tube Preamp USB DAC Stereo Headphone Amplifier APTX-HD
Ampapa A1 Mini 5654 Vacuum Tube Preamp Phono/Turntable Amplifier w/Tone Control
- Standard input/output interfaces: with 3.5mm AUX/stereo RCA inputs and stereo RCA outputs, can be compatible with most low-volume audio sources such as ipod, ipad, phone, TV, MP3 player, potable CD player, computer, video game etc., and boost their output to the level needed to drive amplifier or speakers.
- Adjustable gain and voltage boost circuit: with built-in amplification and voltage boost circuit, adjustable gain to match better with different audio sources, while L1 MINI can always work at a high voltage of 26V to provide ±12.5V high output amplitude and max 20dB high gain.
- Unique design and HiFi clear sound: double-side PCB design, NE5532P op amp with pluggable socket design, convenient to upgrade other dual op amps to bring more playability. The high-quality sealed potentiometer ensures a wide frequency range and excellent dynamic response, delivering smooth, warm, and natural sound with ultra-low distortion.
- Versatile application scenarios: perfect for boosting the volume of portable audio devices to match home stereo systems, enhancing karaoke or CD/DVD players for lively parties, and providing external volume control for audio sources lacking adjustments, ideal for mixer or speaker setup, audio recording, party, live stage event etc.
- Super mini size with durability: with a compact size, it is easy to carry and fit into any audio system without taking up much space, perfect for on-the-go use. The all-metal design ensures durability while shielding electronics from electromagnetic interference and reducing noise.
- Audio input: 3.5mm AUX / Stereo RCA
- Audio output: Stereo RCA
- Gain: 10 times, 20dB (adjustable)
- Frequency response: 20Hz-20KHz
- THD: 0.06% Max
- S/N ratio: ＞90dB
- Input sensitivity: 150mW/50KHz at 1KHz
- Max output amplitude: ±12.5V
- Input voltage: DC 5V (≥350mA)
- DC plug size: 5.5*2.5mm
- Working voltage of amplification part: DC 26V
- Dimensions(W*D*H): 65*89*27mm / 2.56*3.50*1.06in
- Package dimensions(W*D*H): 130*80*90mm / 5.12*3.15*3.54in
- Net weight: 141g / 0.31lb
- Package weight: 300g / 0.66lb
- L1 MINI Stereo Line Level Booster ×1
- USB to DC Cable ×1
Customer Reviews
Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
thank you
e

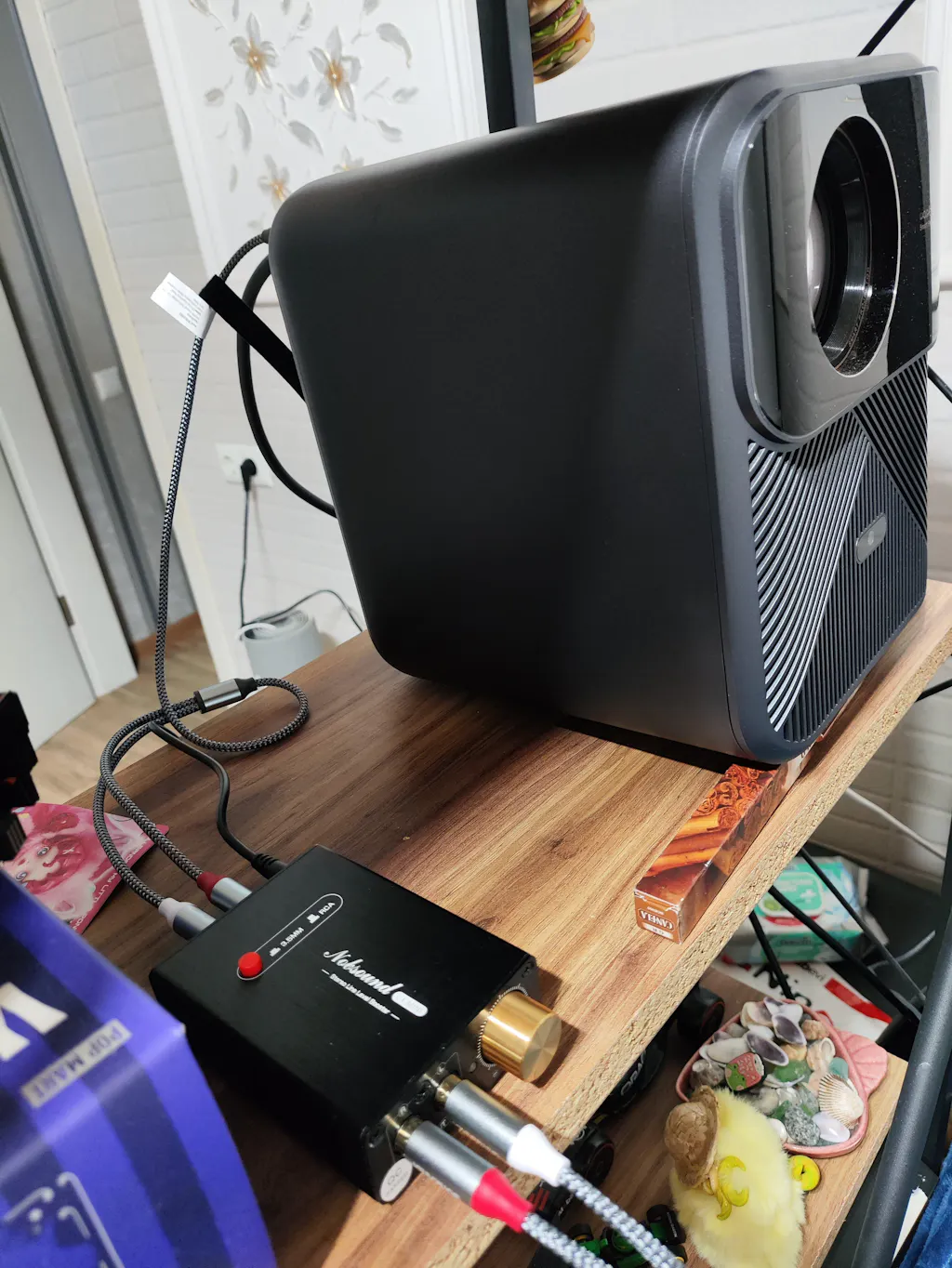

Bought it for my wanbo mozart 1 pro (2025) projector's 3.5 output, which limits volume level. With this preamp, volume level is increased significantly, exactly what I was looking for!
