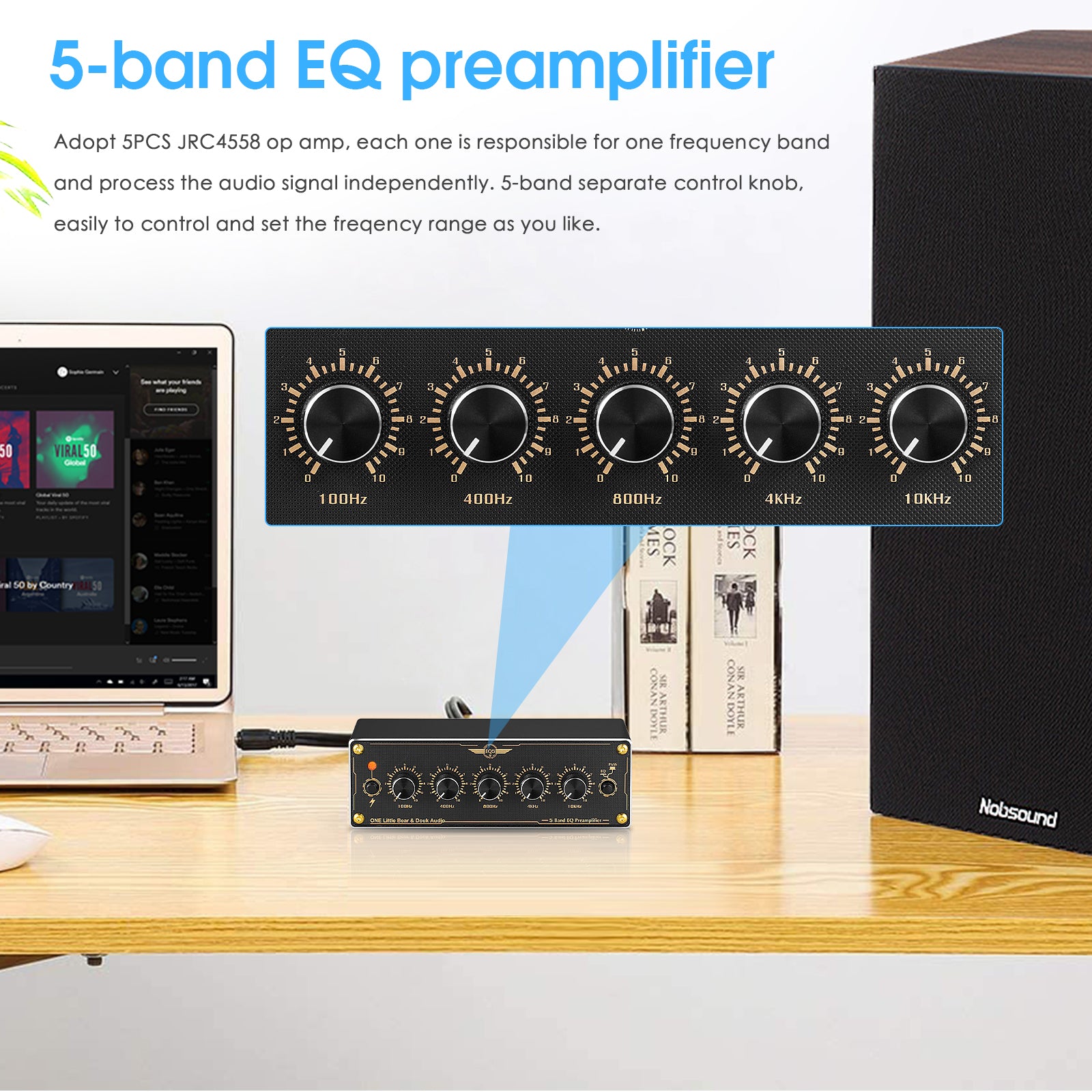

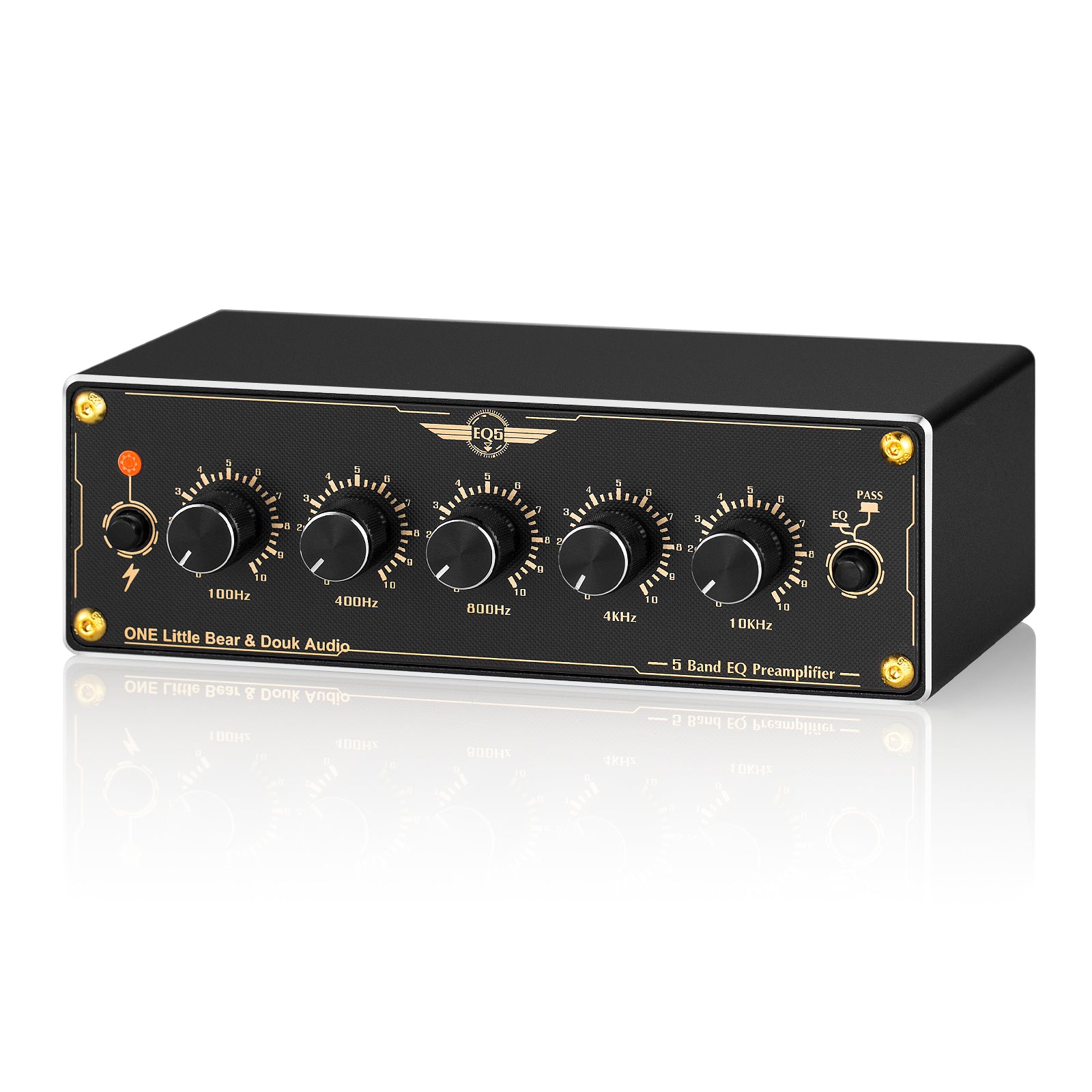

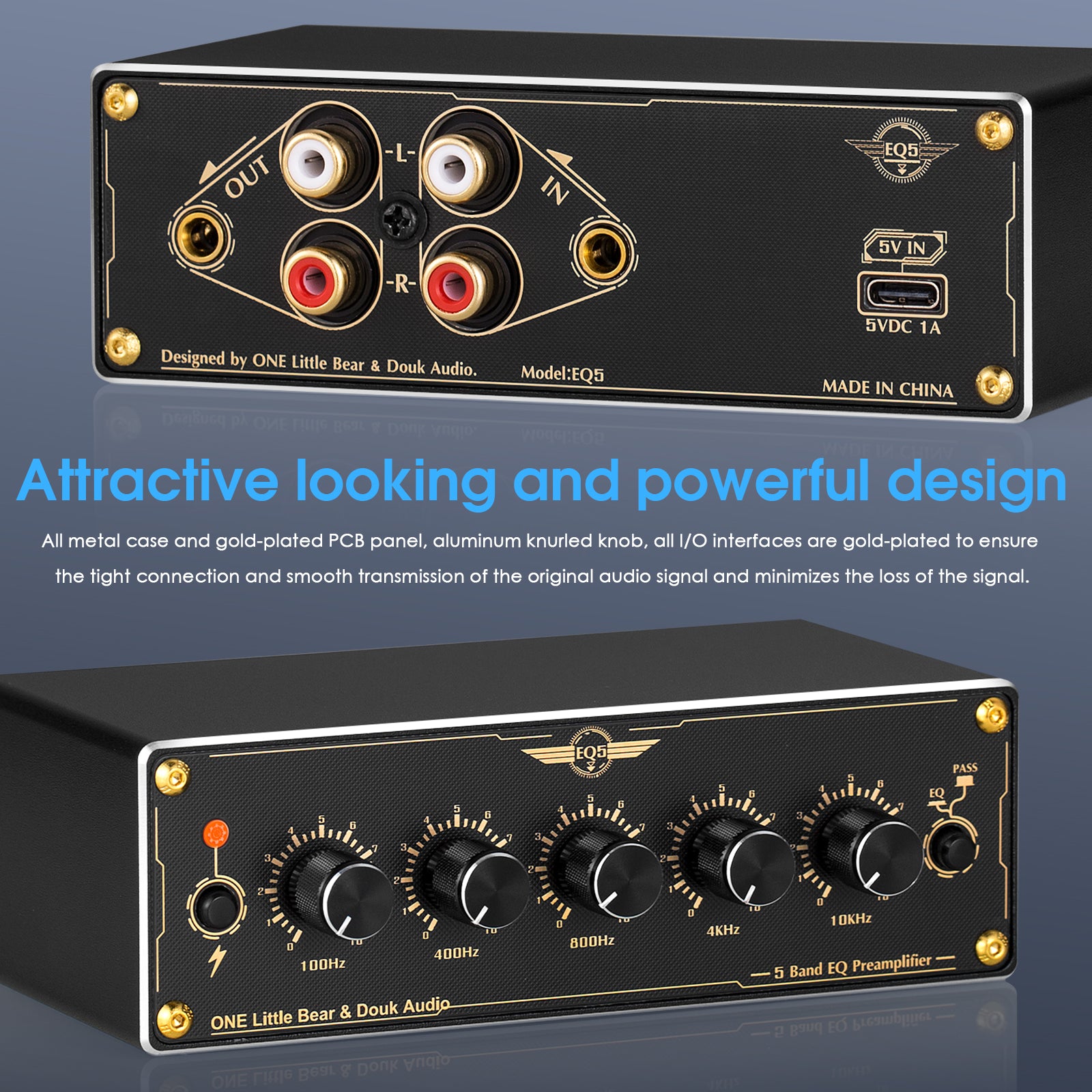

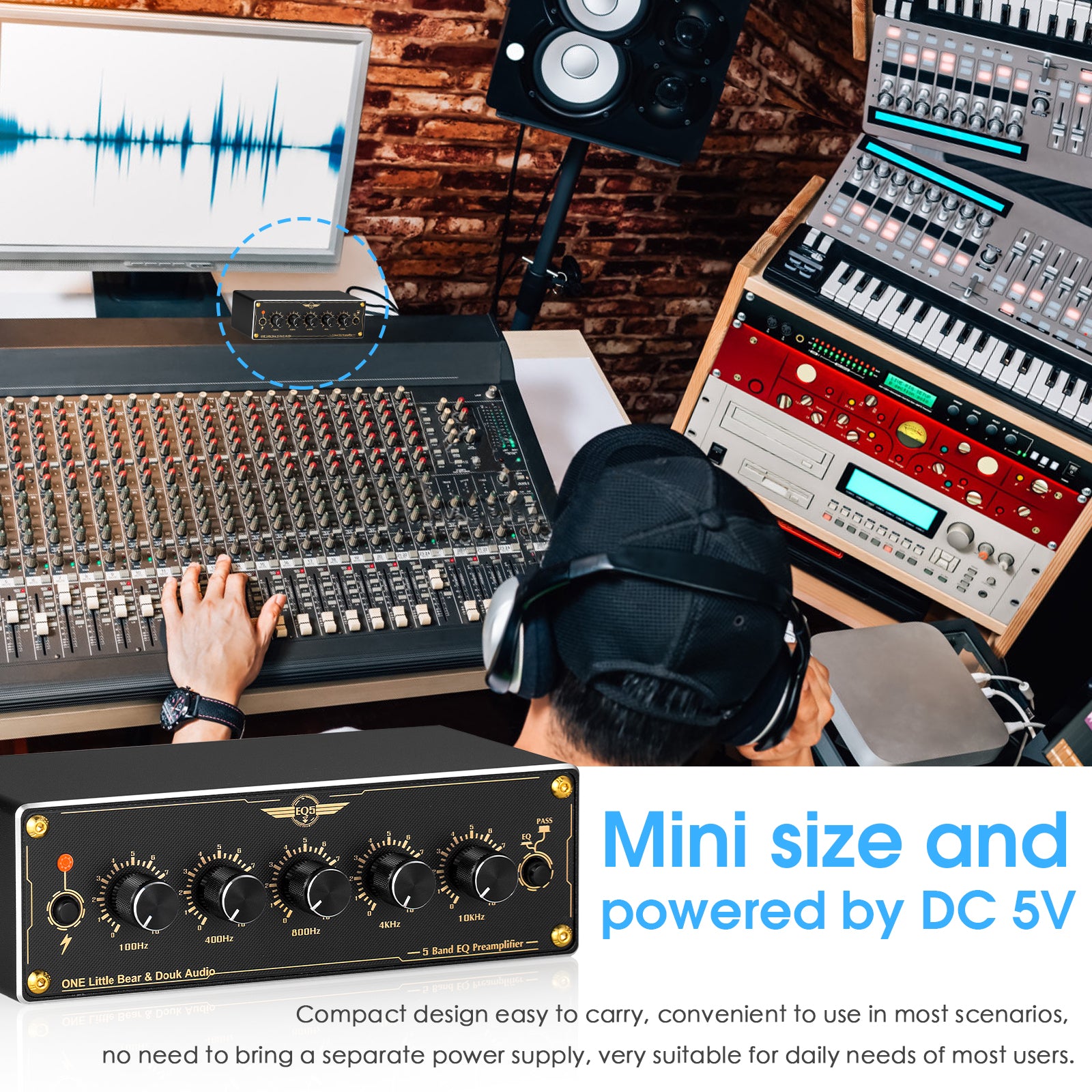

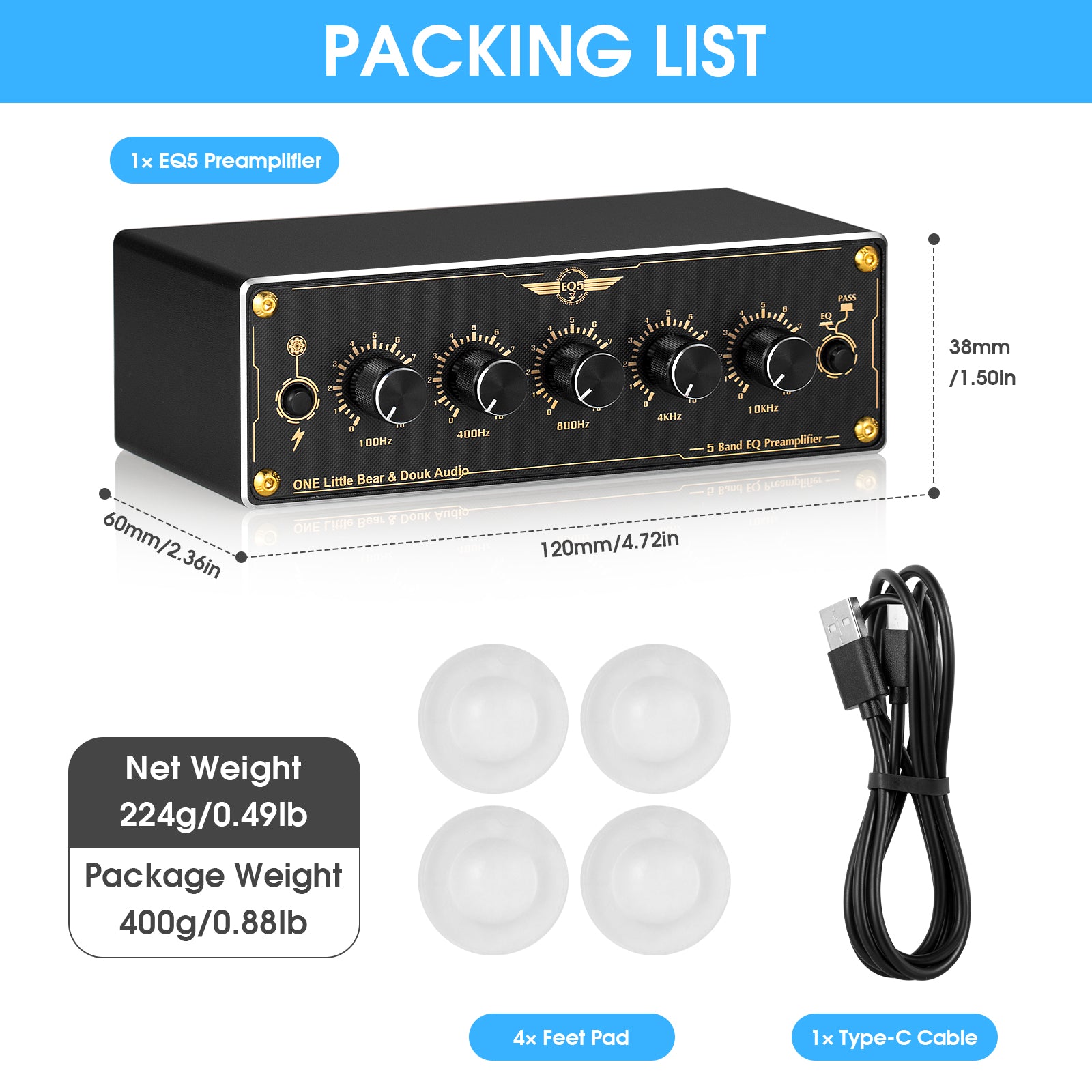

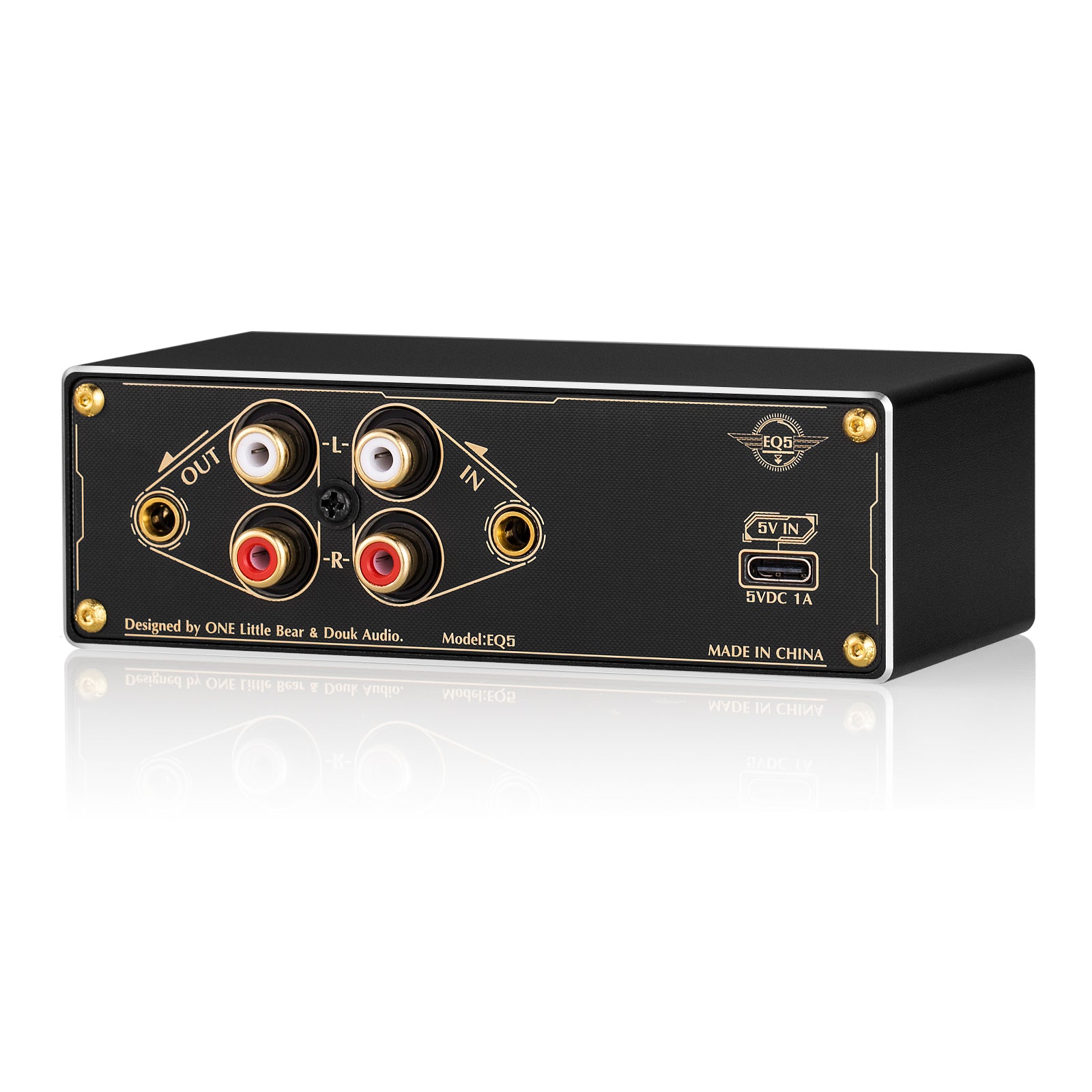

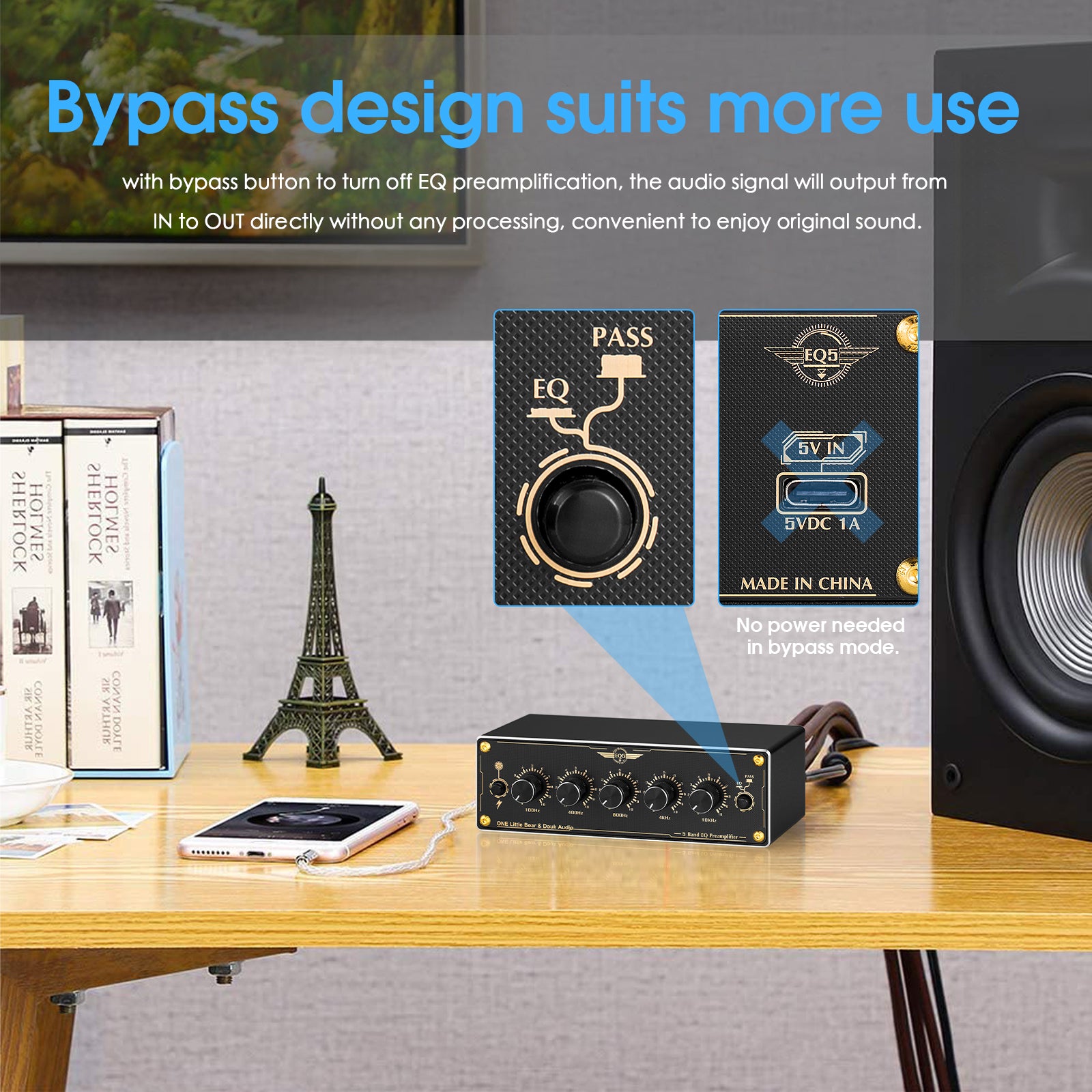

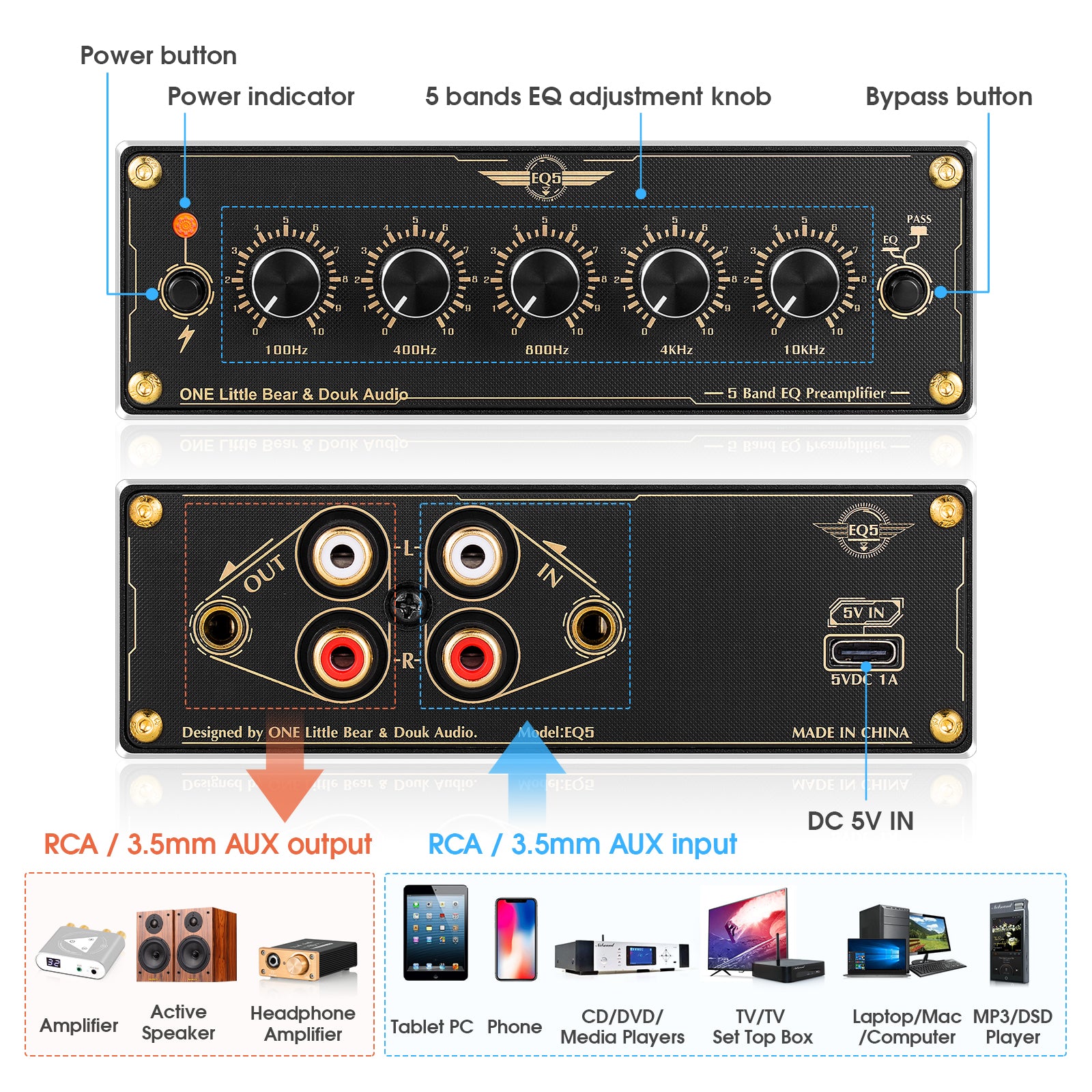

Douk Audio EQ5 Mini 5-Band EQ Vorverstärker Equalizer Stereo Heim-/Auto-Audioprozessor
Douk Audio T7 7-Band-Equalizer, symmetrischer XLR/RCA-Vorverstärker für Heimverstärker
Douk Audio EQ5 Mini 5-Band EQ Vorverstärker Equalizer Stereo Heim-/Auto-Audioprozessor
User Manual of Douk Audio T8PRO
Warm tips:
- Two outputs (RCA / XLR ) can work at the same time.
- When the scale line on frequency knobs points to the middle means this frequency band is neither weakened nor strengthened. When rotating it to its middle position there will be a feeling of pause.
- Default 6H1N-BN tubes, can be changed to the following models: ECC85/ 6N1 / 6AQ8.
- Upgraded 7-band EQ preamp: separate and rich frequency band control (50Hz / 125Hz / 315Hz / 750Hz / 2KHz / 6KHz / 16KHz), T8 can compensate for the defects of speakers and sound field by adjusting 7-band high, middle and low frequencies, and modify various sound sources. The timbre and loudness also can be changed to achieve different sound effects.
- Real balanced XLR preamp: support XLR and RCA inputs and outputs, T8 can reproduce high-quality audio for amplifier or active speaker with excellent separation, resolution, sound field, clean background. Also with a balance control to compensate for the left and right channel of all outputs and prevent the sound field positioning from deviating from the center position.
- HiFi warm & sweet tube sound: adopts classic pluggable Soviet Union 6H1N-BN tube to improve everything detail associated with your music, sounds warm and delicate, full and mellow, dynamic and melodious. Pluggable socket design for tube rolling and sound-shaping, easy to pick from and alter the sound signature to one's preference.
- Advanced design and attractive appearance: adopts electrolytic iron plate with good shielding performance, and the performance is precisely balanced; black aluminum alloy chassis with vintage warm tube lights, looks cool, exquisite and durable, very suitable for the audiophiles who pursue HiFi sound.
- Model: Douk Audio T8PRO
- Audio input: single-ended RCA / balanced XLR
- Audio output: single-ended RCA / balanced XLR
- Frequency response: 20Hz～20KHz(±1dB)
- Frequency band: 50Hz / 125Hz / 315Hz / 750Hz / 2KHz / 6KHz / 16KHz
- RCA input sensitivity: 0.775Vrms
- RCA output level: 1.2Vrms
- BAL input sensitivity: 1.5Vrms
- BAL output level: 2.4Vrms
- THD: 0.01%
- SNR: ≥98dB
- Working voltage: DC12V (≥2A)
- Dimensions(W*D*H): 186*128*38mm / 7.32*5.04*1.50in
- Package dimensions(W*D*H): 340*240*70mm / 13.39*9.45*2.86in
- Net weight: 685g / 1.51lb
- Package weight: 1.1kg / 2.43lb
- T8PRO Preamp ×1
- 6H1N-BN Tube ×2
- DC 12V Power Adapter ×1
- User Manual ×1
