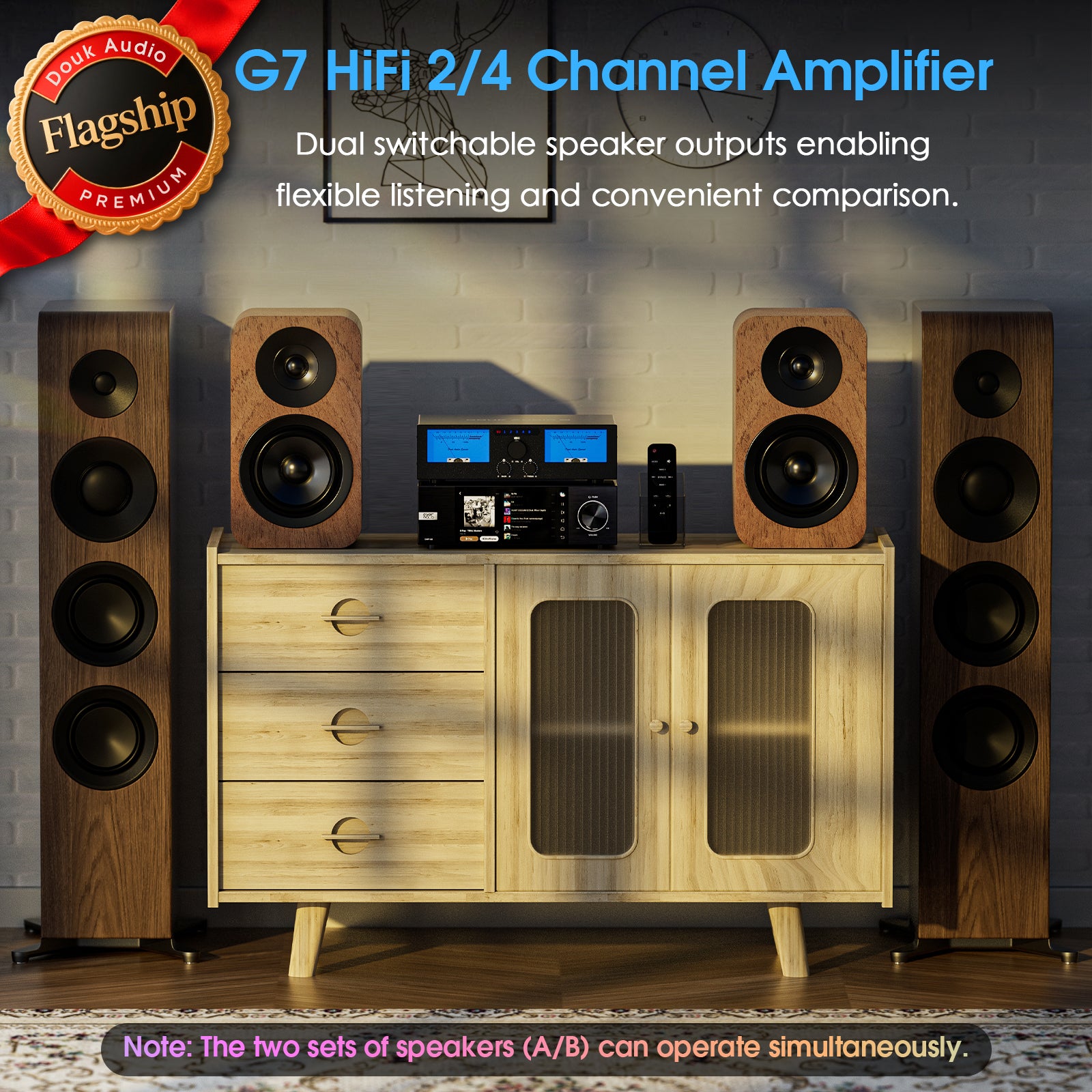

- 2/4 Channel Outputs for Flexible Listening: With 2 sets of switchable or simultaneous speaker outputs for A/B testing or dual-zone setups. Perfect speaker selector/switcher for bookshelf and floor-standing speakers in any audio setup.

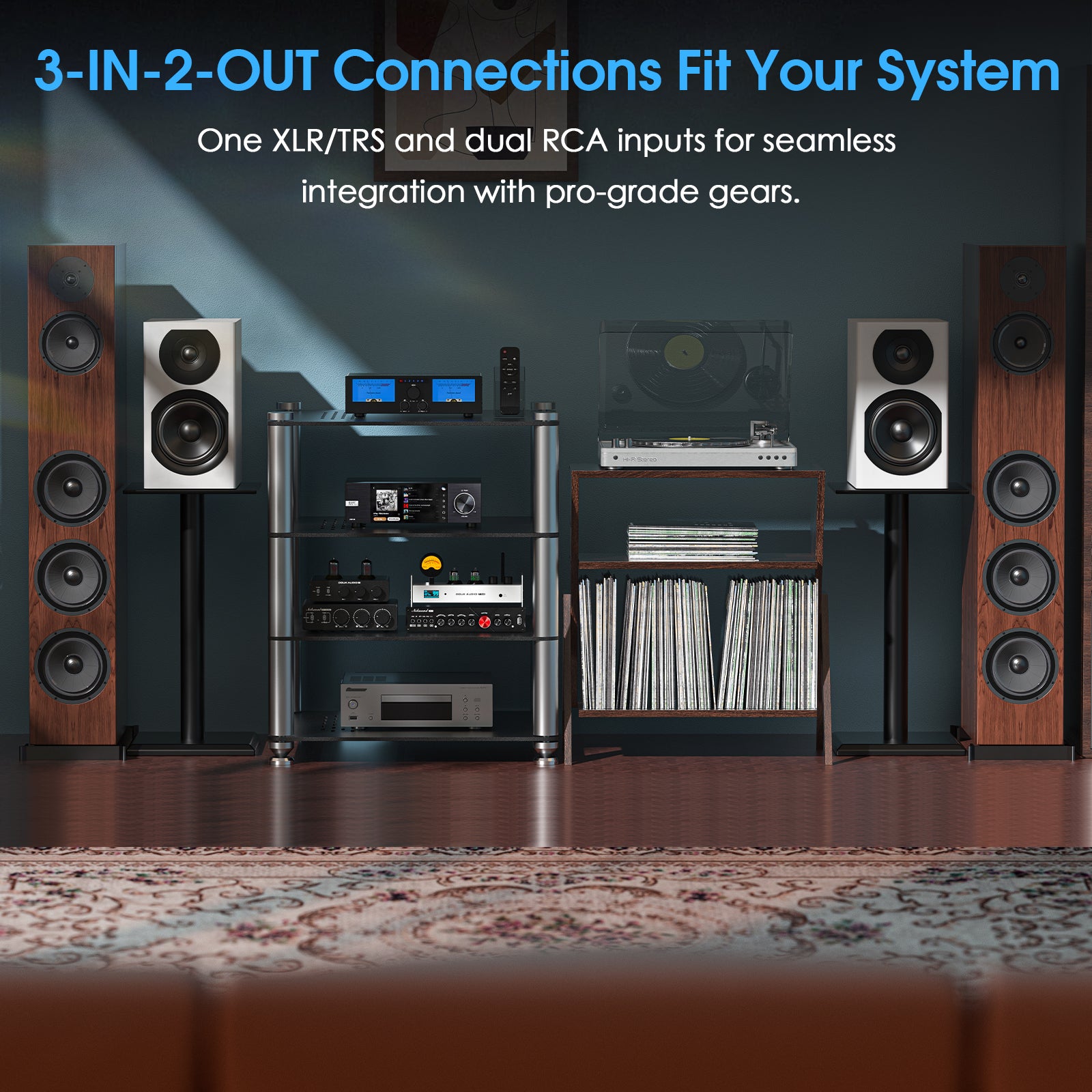

- Versatile Inputs for Seamless Integration: Balanced XLR+TRS combo and dual RCA inputs ensure clean, noise-free audio with pro-grade compatibility, making it the best match for high-performance DACs and streamers like the Eversolo players.
- Flagship Chipset for Optimal Performance: Equipped with 2PCS TPA3255 chips delivering up to 300W×2 or 150W×4 output. Paired with an internal 48V/10A GaN power module for efficient performance, and mastered by NJW1194 IC and OPA1612 op-amps for pristine audio quality.

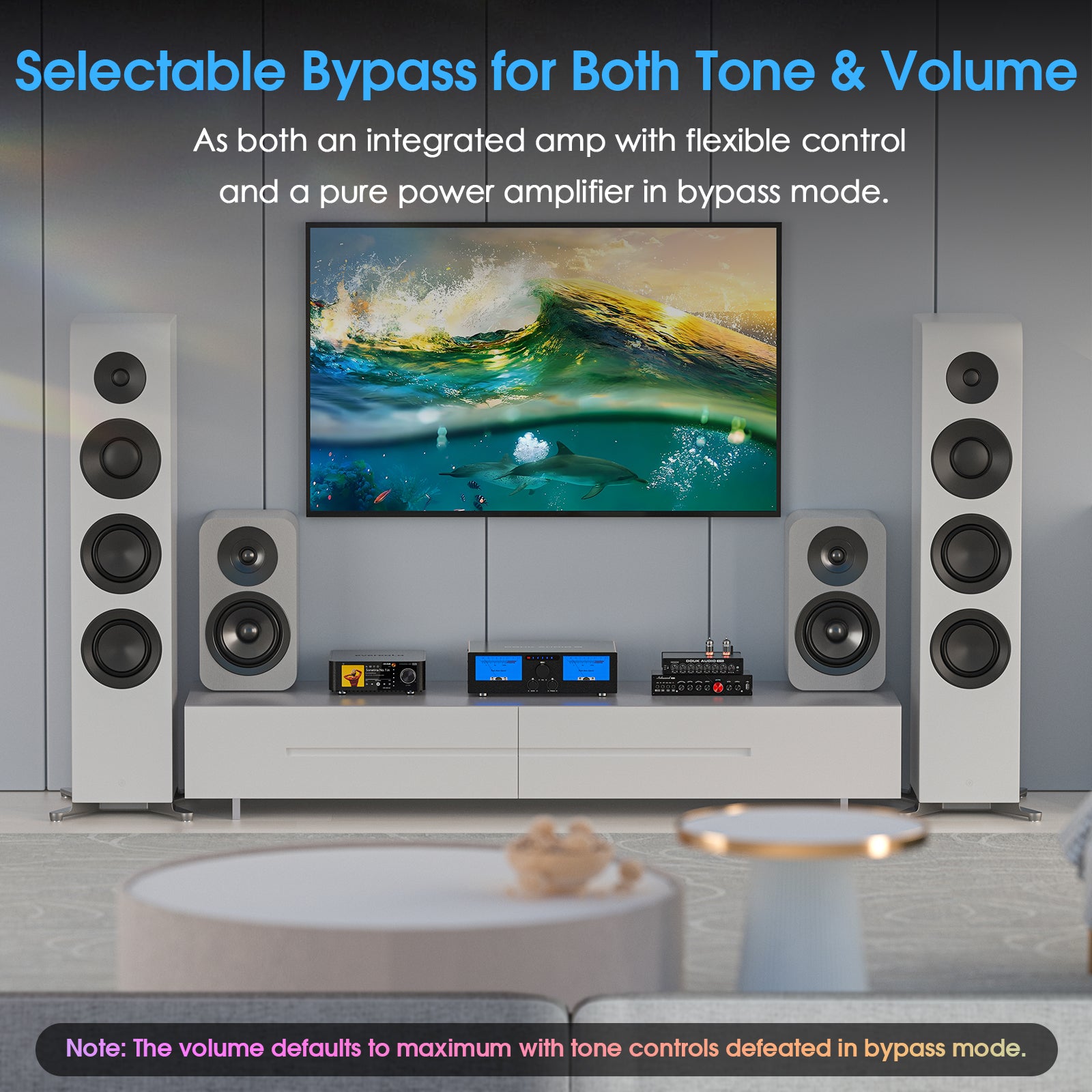

- Tone Control & Pure Bypass Mode: Enjoy ±10dB of bass and treble shaping, also engaging the Bypass Mode disables the tone and volume circuits. Enjoy the ultimate flexibility of an integrated amp or the uncolored, original signal path of a pure power amp for critical listening.

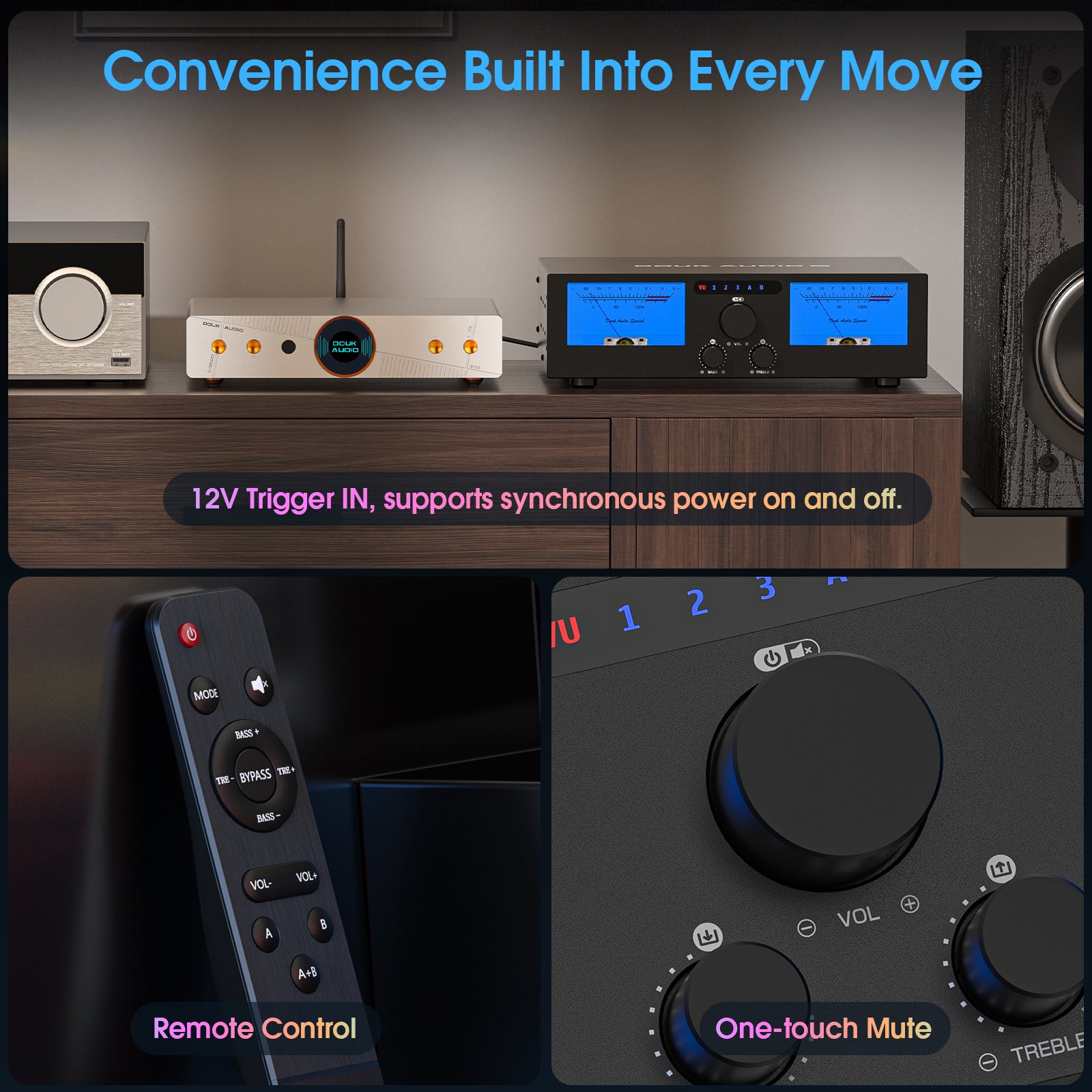

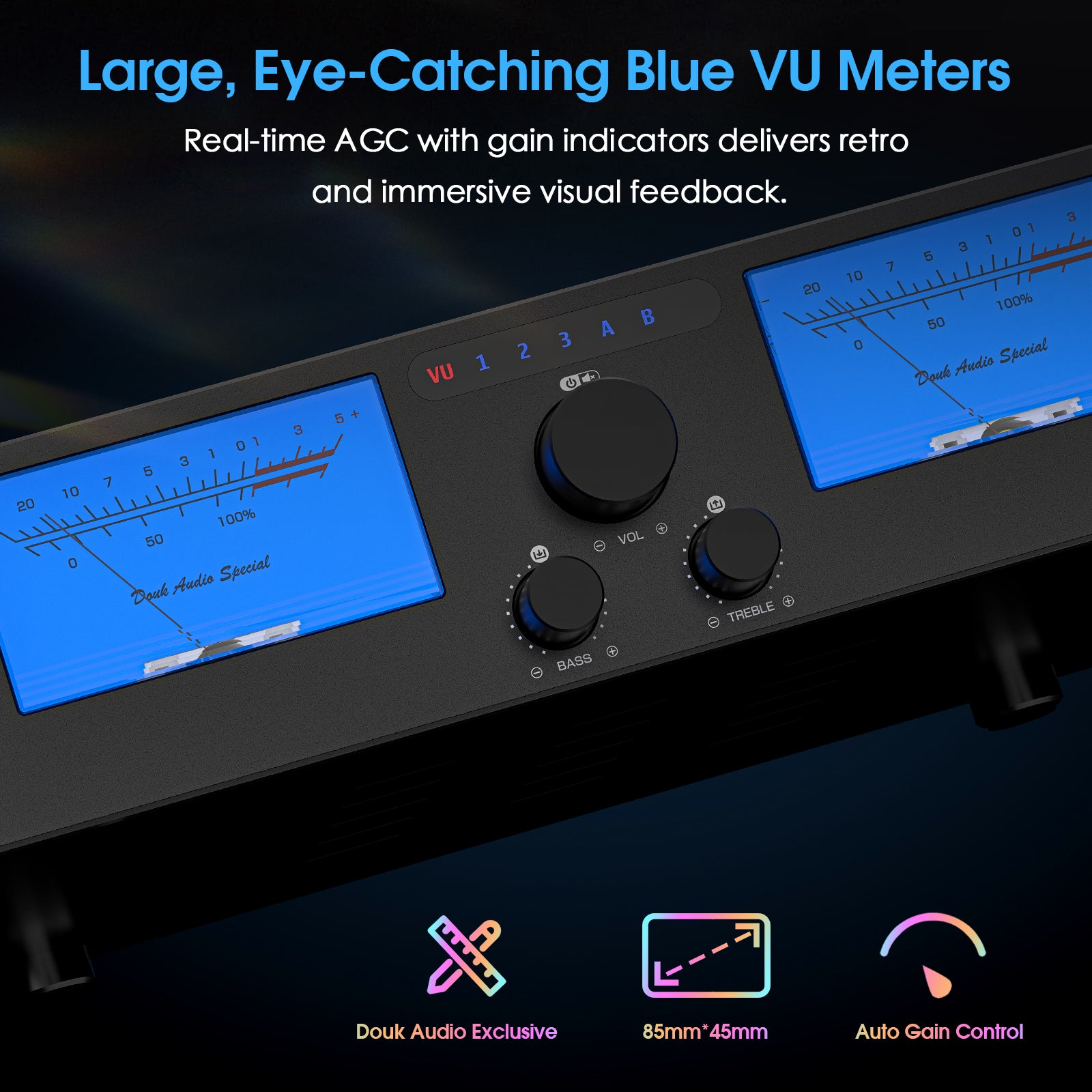

- Iconic VU Meters & Smart Control: The large, retro blue VU meters with AGC provide captivating, real-time visual feedback. Modern convenience is built-in with 12V trigger for synced power, full-function remote, instant mute, creating a fully immersive HiFi audio system.
- Brand: Douk Audio

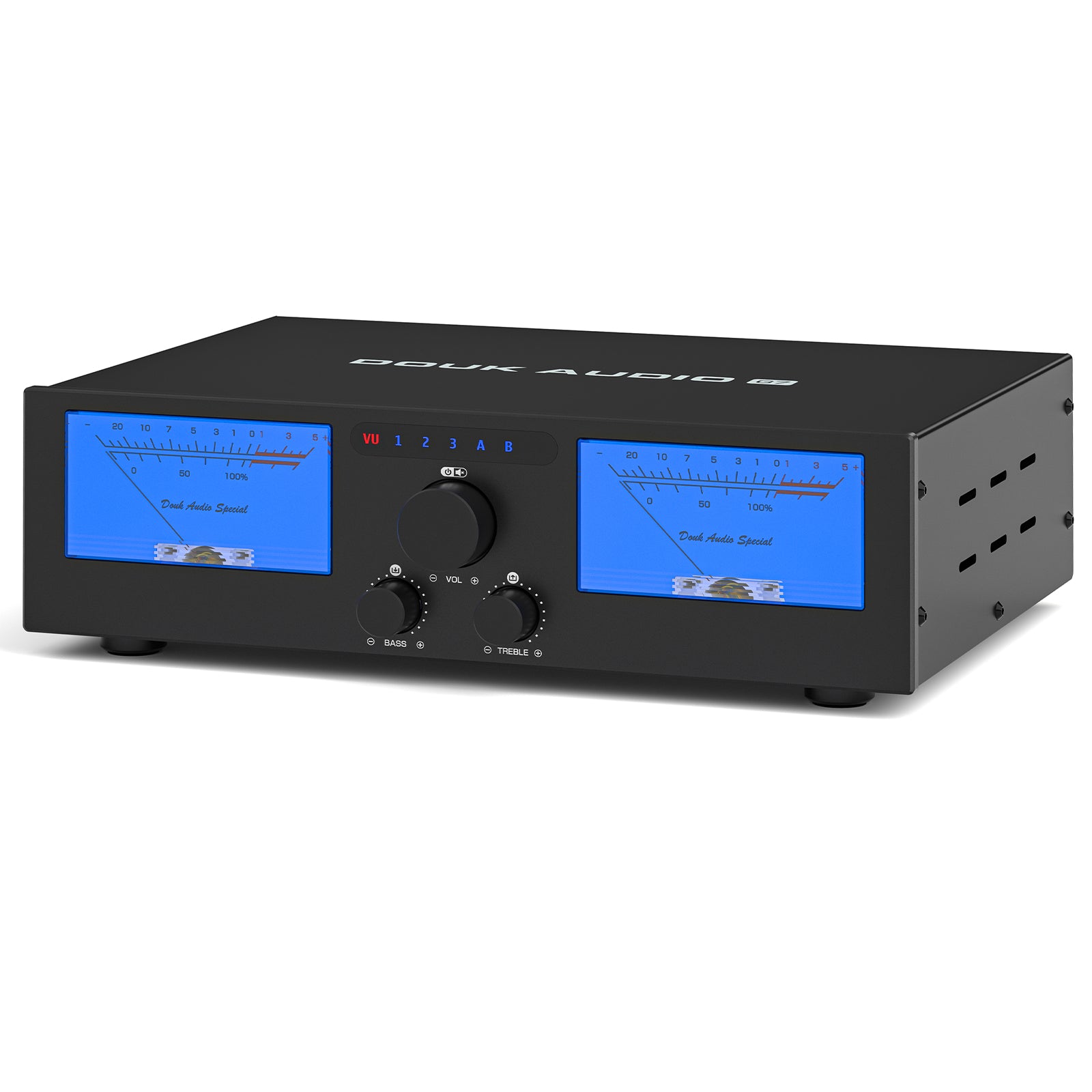

- Model: G7

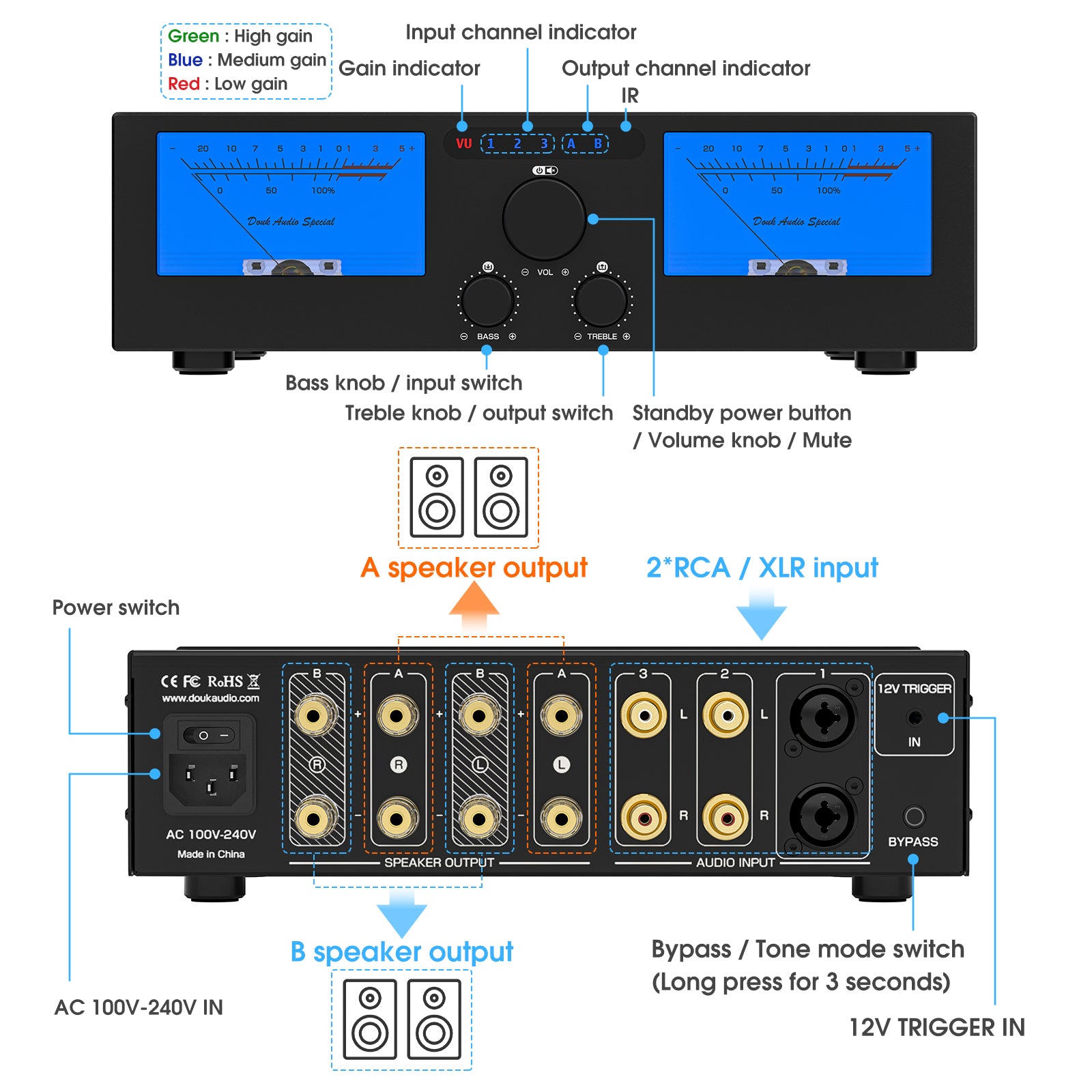

- Audio input: 2 groups of RCA/TRS+XLR combo input
- Audio output: 2 groups of Banana speaker jacks
- Amplifier chips: 2×TPA3255
- Number of channels: Selectable 2-channel / 4-channel
- Max. output power: 300W*2@4Ω (2-channel output); 150W*4@4Ω+4Ω (4-channel output)
- Built-in power supply: DC 48V/10A
- Op-amp chips: 3×OPA1612
- Frequency response: 20Hz-20kHz (±0.5dB)
- THD+N: 0.002%
- SNR: ≥112dB
- Input sensitivity: RCA: 2V; TRS+XLR: 4V
- Matched speaker impedance: 4-8Ω
- Treble/bass range: ±10dB
- VU Meter Dimensions: 85*45.4mm / 3.34*1.79in
- Mute function: Supported
- Bypass function: Supported
- Remote control: Supported
- Input voltage: AC 100-240V
- Dimensions (W*D*H): 275*190*78mm / 10.83*7.48*3.07in
- Package dimensions (W*D*H): 435*265*110mm / 17.12*10.43*4.33in
- Net weight: 3.34kg / 7.36lb
- Package weight: 5kg / 11.02lb
- G7 Amp ×1
- Remote Control ×2
- Power Cord ×1
- User Manual ×1
FAQs
Q: Is volume control available in Bypass Mode?
A: No, in Bypass Mode, both volume and tone control are unavailable. The amplifier's volume is set to maximum by default. Please lower the source volume before switching to this mode to prevent hearing damage and speaker damage.
Q: What should I use the 12V trigger input for?
A: The 12V trigger input is for preamps or DACs with a trigger output to sync power on/off. Please do not use it as an audio input or connect to a power supply.
Q: Are there any specific requirements for the speakers connected to the A and B channels?
A: It is recommended to use speakers of 4-8Ω with matching impedance for each channel. For example, use two 4Ω speakers for channel A output and two 8Ω speakers for channel B output.
Q: Does the remote control include batteries?
A: For safer and faster delivery, the remote control may not include batteries (AAA*2). Please prepare the batteries yourself.
Q: Can the brightness and color of the VU meter be adjusted?
A: No, the brightness and color of the VU meter are fixed and cannot be adjusted.
Powerful, flexible, and visually stunning
Paired with a 12V trigger, remote control, and instant mute, the G7 is ultimate choice for all audiophiles crafting their dream audio system.
