User Manual of Douk Audio ST-01 PRO
Warm tips:
In addition to retaining all the original functions, ST-01 PRO is the latest upgraded version of ST-01:
- ST-01 PRO supports U-disk input to play lossless formats music.
- Add sensitivity adjustment of VU meter on its bottom, easy to set and match better with different input signals.
- Add three decorative golden circles around tubes and VU meter, looks more exquisite and luxury.
- Unique and amazing combination: integrated ST-01 PRO amplifier with VU meter into whole in such a mini size, the pointer dancing in the warm light with strong vintage feelings when enjoy HiFi music, dynamically decorates the audio system space.
- HiFi clear sound with tone control: resonable circuit and concise wiring, adopts vacuum tubes to soften the sound and filter out the digital feelings, sounds warm and sweet without noise. Also with treble and bass knobs to adjust one's own preferable sound styles, presents HiFi music with rousing highs and deep lows.
- Strong output power and special AUX output: use TI's classic power amp IC, each channel can output 100W(4Ω) and easily to drive all 3-8Ω passive speakers, adds 3.5mm AUX output easy to connect another amplifier or active speaker / subwoofer to build multiple channel system and enjoy wonderful home theater experience.
- With multiple digital audio inputs: Bluetooth 5.0 / USB / Coaxial / Optical / stereo RCA, compatible with most audio device such as phones, computers, tablets, TVs, TV, CD players etc. The perfect combination of DAC and amplifier, very suitale for audiophiles who have various audio devices.
- Practical functions to simplify use: with full-function remote control, all settings can be achieved from the distance; with input selection and indicators, clearly to show the working status in real time; aluminum alloy case is specially designed, cool and unique to decorate your desktop space.
- Brand: Douk Audio
- Model: ST-01 PRO
- Audio input: Bluetooth / USB (PC-USB) / Coaxial / Optical / RCA / U-disk
- Audio output: Banana speaker jacks / 3.5mm AUX
- Max output power: 100W+100W (4Ω)
- Matched impedance: 3-8Ω
- Sampling rate supported:
USB input: 96KHz/24Bit
Bluetooth input: 48KHz/24Bit
COAX/OPT inputs: 192KHz/24Bit - Supported formats of U-disk: MP3 / WAV / WMA / FLAC / APE
- Max capacity of U-disk: 64G
- Treble / Bass adjustment range: ±6dB
- System PC-USB supported: XP/W7/W8/W10/MAC/ Linux
- Frequency response: 20Hz-20kHz(±1dB)
- S/N ratio: ≥98dB
- THD: 0.07%
- Working voltage: DC 18-30V
- Dimensions(W*D*H): 115*98*54mm / 4.53*3.86*2.13in
- Package dimensions(W*D*H): 295*225*85mm / 11.61*8.56*3.35in
- Net weight(ST-01 PRO): 661g / 1.46lb
- Package weight: 1.4kg / 3.09lb
- ST-01 PRO Amplifier ×1
- DC 24V Power Adapter（optional） ×1
- Remote Control (without 2*AAA batteries) ×1
- USB Cable ×1
- Bluetooth Antenna ×1
- User Manual ×1
@cheapaudioman
Are they Even trying? Douk Audio ST-01-Pro vs Aiyima T9
@DIY AUDIO
Douk Audio ST-01 PRO Mini Valve Amplifier - REVIEWED and TESTED. 200W MAX POWER
@Emptor Audio
Douk Audio ST-01 PRO Review | All-In-One Bliss

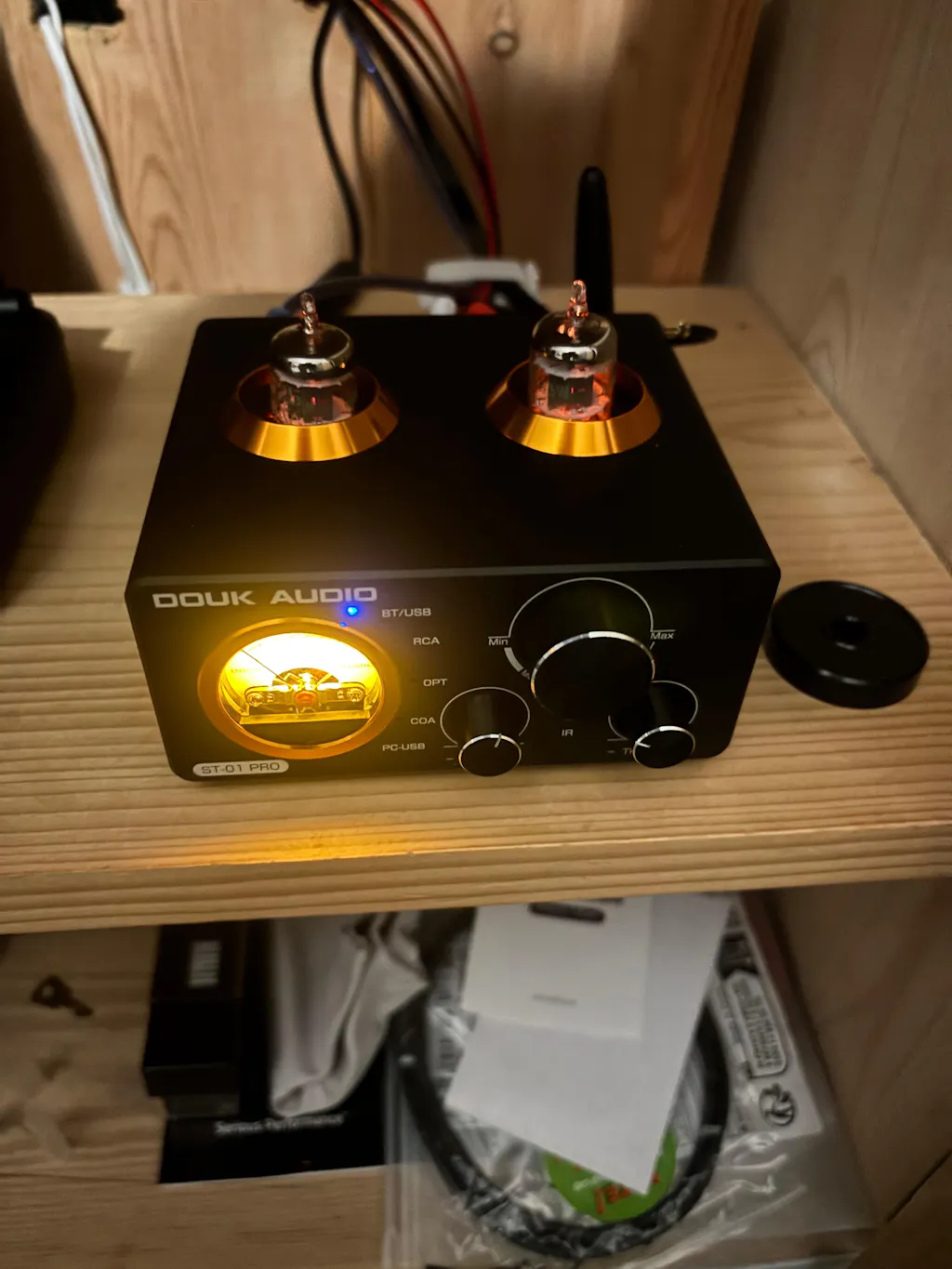

I finally managed to get my little ST-01 Pro set up today and to say I’m impressed would be an understatement. This little thing packs a punch.
I upgraded the power supply to the 24V 6A power pack. I did this to give the amp more headroom at the top end and it works a treat. I could only find one 30V 5A power supply, and the circuit information was on a sticker stuck to the top of the power brick, so I decided to stick with the 24V 6A that Douk sells.

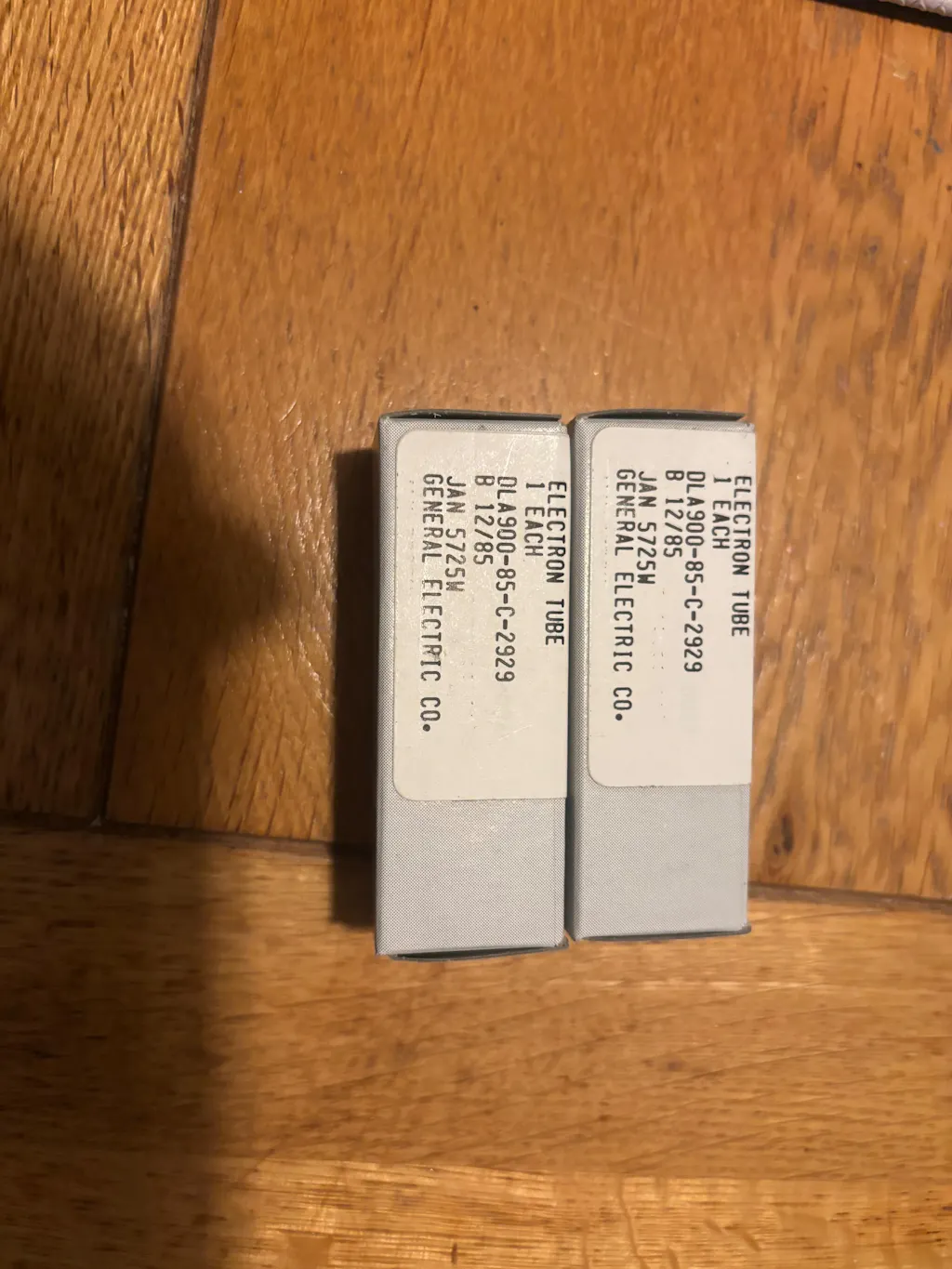

My ST-01 Pro came with the Jan 5725W General Electric Co tubes, not the 6K ones. I don't know if this is new stock or a mistake, but I’m not complaining. So with the upgraded power supply and tubes, my ST-01 Pro sounds clear, even at very low volume. I have the ST-01 Pro powering 10-70W KEF speakers and they seem to go very well together, with a wide deep sound stage.
All together, I’m very happy I took the time to look up the ST-01 Pro and decided to pull the trigger. When I’m in the market for more Hi-Fi products, I’ll definitely be coming to Douk Audio first.
Rating:
Looks: 10/10 (the meter and LED lighting under the tubes look awesome
Functions: 10/10 (RCA, Bluetooth, USB, optical, coaxial USB sound very good)
Value: 10/10 (Altogether I paid about £96, including the power supply)

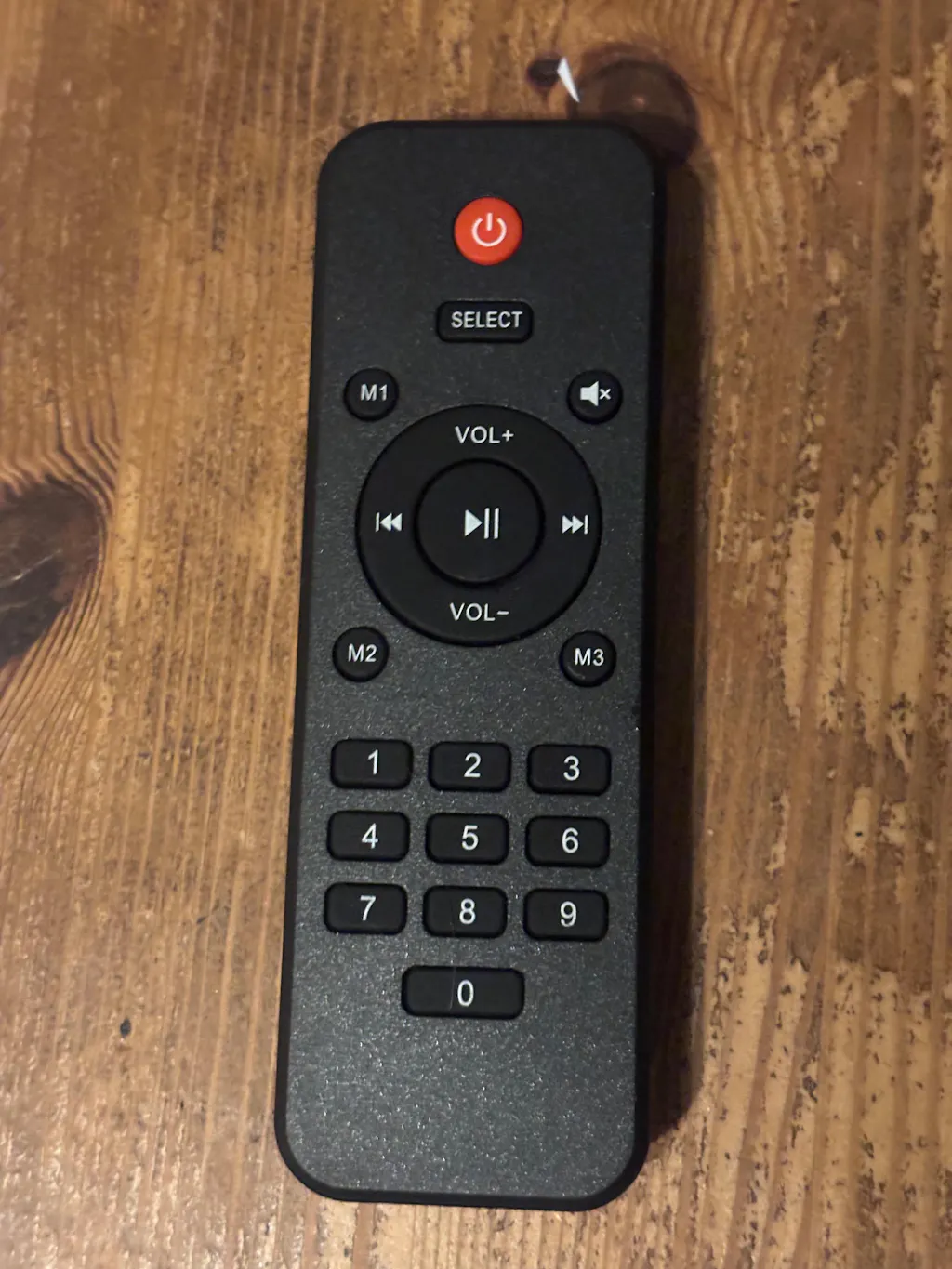

Extras: 10/10 (love the little remote and the & the GE tubes are a great upgrade)
Power: 9/10 (I’m getting about 45W per channel with the power supply I bought, using 6 ohm speakers)
Sound Quality: 10/10 ( I haven't experienced any clipping at high volume.
Small with Power!
Great AMP/DAC combo. Perfect for my studio
Brilliant. Great concept, well made, retro look fantastic. It’s driving two large Fifty year old KEF transmission speakers. I could not recommend more highly. I have the retro model and two of the basic. Setting my grandson up with his own bedroom sound system. I cannot see any downsides. Physical material well made, the wifi antenna needs to lock it screws in but is moveable.
Once upon a time I was on the sales side of the A/V industry. Because of that I got to hear some of the best stuff money can buy. And I'll tell you without hesitation that this little amplifier very much impresses me. Very nice, very natural, articulated sound quality. Tight bass. Wonderful imagery. Great features and functionality. Don't hesitate for a second to pick one up for yourself. Unless: You happen to have no common sense (or are simply an idiot in general) and try to overdrive this little amp into oblivion and then complain about distortion. That's Not what the ST-01 Pro is about. Be reasonable with it and you will be beyond happy with the sound quality. I paired it with a nice $80 set of bookshelf speakers and the results are nothing short of spectacular--especially for the price point.. I would be beyond foolish to hook it up to my massive Klipsch towers to try to shake the house with them. Common Sense must prevail. Please feel free to ignore any negative reviews of this great little amplifier. You'll be glad you did.
