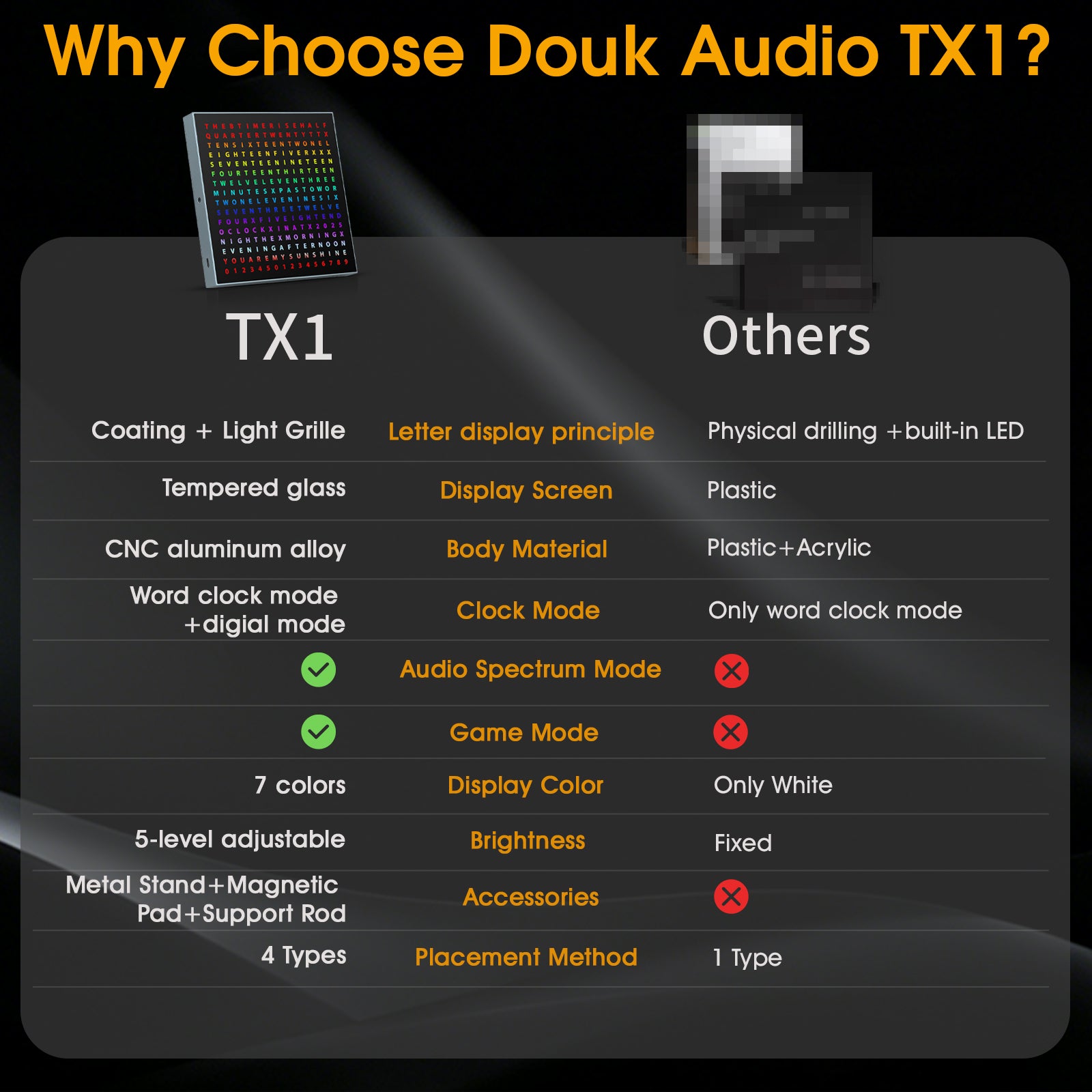

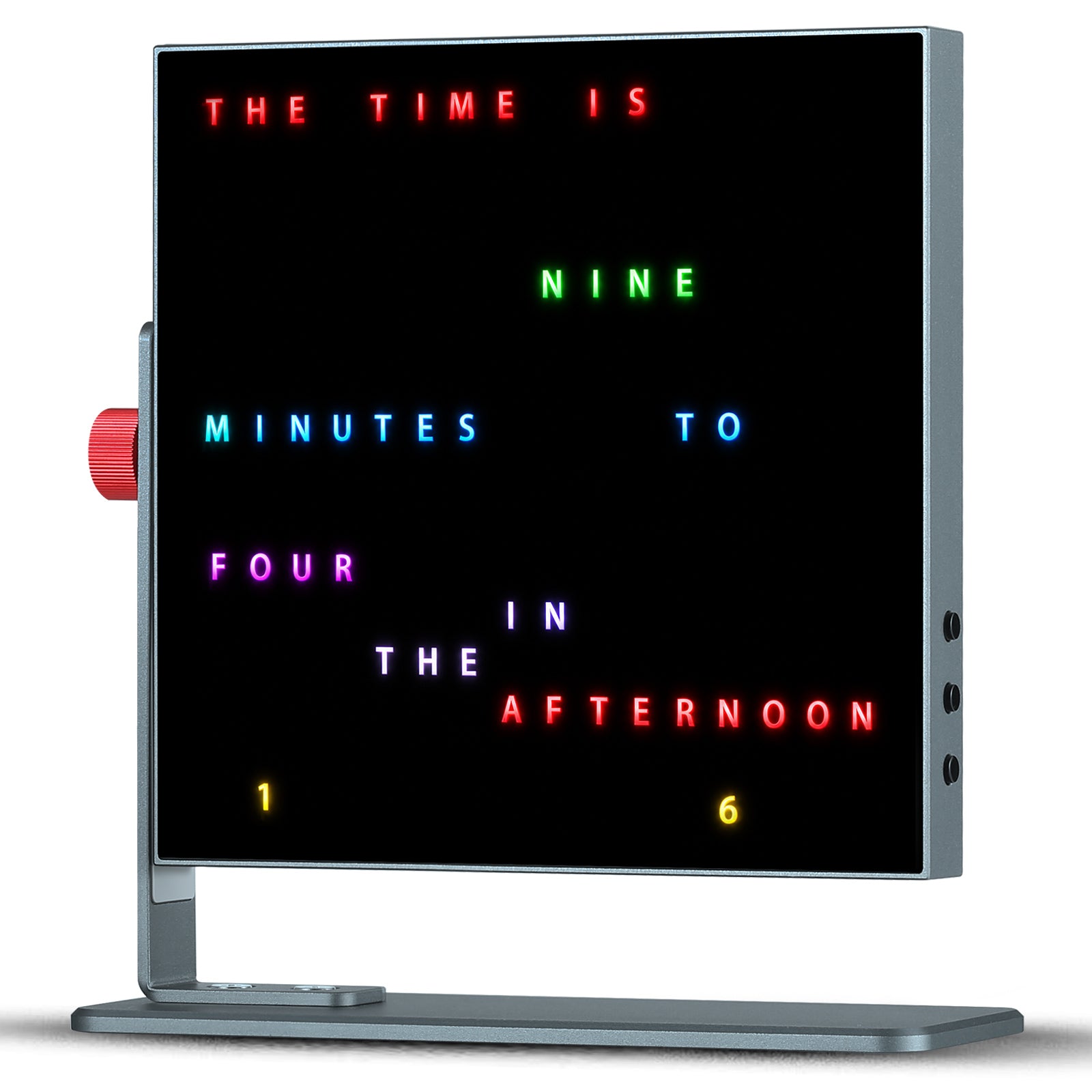

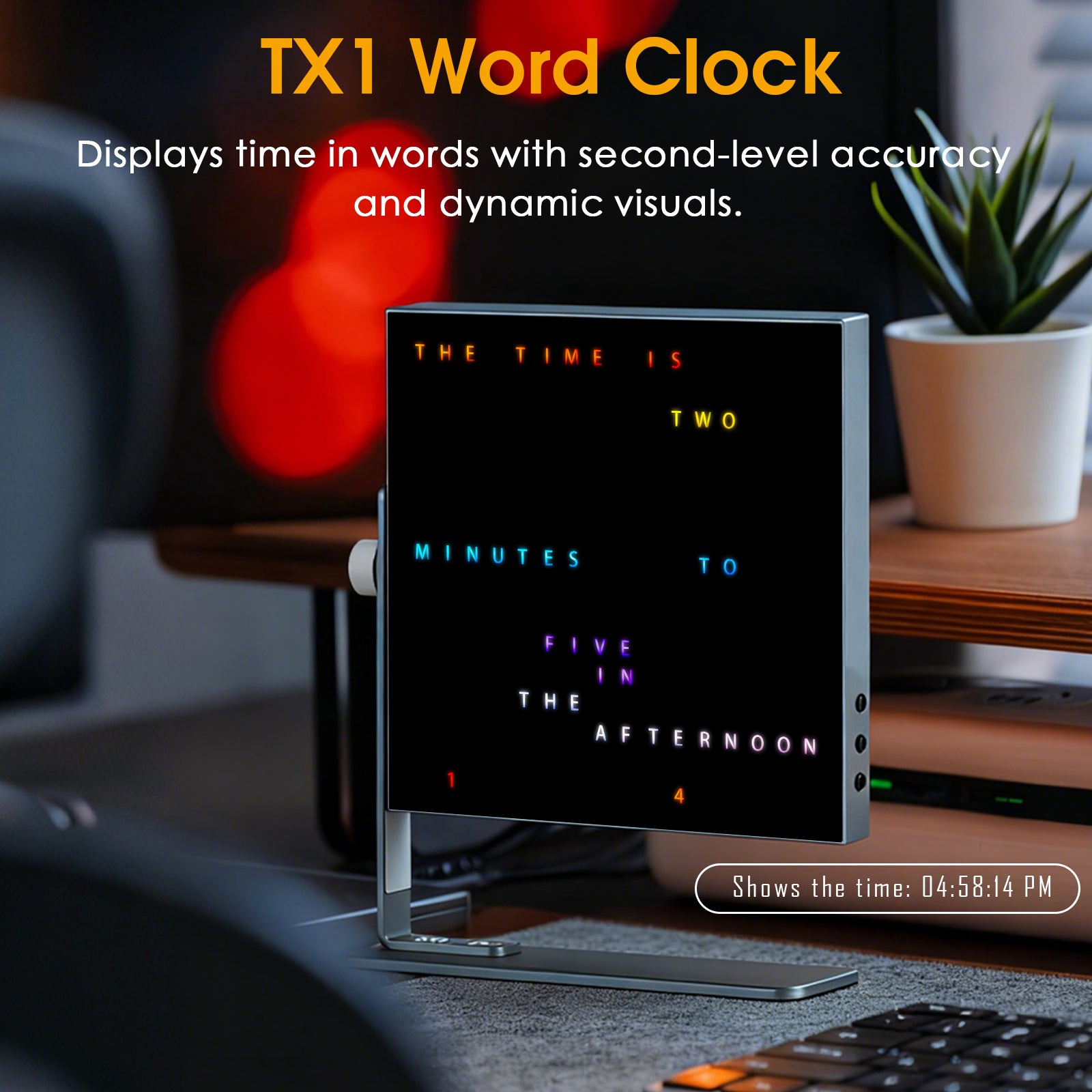

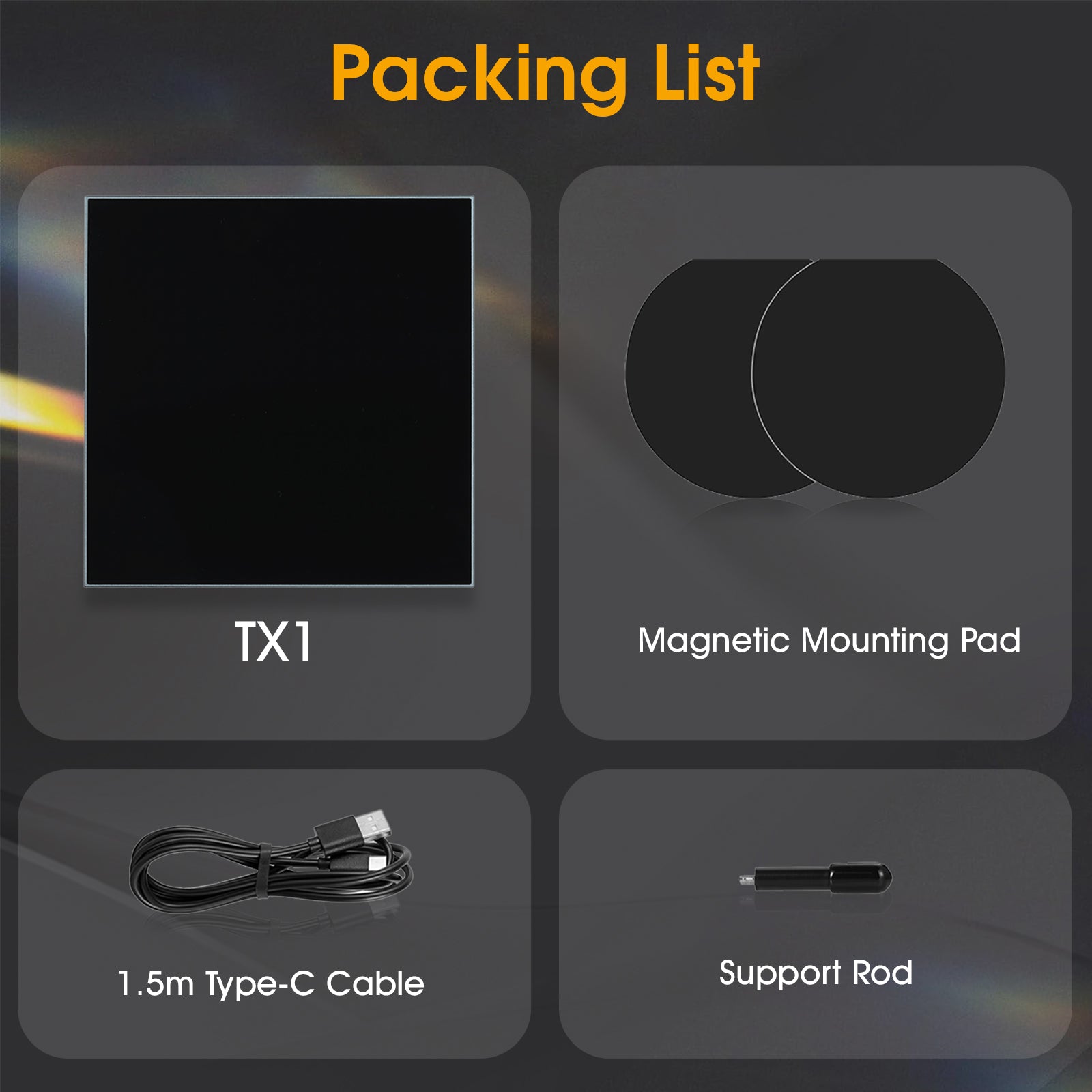

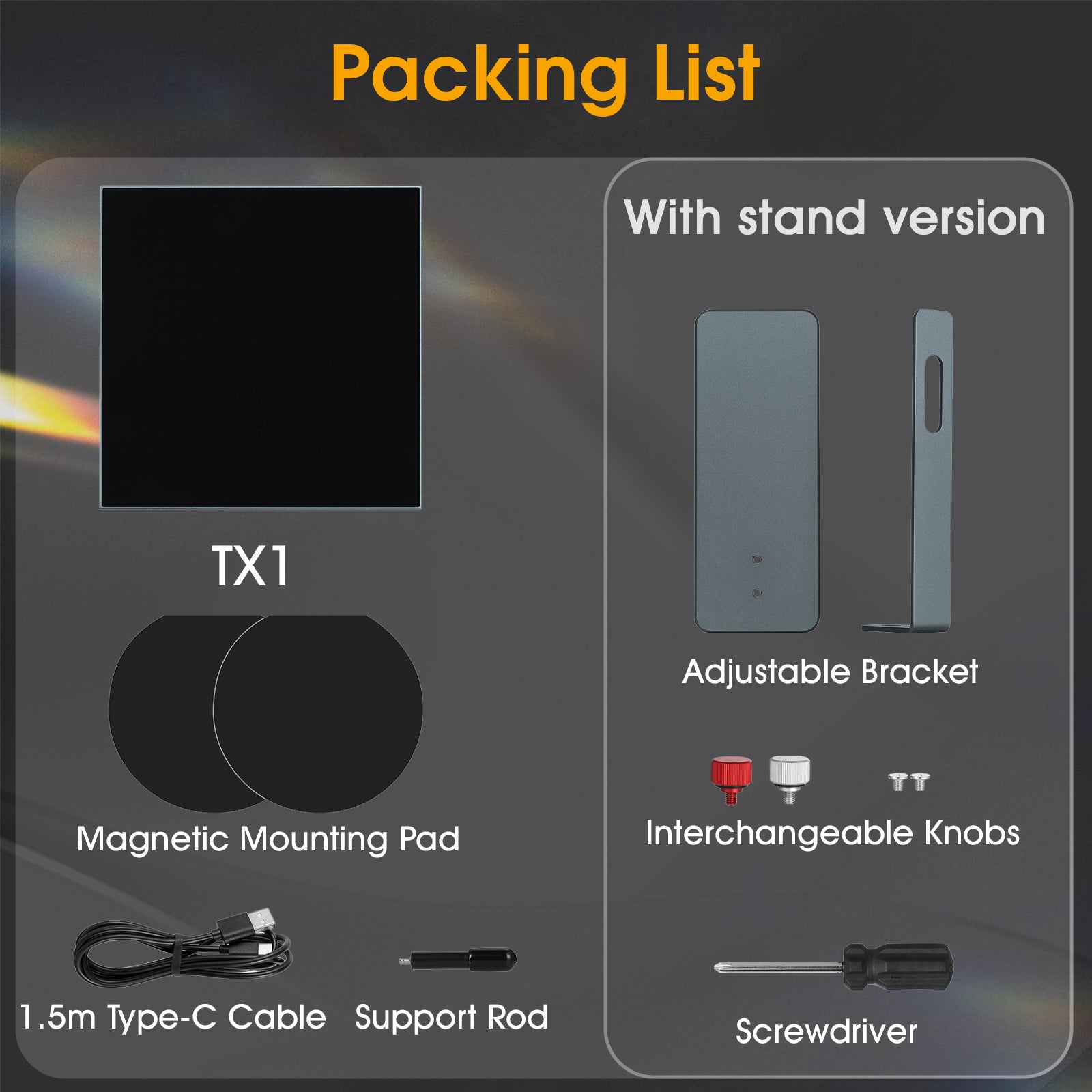

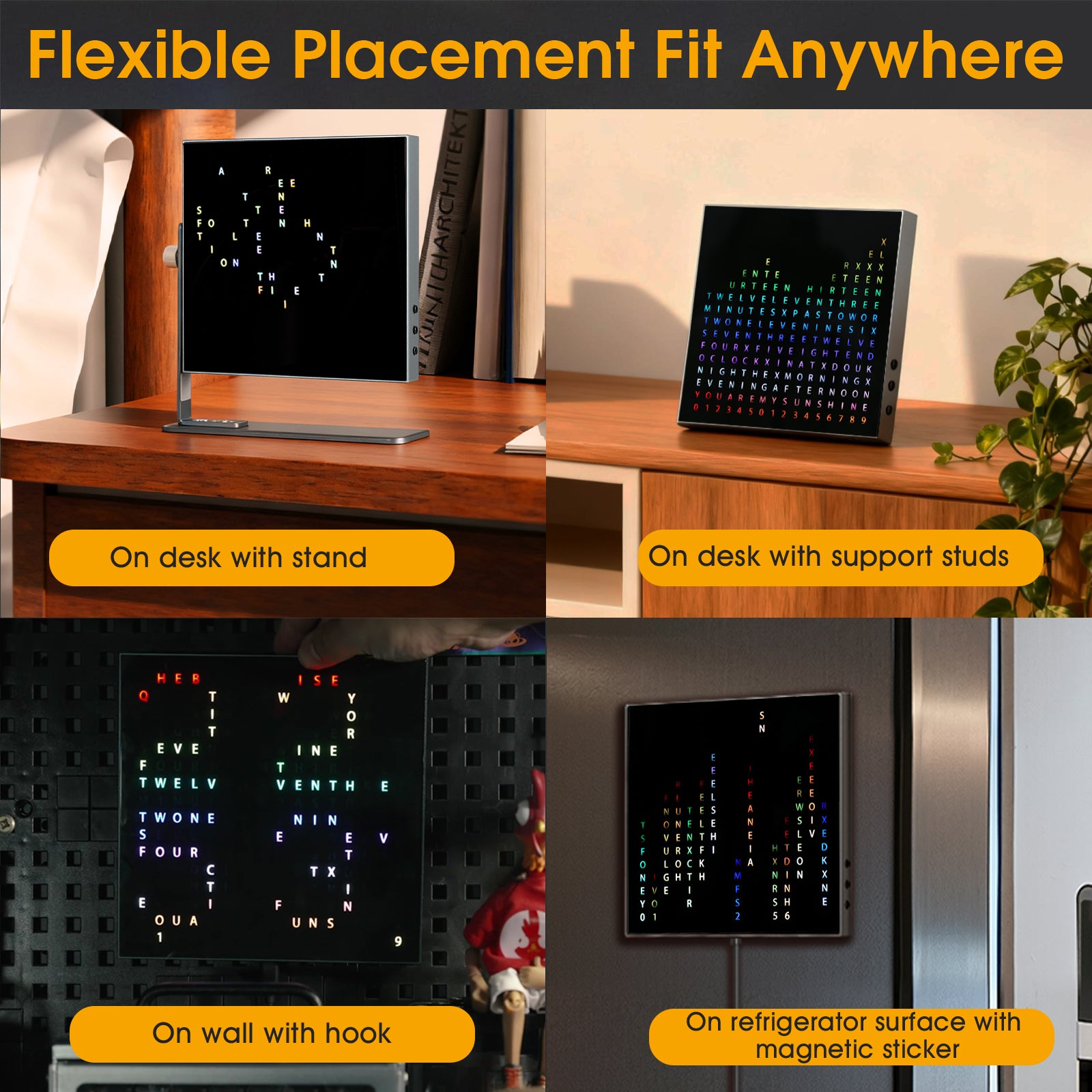

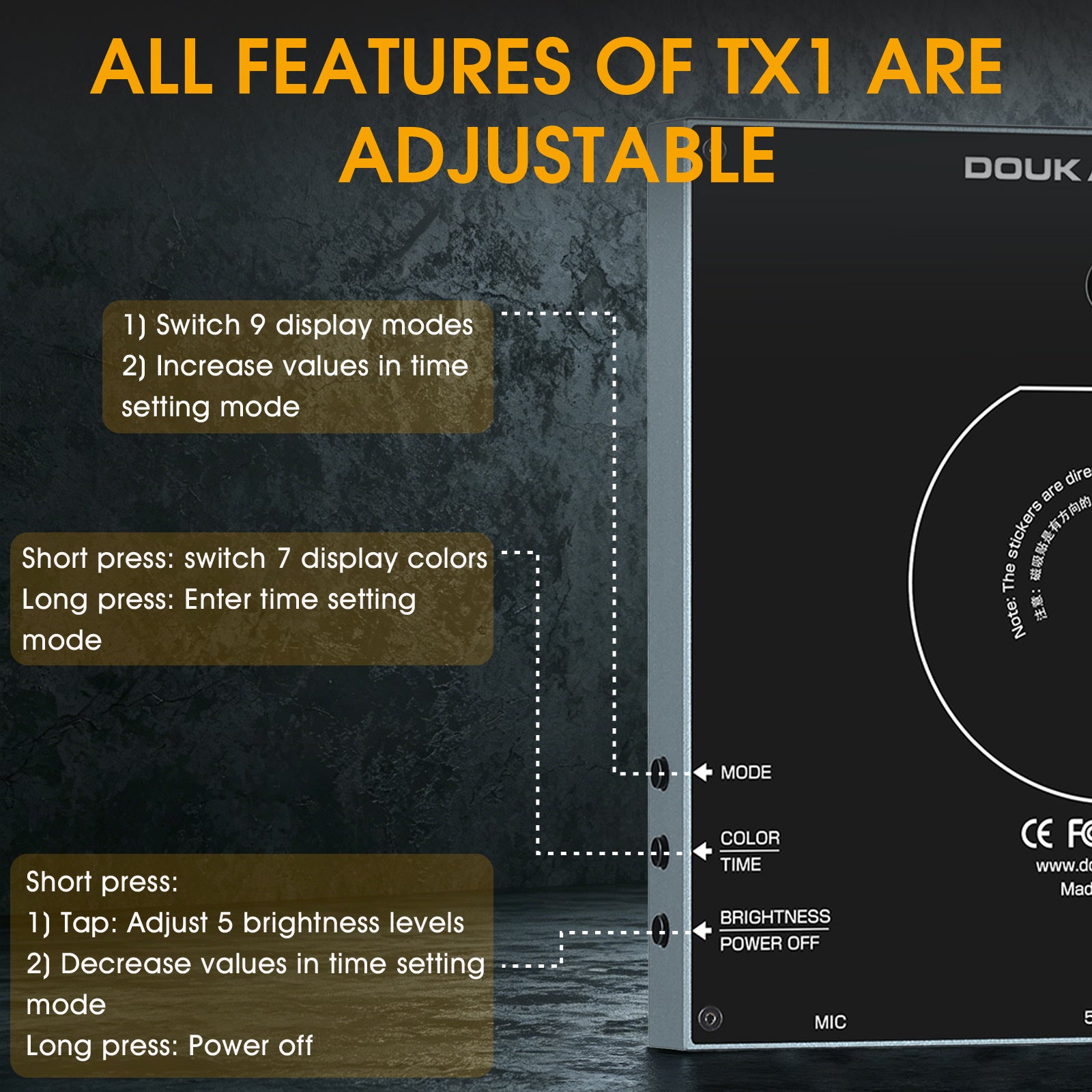

Douk Audio TX1 Word Clock with 9 Display Modes, Music Spectrum

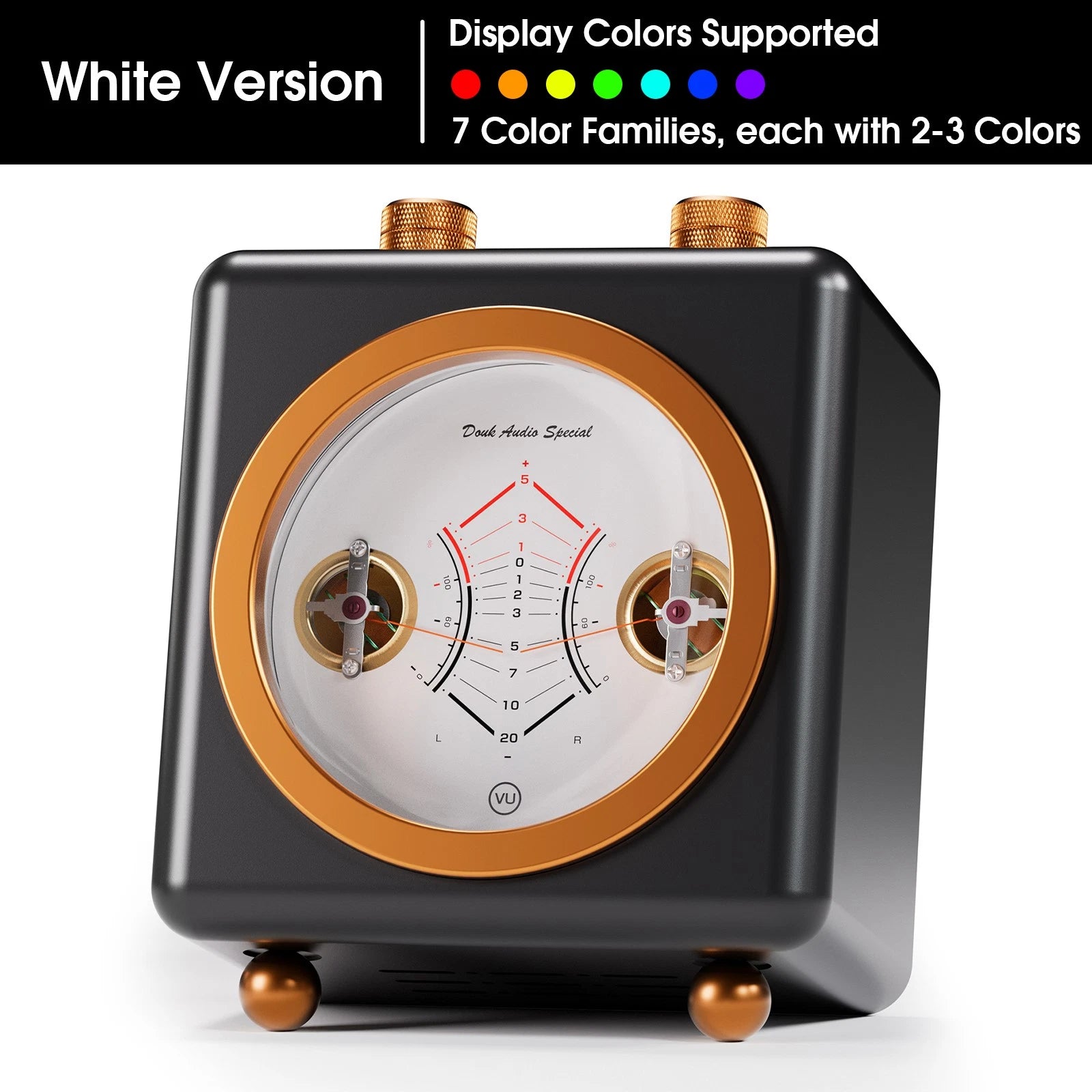

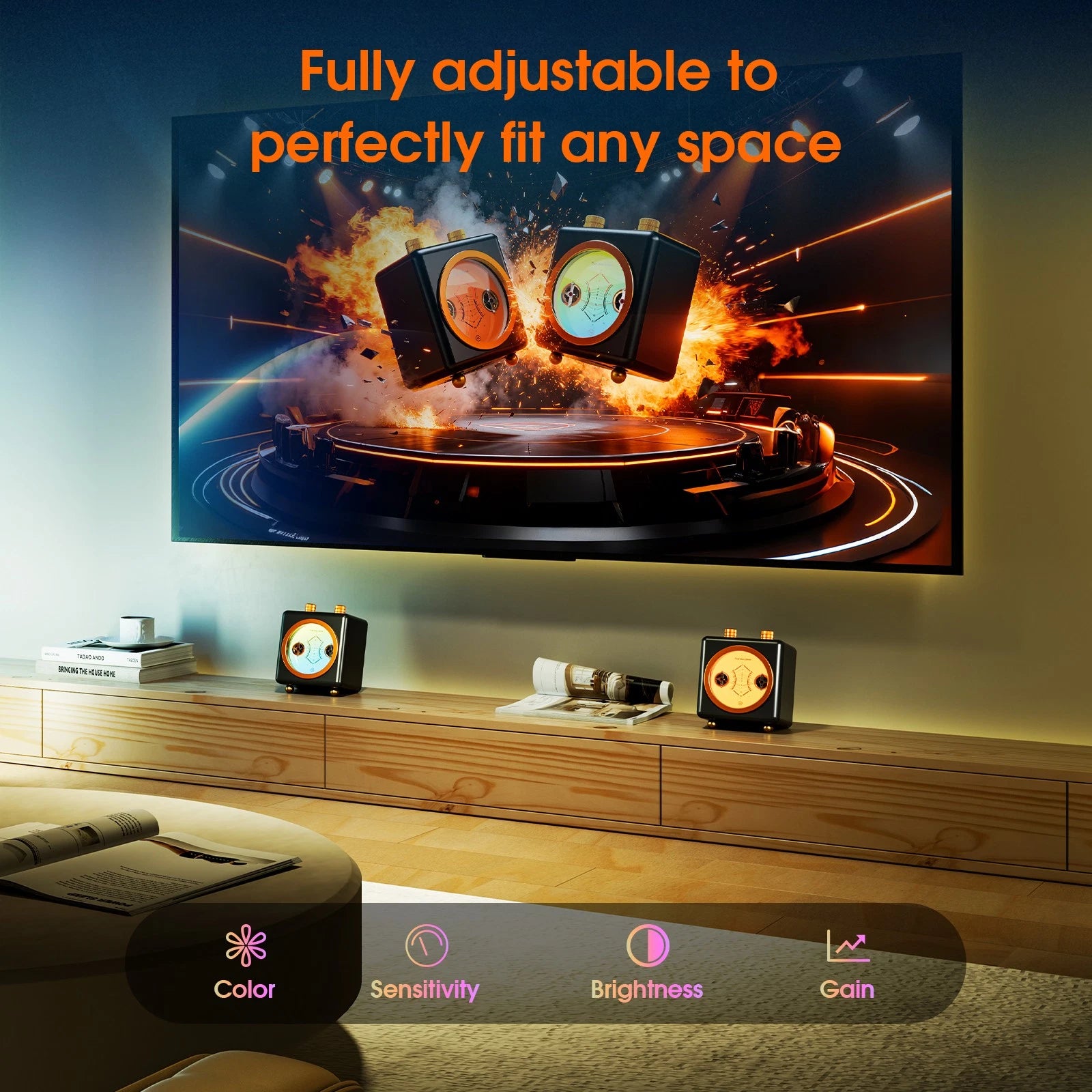

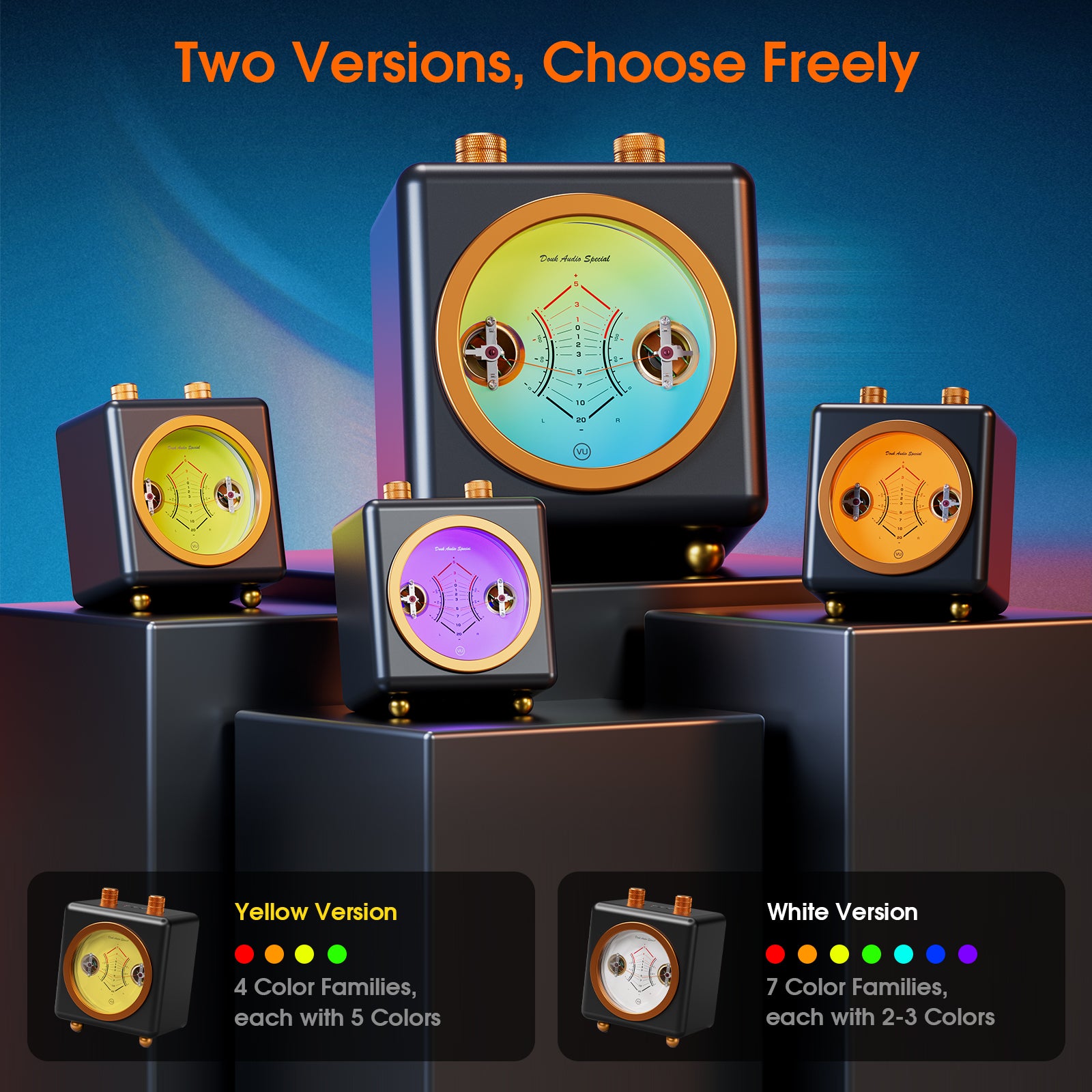

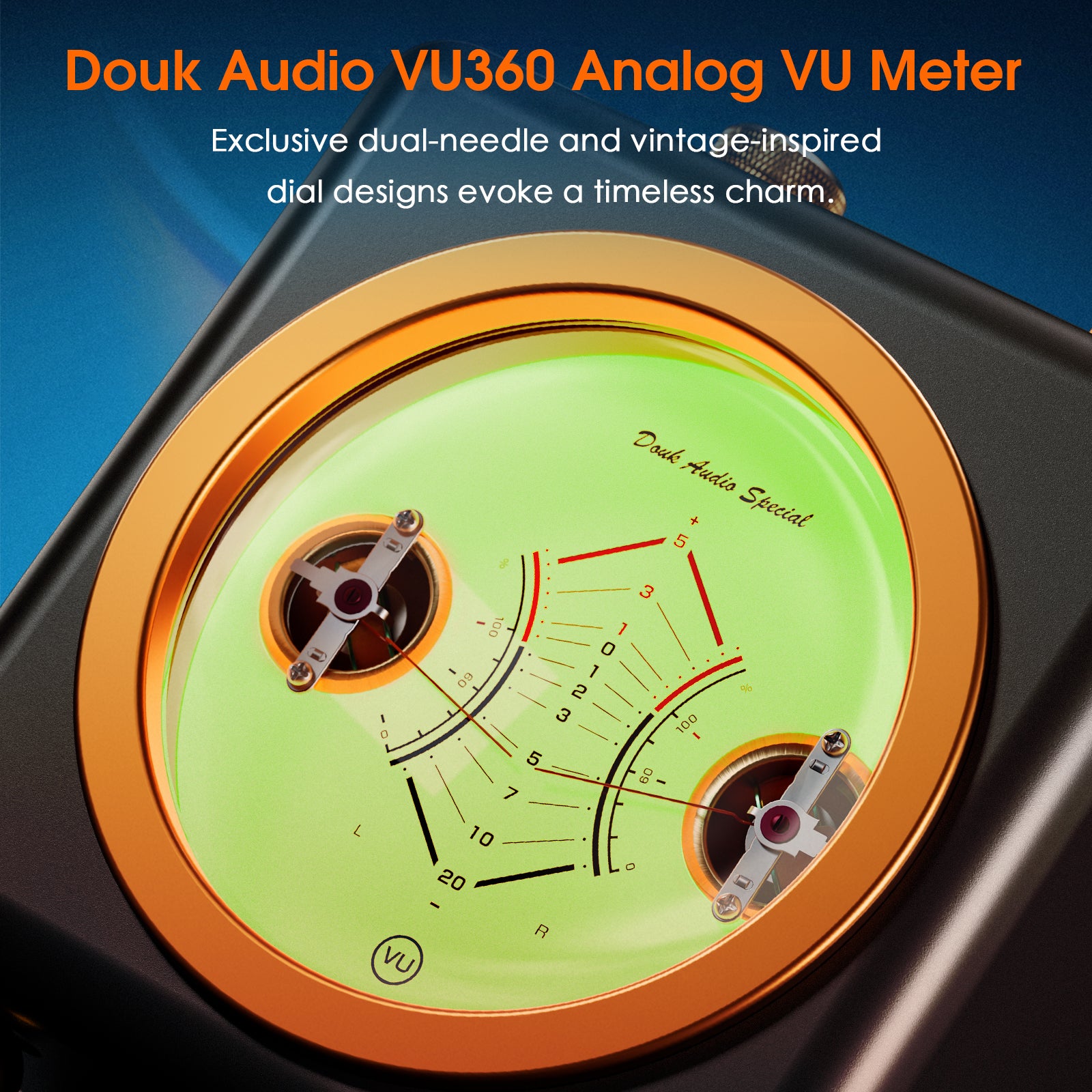

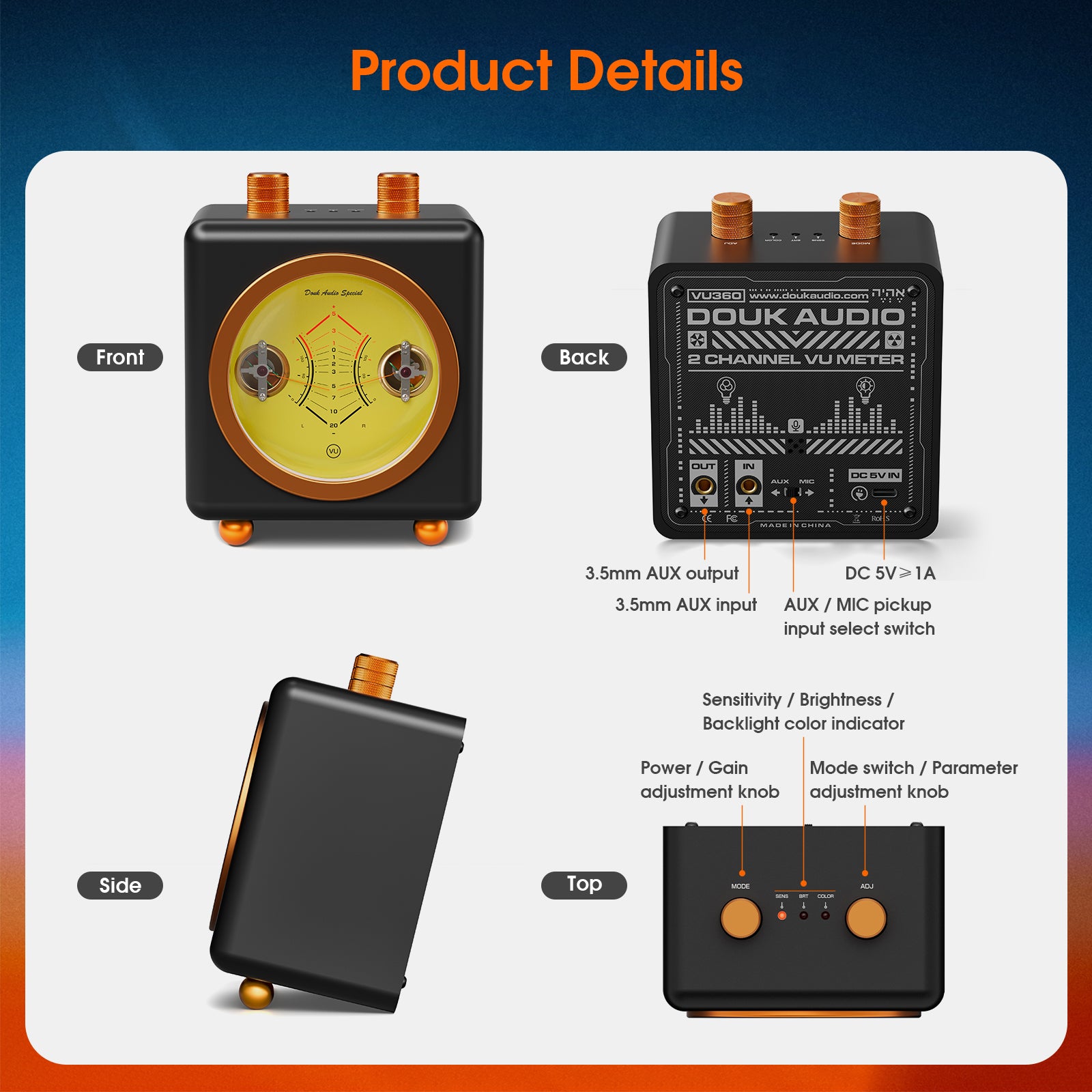

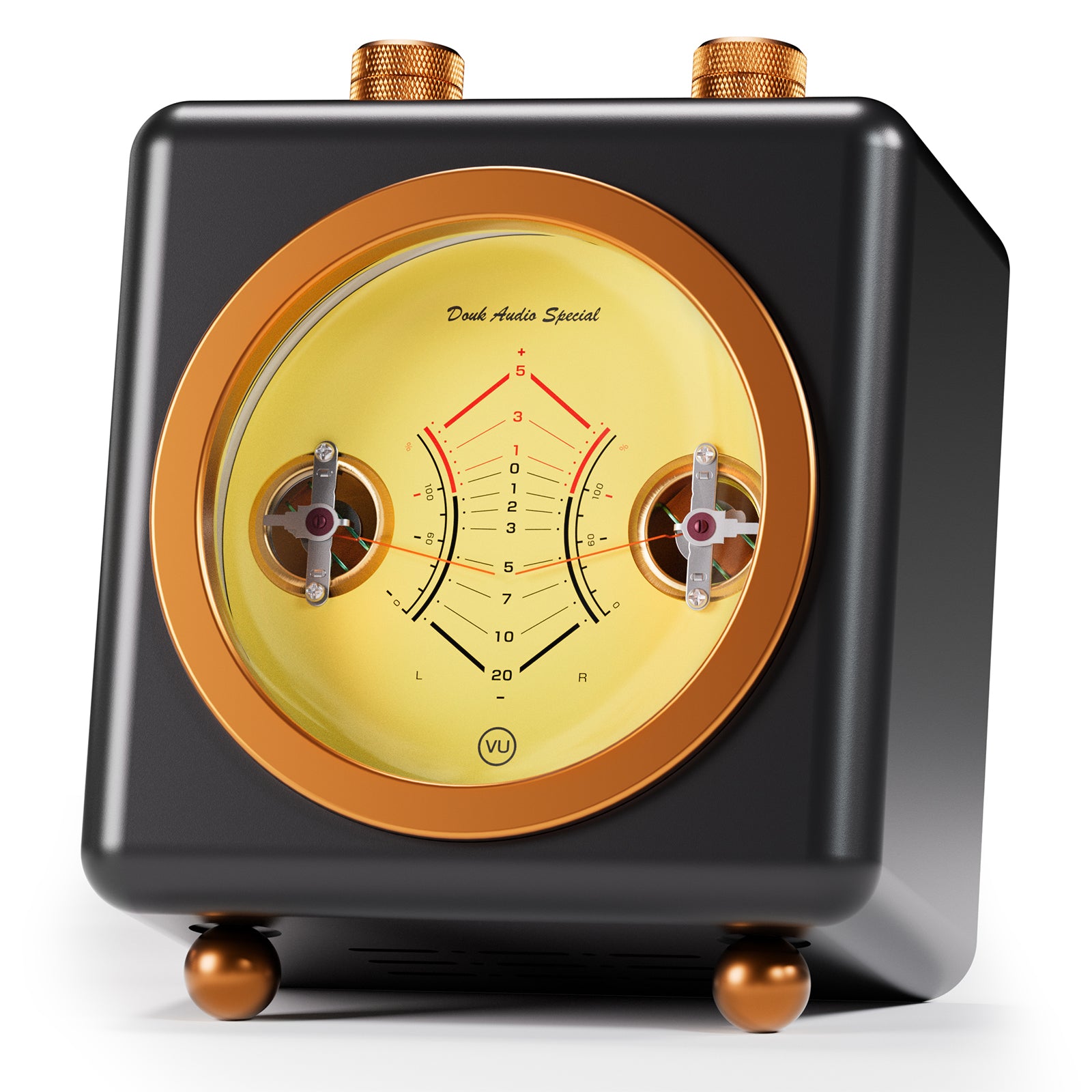

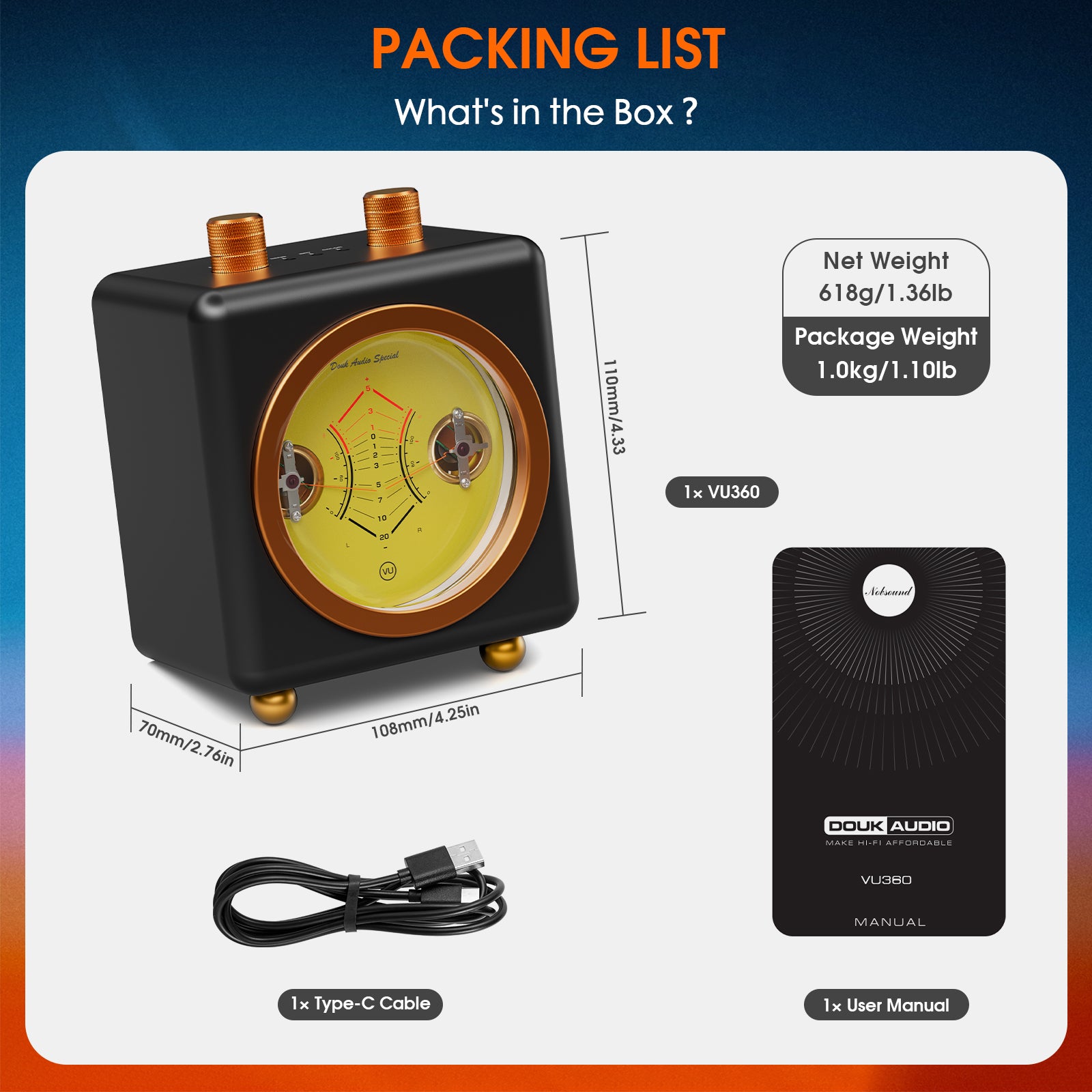

Douk Audio VU360 Special Analog VU Meter Music Spectrum Visualizer
@v-mire.net
Why everyone praises the Ampapa D1 amplifier with TPA3255 2x 300W
@Williston Audio Labs
This Little Amp Has a SHOCKING Feature
@Souzoukan Technical Report
Revealing the performance of the Chinese-made Ampapa D1 with a glass window
@HiFi Huff
FUN! Comparing SIX Integrated Amps from $199 to $25,000. Also, are Separates BETTER?
@Old Guy Hifi
Not in price but in Performance! The Ampapa (Douk) D1 Hifi Amp.
@Christian Schwarzbeck - China-HiFi
Ampapa D1 – Der kompakte High-Tech-Verstärker mit 3 Eingängen, VU-Metern, PFFB & Hochpassfilter!
Unboxing Video
Product Showcase Video
- Flexible 4-Channel RCA Routing: Works as a 1-in-4-out distributor or 4-in-1-out selector to manage your HiFi system with less cable swapping. Send one source to one, several, or all selected outputs, or switch between multiple sources with ease. Lighted buttons show the active channel at a glance.
- 25-Band VFD Spectrum Visualizer: The 25×15 VFD display turns music into real-time spectrum motion with clearer frequency layers and richer visual detail. Use line-in RCA for direct signal tracking, or built-in MIC pickup to capture nearby sound for easier visual display across more setups.
- Customizable Spectrum Display: Multiple modes, range selection, gain, brightness, and response tuning help the spectrum stay clear, full, and engaging across different sources and listening styles. Whether the signal is weak, the room is bright, or you prefer truer response over smoother motion, you can tune the display to look right.
- Direct Isolated Signal Path: RCA input and output are directly connected without op-amp processing, keeping the audio path simple and clean. Transformer isolation separates the VFD drive circuit from the audio route, helping reduce display-related interference while preserving your original signal.
- Built for Daily HiFi Use: The remote control gives quick access to channel selection, brightness, spectrum response, and clock settings etc. Accurate clock display adds practical desktop use, while aluminum housing and tempered glass bring a solid, refined finish to your HiFi setup.
- Brand: Douk Audio
- Model: VFD253 Pro
- Audio Input: RCA / MIC Pickup
- Audio Output: RCA
- Operating Modes: 1-in-4-out / 4-in-1-out
- Display Type: VFD
- Display Resolution: 25 × 15
- Display Content: Music Spectrum / Clock
- Display Modes: 7 main display modes with sub-modes
- Spectrum Range: LOW / MID / FULL
- Display Response: Real Display / Smooth Display
- Adjustments: Brightness / Gain / Sensitivity / Peak Hold
- Clock IC: RX8025T
- Time Accuracy: Within 1 minute per year
- Remote Control: Supported
- Power-Off Memory: Supported
- Power Input: DC 5V / ≥1A
- Dimensions: 172 × 107 × 70 mm / 6.77 × 4.21 × 2.76 in
- Package Dimensions (W*D*H): 200 × 185 × 98 mm / 7.87 × 7.28 × 3.85 in
- Net Weight: 650 g / 1.43 lb
- Package Weight: 980 g / 2.16 lb
- 1* VFD253 PRO
- 1* Power Adapter
- 1* USB-C Cable
- 1* Screwdriver
- 1* Remote Control (Without Batteries)
- 1* User Manual
User Manual of Douk Audio VFD253-PRO
FAQs
Q: Can the VFD253 Pro be used as a mixer?
A: No. It does not provide independent volume control for each channel. It is more suitable as an audio switcher or splitter rather than a mixer.
Q: What signal does the spectrum display show?
A: The spectrum comes from the rear I/O port. In 1-in-4-out mode, it shows the source signal. In 4-in-1-out mode, it follows the selected input. If multiple inputs are selected, it may show combined signal, but this is not recommended.
Q: What is the difference between Real Display and Smooth Display?
A: Real Display follows signal changes more directly for a more accurate visual response. Smooth Display offers smoother, steadier movement for better viewing.
Q: Why does the display switch to clock mode when there is no audio signal?
A: This is normal. If no audio signal is detected for about 5 seconds, the display can switch to clock mode. This function can be turned on or off by remote control.
Q: How should I power the VFD253 Pro?
A: Please use the included 5V USB power adapter. Do not power it from the same device used as the audio source, as shared grounding may cause background noise or hum.
Q: Does the remote control include batteries?
A: No. Batteries are not included for safer and faster delivery. Please prepare compatible batteries separately before use.
Q: What power adapter should I use?
A: Please use the included DC 12V/2A power adapter. If using another adapter, make sure it is a high-quality DC 12V adapter rated at 1.5A or above.
.
Douk Audio VFD253-PRO
Give Music a Visual Rhythm
VFD253 PRO adds real-time VFD spectrum movement to your setup. As the display changes through different modes, your music becomes easier to see, follow, and enjoy at a glance.
- Spectrum Modes: 5 Main Modes with Sub-Modes
- Display Control: Brightness / Gain / Sensitivity / Peak Hold
- Spectrum Source: Line In / MIC Pickup
