Douk Audio NS-13G MAX HiFi 迷你双声道立体声音频放大器 D 类功率放大器，带唱机 300W*2
Ampapa A1 Mini 5654 真空管前置放大器 唱机/转盘放大器 带音调控制
Douk Audio T4 PRO Mini GE5654 真空管唱机前置放大器 家用立体声音频前置放大器 耳机放大器
- MM Phono/RCA Input Flexibility: Serves as both a phono preamp and tube preamp, P7 is perfect for connecting turntables, phones, TVs, CD players etc. The P7 enhances sound clarity while adding a warm tone, bringing out every detail in your favorite music.
- XLR Output for Pristine Audio: Besides standard RCA, the P7 features a true balanced XLR output, reducing noise and improving dynamic range. Perfect for amplifiers and active speakers, it delivers crystal-clear audio with a wider soundstage, ensuring distortion-free, immersive sound.
- Clearer Vinyl Playback with HPF: The integrated high-pass filter (only available in phono input) cuts off subsonic noise below 20Hz, reducing distortion and improving sound clarity. It ensures a cleaner playback, making your records come alive with reduced rumble and better dynamics.
- True Tube Amplification: Powered by brand-new PSVANE ECC83 tubes, easily swappable for tailored sound, the P7 brings warmth and sweetness to your audio. Driven at 180V, the tubes unlock the full potential of analog sound, offering a rich harmonic depth that audiophiles will appreciate.
- Precise Tone Control with Bypass: Fine-tune the bass and treble for a customized sound profile, or engage the bypass mode for pure, unaltered audio. Whether you’re adjusting the tone or listening to the original signal, the P7 gives you full control over your listening experience.
- Brand: Douk Audio
- Model: P7
- Audio input: MM Phono / RCA
- Audio output: RCA / XLR
- Input sensitivity:
Phono input: 5mV
RCA input: 0.775V - Rated output level:
Phono input: RCA output: 0.5V / XLR output: 1V
RCA input: RCA output: 2V / XLR output: 4V - THD+N:
RCA input: 0.1%
Phono input: 0.03% - SNR:
RCA input: ≥109dB
Phono input: ≥82dB - Frequency response:
RCA input: 20Hz-20KHz (±0.8dB)
Phono input: conforms to RIAA characteristics - Treble/bass range: ±6dB
- High-pass filter cut-off frequency: 20Hz
- Input voltage: DC 12V≥2A (5.5*2.1mm)
- Dimensions (W*D*H): 155*124*42mm / 6.10*4.88*1.65in
- Package dimensions (W*D*H): 310*240*70mm / 12.20*9.41*2.75in
- Net weight: 707g / 1.56lb
- Package weight: 1.10kg / 2.43lb
- P7 Preamp ×1
- PSVANE ECC83 Tubes ×2
- DC 12V Power Adapter ×1
- User Manual ×1
FAQs
Q: What is the input voltage of the P7?
A: The P7 operates at DC 12V/≥2A. Using over voltage can cause damage, while insufficient current may affect normal operation.
Q: Can I connect a turntable directly to the P7?
A: Before connecting, please check if your turntable has a built-in phono preamp. If so, use the RCA input to avoid unwanted noise.
Q: Can the RCA and XLR outputs be used at the same time?
A: Yes, they output at the same time, with their volume and tone controlled simultaneously.
Q: Is the high-pass filter active in RCA input mode?
A: No. The high-pass filter is only available in phono input mode.
Q: Can I swap op-amps in the P7?
A: Yes, the P7 features 3 pluggable NE5532 op-amps, which can be replaced with other dual op-amps such as 2604, 2134, or MUSES02 etc. High voltage inside, please make sure the op-amp is properly installed before powering on.
Q: Can I replace the tubes in the P7?
A: Yes, the P7 supports swapping for PSVANE 12AX7-S, Shuguang 12AX7B, 7025, or 12AX7 tubes. Please replace tubes when powered off.
Silence the Rumble
Specially designed high-pass filter eliminating unwanted low-frequency noise, the P7 was created to solve the rumble issues for vinyl lovers.
- Input: MM phono / RCA
- Output: RCA / XLR
- THD+N: RCA input: 0.1%; Phono input: 0.03%
- SNR: RCA input: ≥109dB; Phono input: ≥82dB
Customer Reviews
Ok, I was actually after a (HO)MC compatible phono with adjustable load settings. But the first review, tubes, price and XLR outout made me tryout this phono first. What a great purchase. Moving from Mani 1 the plan was a straight upgrade, but this came out a at 1/3 of the price delivered.
Soundwise its a huge upgrade from the Mani. Much more detailed soundstage, better instrument separation, better defined bass, control of treble (although I prefer keeping it near neutral) that became a bit sharp after moving to HOMC cartridge. I don’t find the soundstage wider but definitely more defined. But even with a HOMC this works ok, I have not yet compared to proper MC stages however or with a custom load solution, but my sound right now is just so enjoyable I may have to listen through my entire collection before the next move.
Also MC phonos with XLR outout i just out of my pricerange. I might borrow from my audio shop and come back with some comparisons to MC phonos, but it will take a while!
Final words, As a budget MM phono this is a no brainer, if mani was already reviewed as great value for money this beats it by a lot. If douk releases an MC phono preamp with adjustable load and XLR output I’m going to buy it first!
Cool little Phono pre amp!

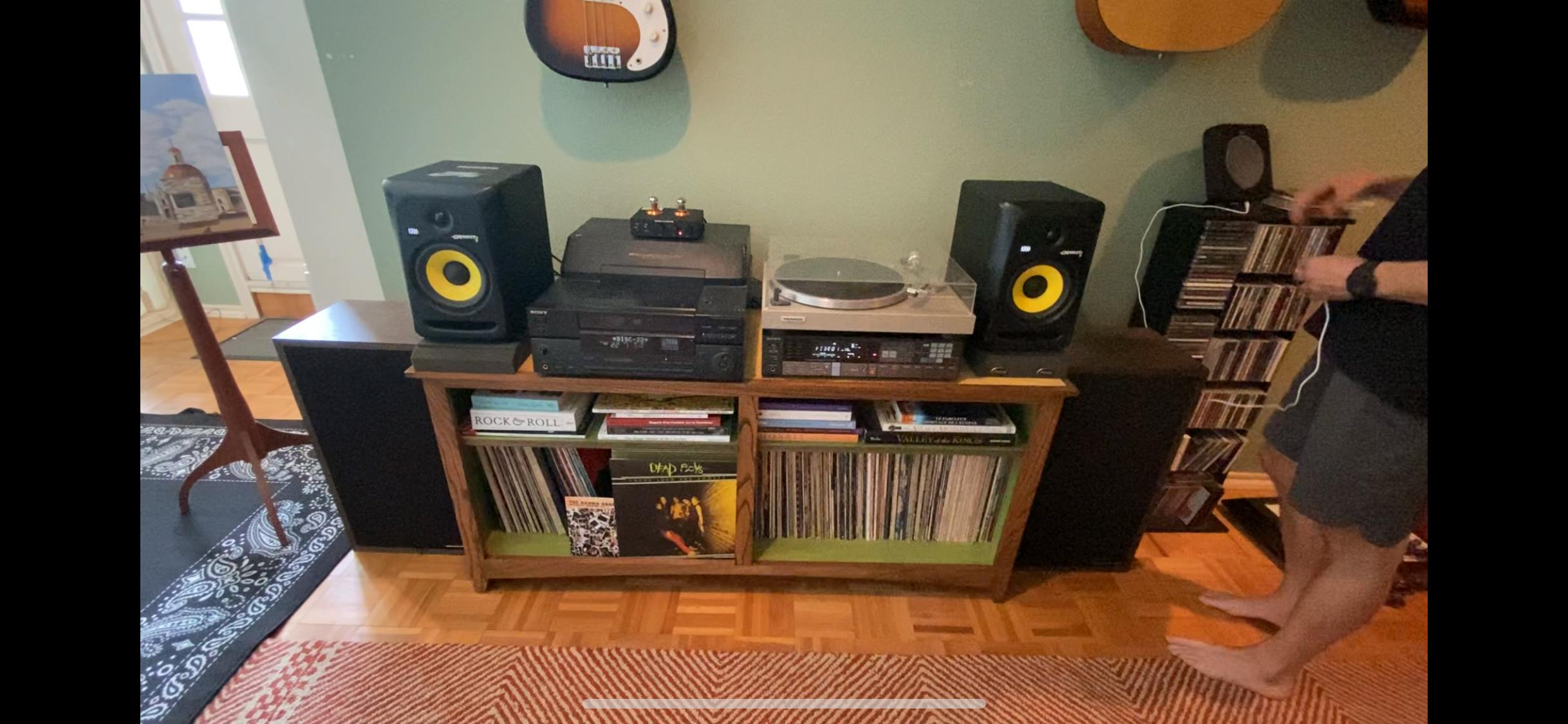

I love the XLR outputs. Connects easily to my powered studio monitors. The RCA line-out is also a big plus! I have it running to my receiver to play through my other speakers alongside the powered monitors. Sounds awesome!
Not only that, we also run our 100 disc cd changer into the second line input.
You need to be careful when changing inputs: I suggest turning it down before you change anything.
It didn’t give any sound improvement with my system.
Great phono preamp, build quality seems very good. Highly recommended.
This is a first impression review after 2 days. Compared to my Schiit Mani 2, I can happily replace my Mani with this. The soundstage just opened up so much going to this. Every sound is outside of the speakers. The clarity is not reference by any means, but it's still detailed enough. I honestly will trade that for music that feels like the band is in front of you. The bypass mode is pretty natural sounding, but I prefer the sound with the to the controls. It sounds punchy AF and the bass is very present. My one complaint so far is the drums sound kind of low in the mix on some records. It does make them sound far back which is cool though. I'm sure you can also get different results if you do some tube rolling.
