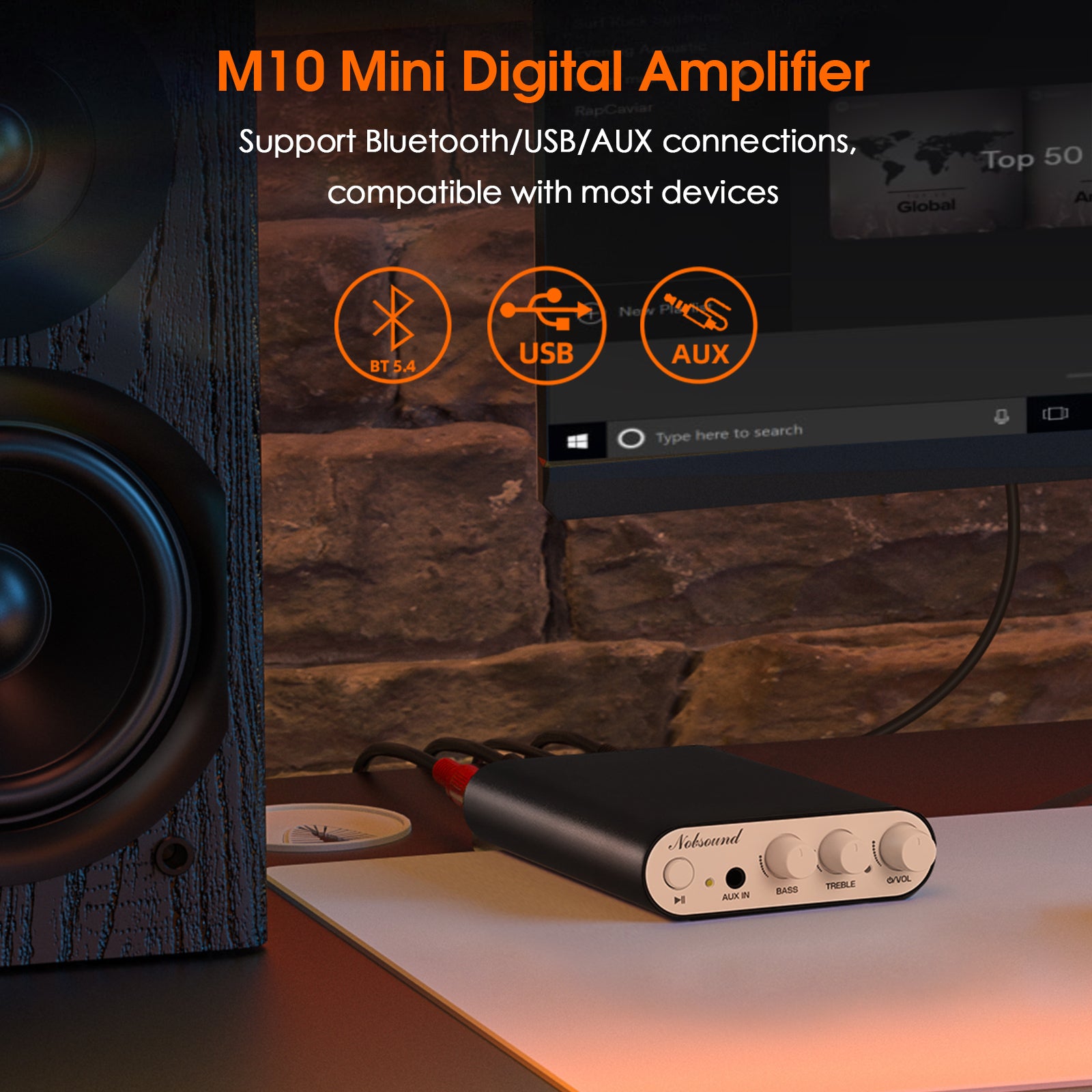

- Multiple Inputs for Versatile Use: With Bluetooth 5.4, USB, and AUX inputs, seamlessly connect any source such as phones, tablets, TVs, CD players etc. Enjoy plug-and-play audio with USB-C input from your PC or laptop, no driver needed.

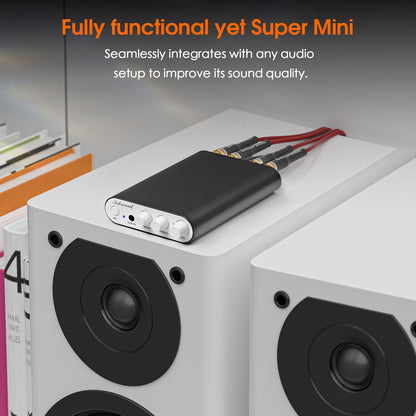

- HiFi Audio in a Compact Body: Adopting the TPA3255 chip, M10 delivers max. 300W×2 power. Despite its ultra-compact size, it drives 4–8Ω speakers effortlessly and fits neatly into any desktop, home theater, or shelf system.
- Next-Gen Bluetooth 5.4 Streaming: Equipped with QCC3084 chip, the M10 supports aptX-HD, aptX-Lossless, and LDAC for Hi-Res wireless audio. Enjoy stable, low-latency music streaming with easy Bluetooth reset function.

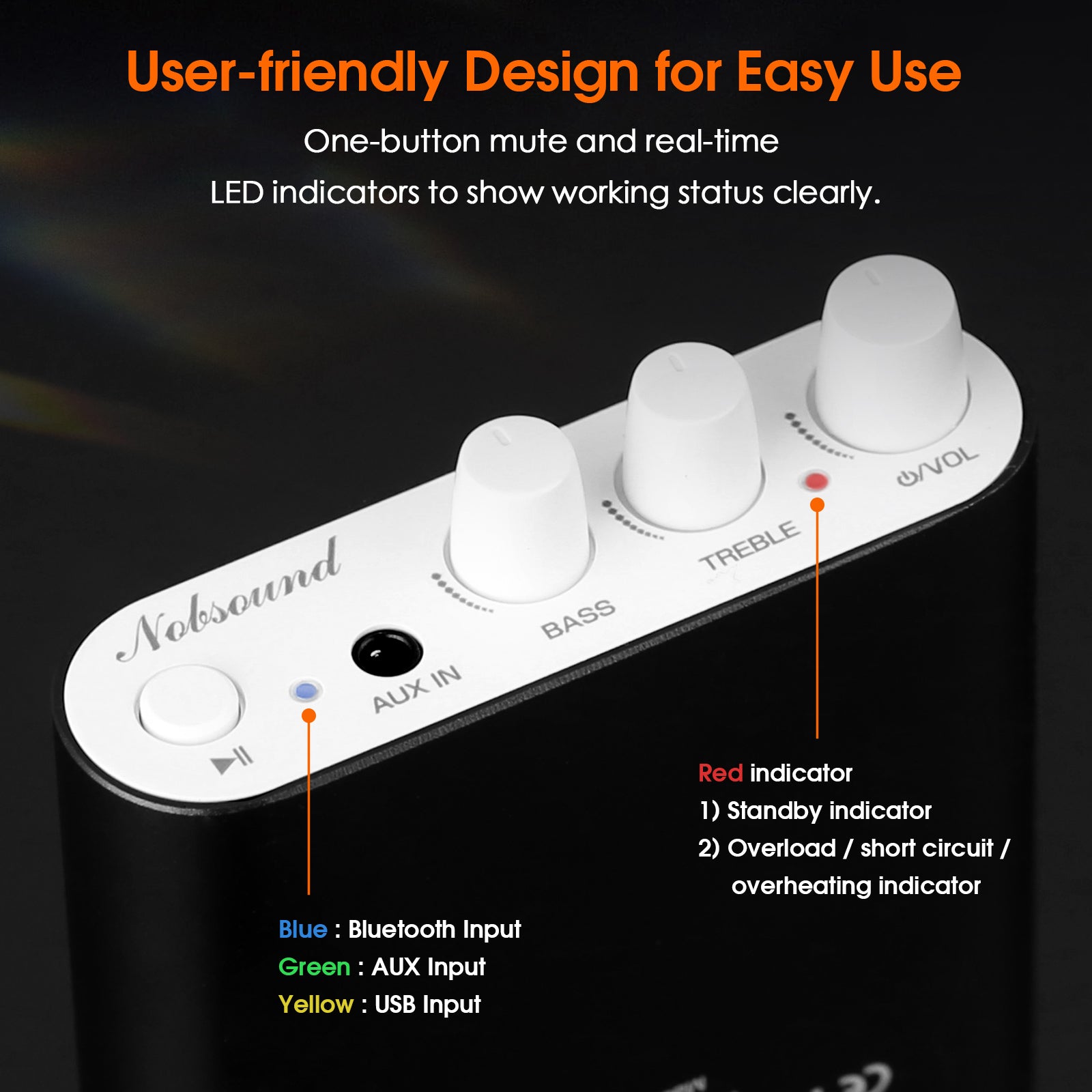

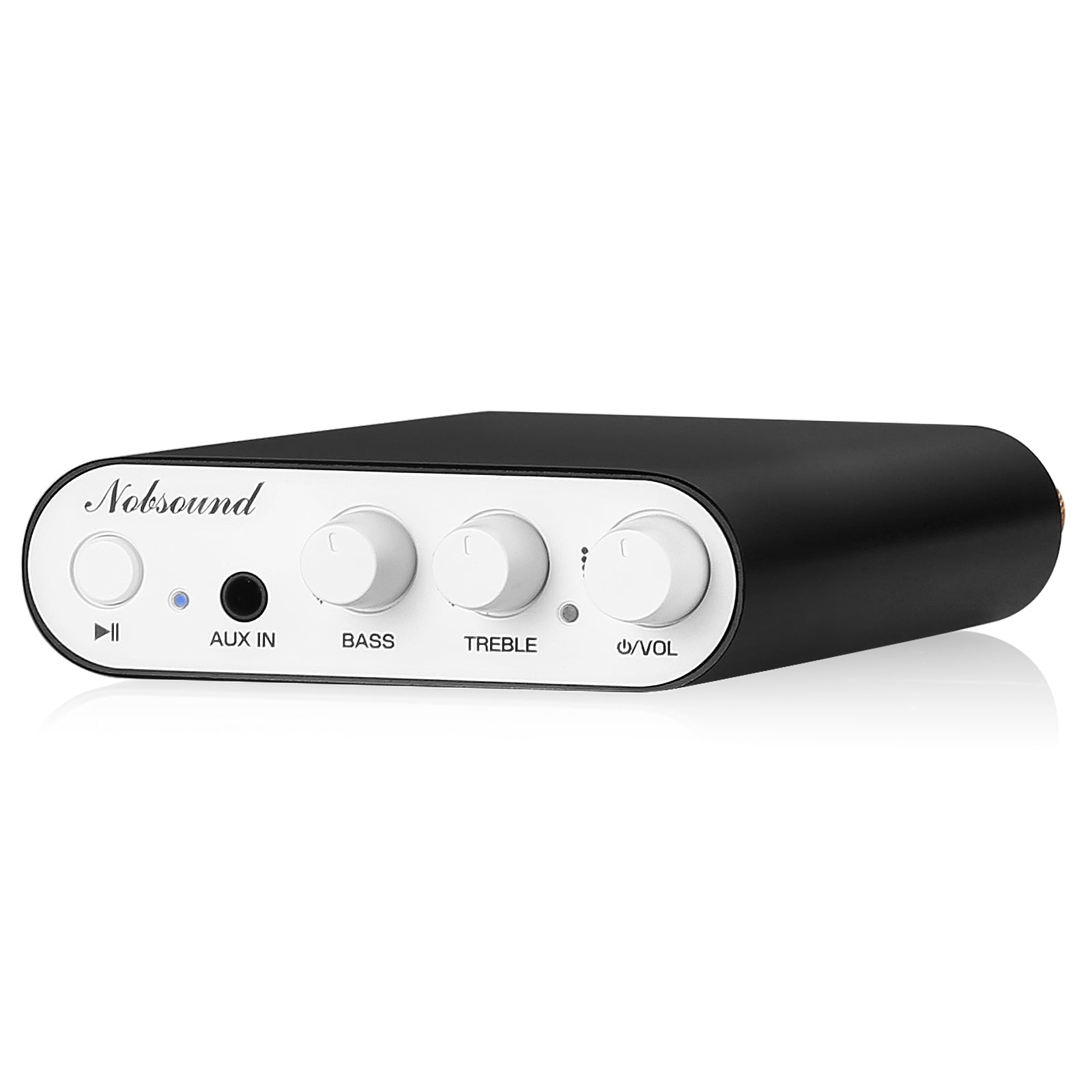

- Tailored Audio with Clear Status Lights: Fine-tune your music with dedicated treble and bass knobs. Real-time indicators clearly show input mode and power status. Thoughtfully designed for intuitive use whether you’re gaming, working, or relaxing.
- Designed for Seamless Daily Use: M10 features wide 19–48V DC input, and multiple built-in protection circuits. With its sleek metal chassis, smart functions, and powerful performance, it’s perfect for home stereo upgrades.
- Brand: Nobsound
- Model: M10

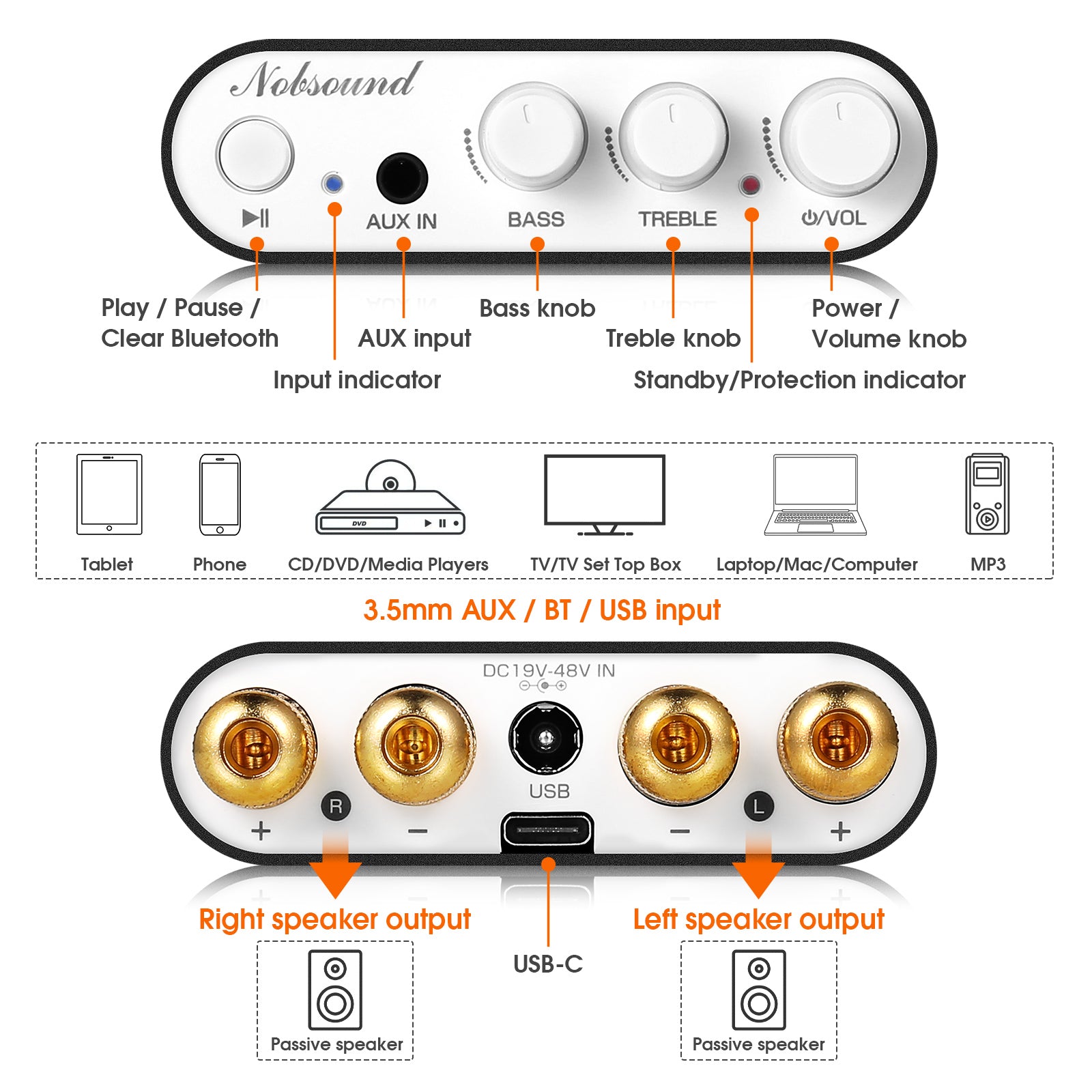

- Audio input: Bluetooth 5.4 / USB-C / 3.5mm AUX
- Audio output: Banana speaker jacks
- Chipset: QCC3084 + TPA3255 + NE5532
- Max. output power: 300W*2
- Bluetooth version: 5.4
- Bluetooth supported codecs: SBC/AAC/LC3/aptX/aptX-HD/aptX-Adaptive/aptX-Lossless/LDAC
- Max sampling rate (USB/Bluetooth): 24-bit / 96kHz
- Frequency response: 30Hz-20KHz
- SNR: ≥96dB
- Matched speaker impedance: 4-8Ω
- Working voltage: DC 19-48V (5.5*2.5mm)
- Dimensions (W*D*H): 78*124*23mm / 3.07*4.88*0.91in
- Package dimensions (W*D*H): 210*165*60mm / 8.26*6.49*2.36in
- Net weight: 218g / 0.48lb
- Package weight (without power adapter): 400g / 0.88lb
- Package weight (with power adapter): 1.0kg / 2.20lb

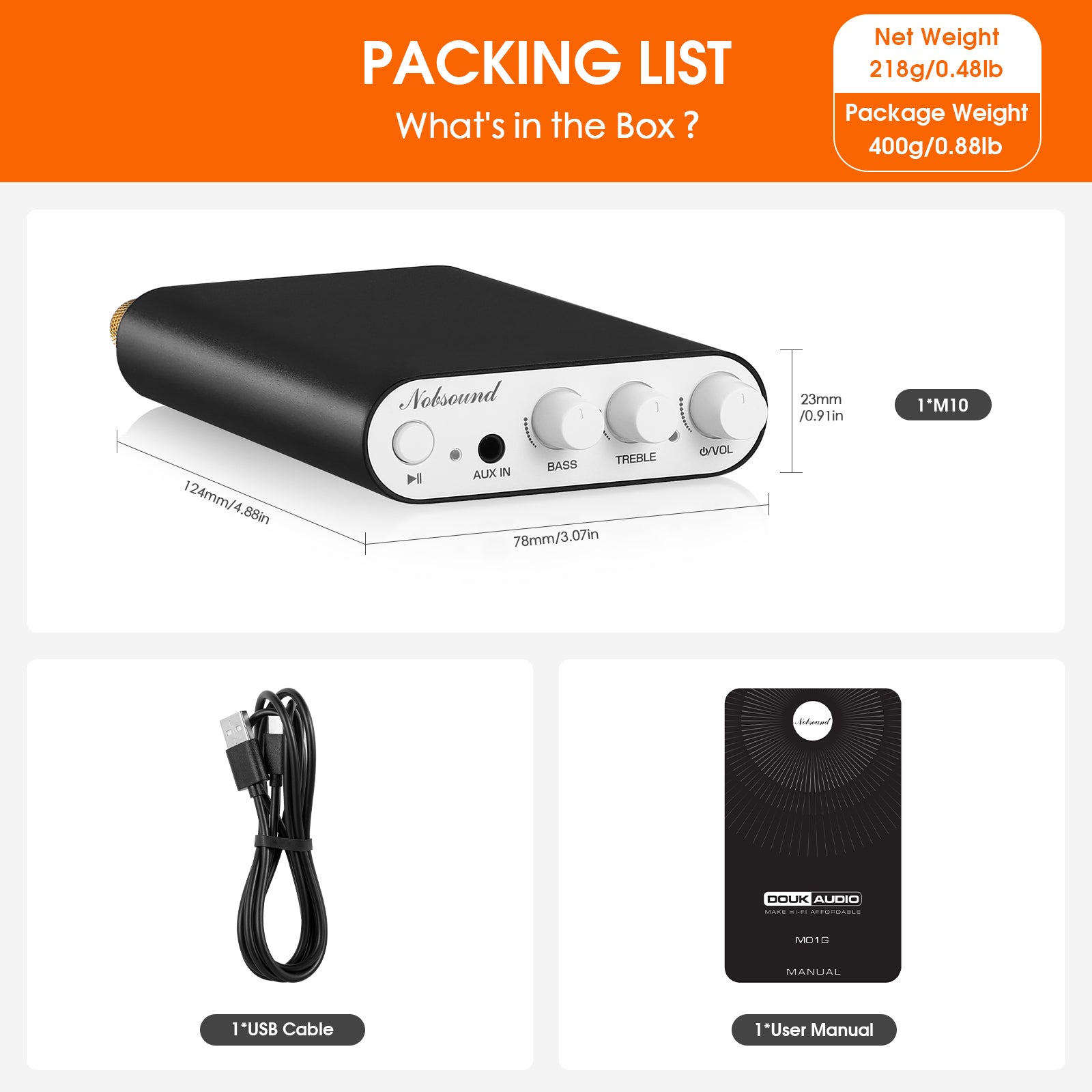

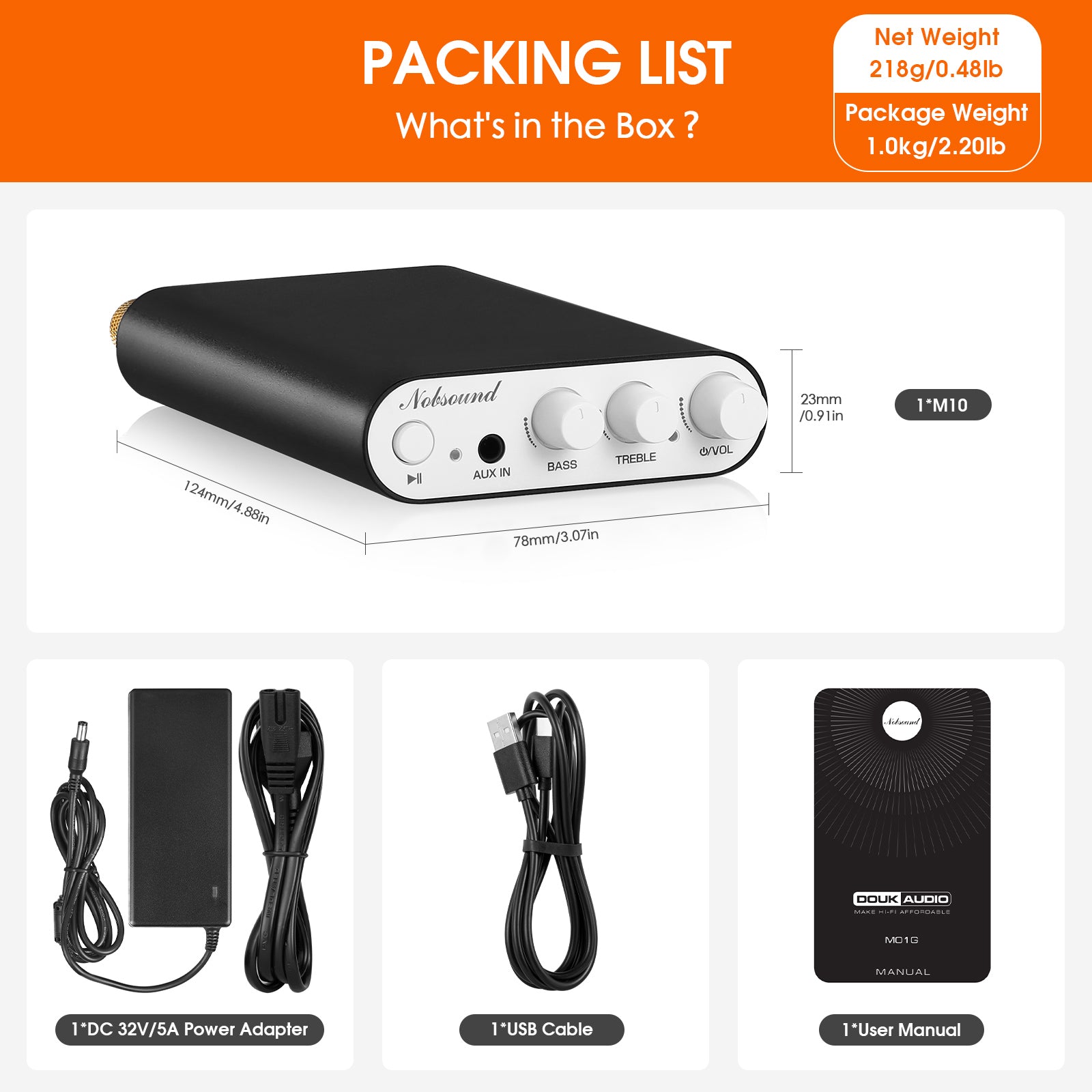

- M10 Amp ×1
- DC 32V/5A Power Adapter (Optional) ×1
- USB Cable ×1
- User Manual ×1
FAQS
Q: Why does the M10 shut down automatically during use?
A: M10 requires a power supply with at least 100W output. Auto shut-off usually means your speaker demands more power. Please reduce the volume or use a higher-wattage power adapter.
Q: Is the included power adapter sufficient?
A: The 32V/5A adapter (if included in your purchase) is sufficient for most home speakers. If you purchased the version without a power supply or need higher output, please use a high-quality adapter with adequate power.
Q: How do I switch between AUX, Bluetooth, and USB inputs?
A: When powered on, the M10 defaults to Bluetooth input. Input priority: AUX > Bluetooth > USB.
– AUX takes priority when connected.
– To use Bluetooth, disconnect the AUX cable.
– To use USB, disconnect AUX and pause Bluetooth playback.
Q: Which systems support USB input on the M10?
A: USB input works only with Windows computers (Windows 7 to 11, no driver needed, plug and play). It does not support phones, Macs, or other OTG devices.
Q: Why doesn’t the Play/Pause button work in AUX / USB mode?
A: The Play/Pause function only controls Bluetooth playback. For AUX / USB mode, please control playback from your source device.
Q: Can I replace the NE5532 op-amps?
A: No, the NE5532 op-amps are surface-mounted and not replaceable.
