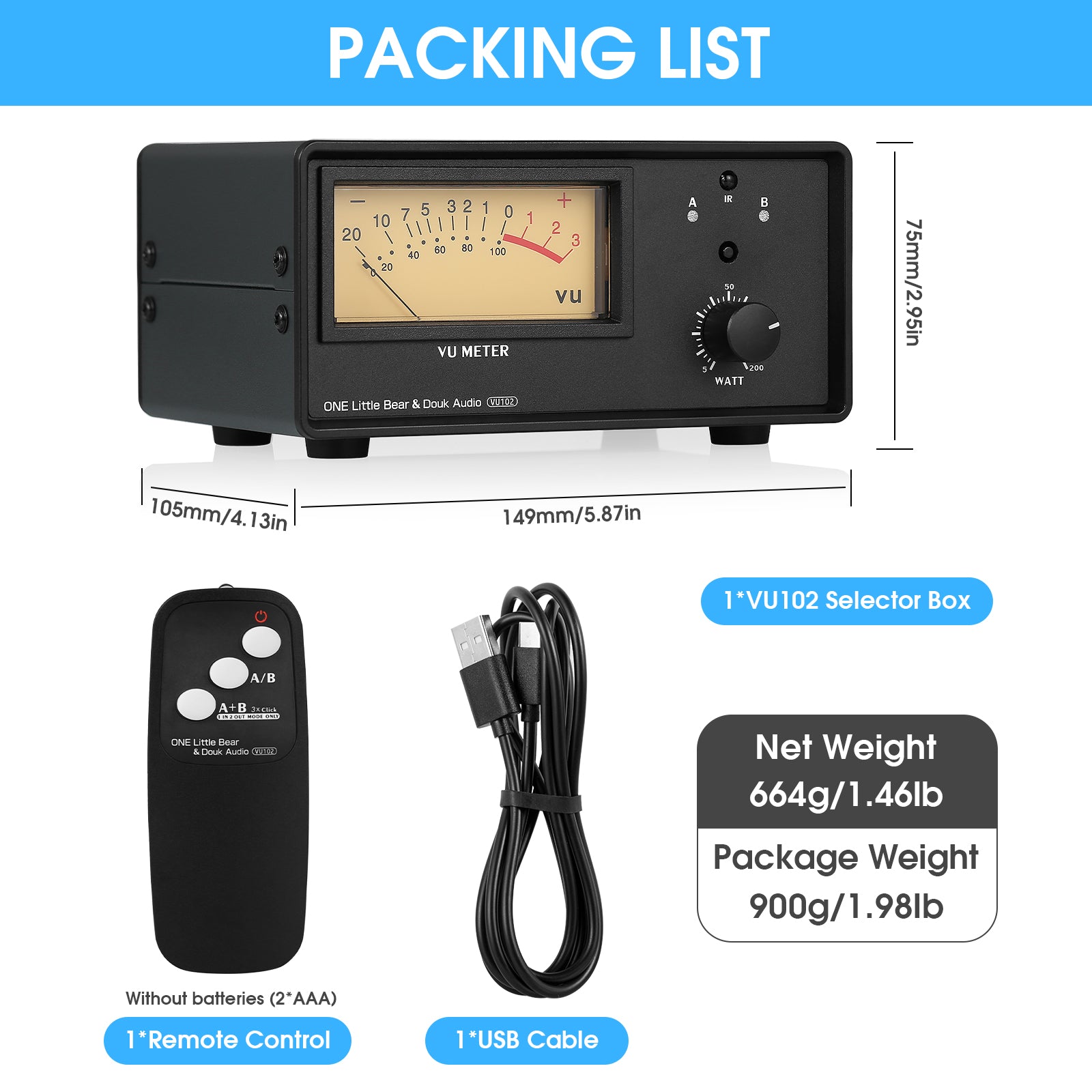

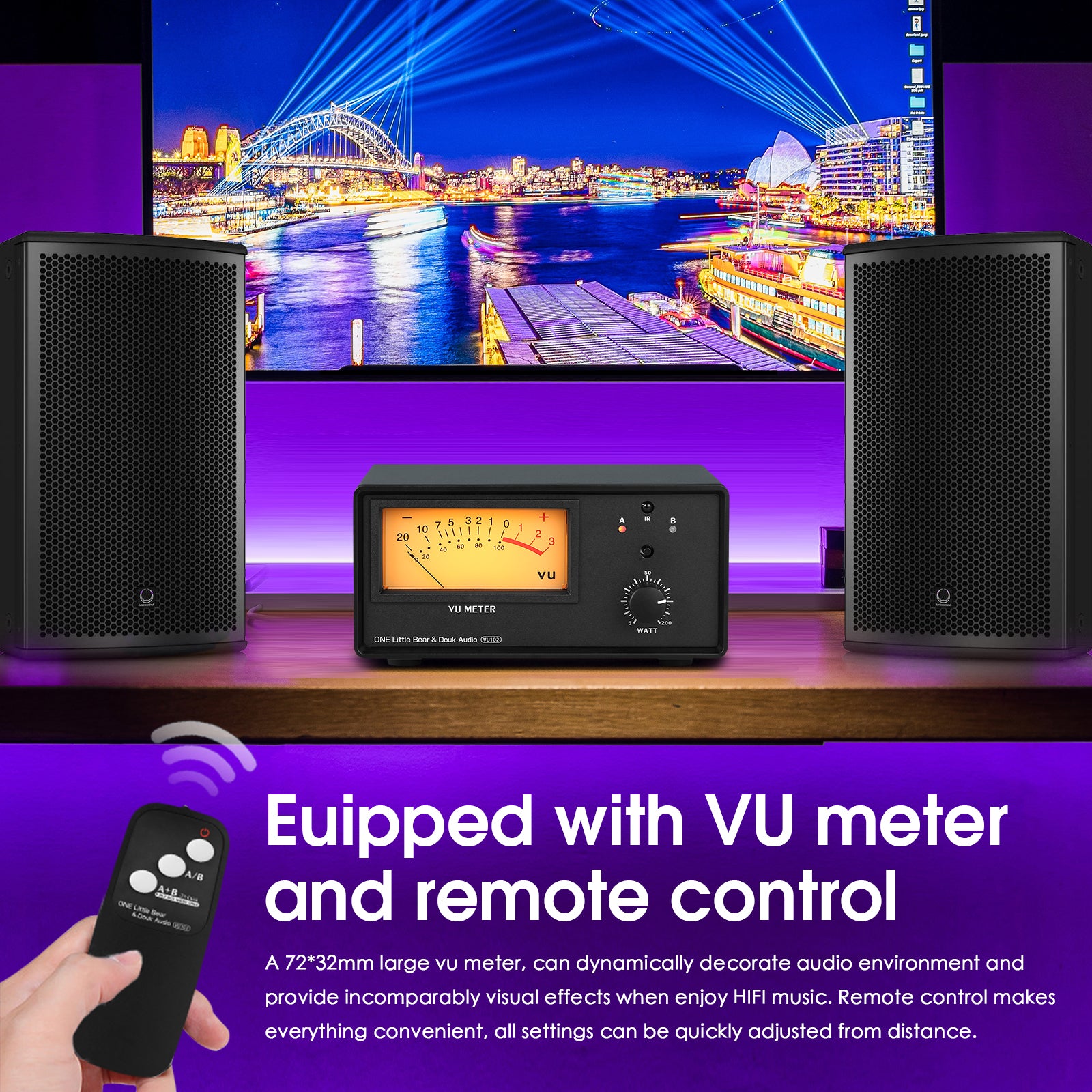

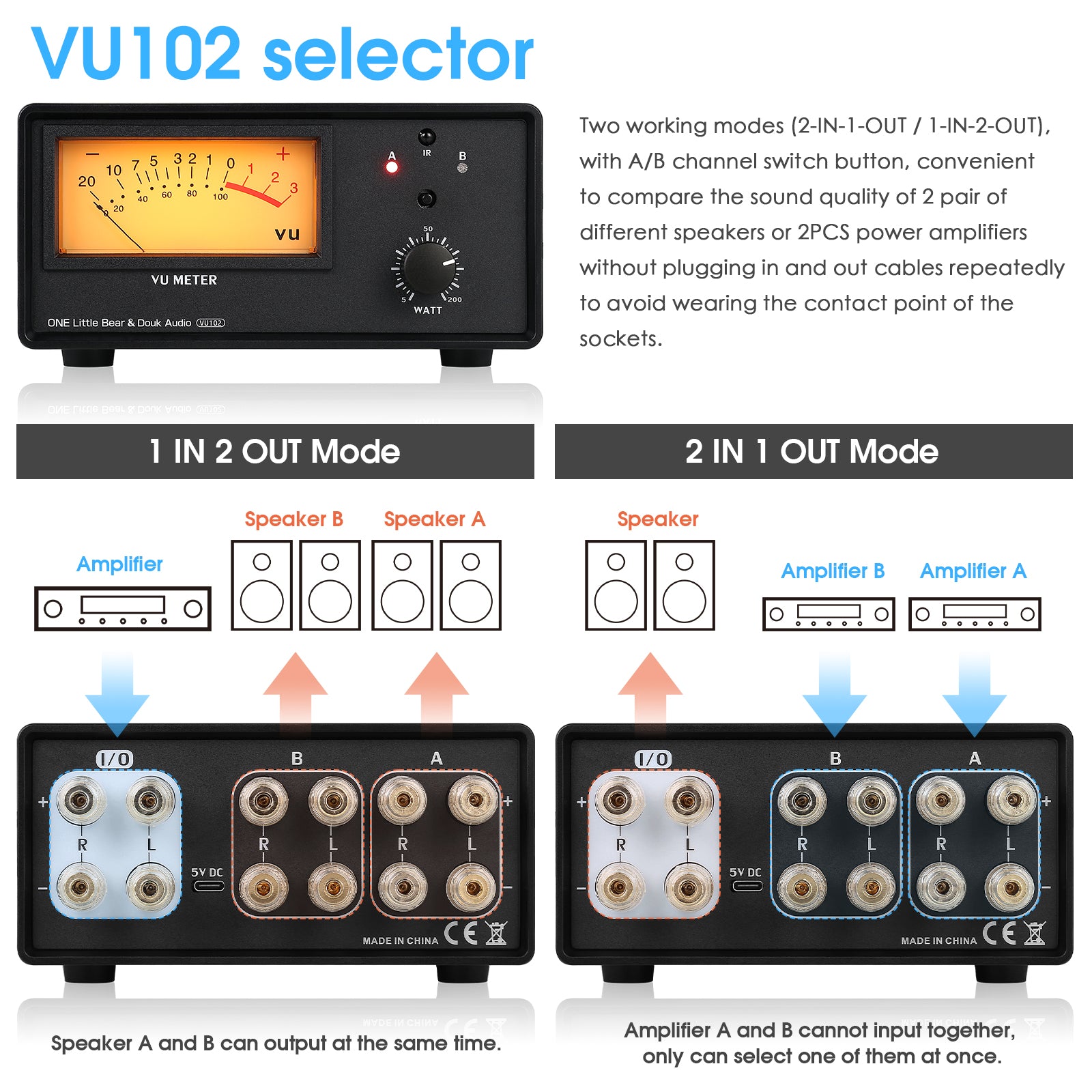

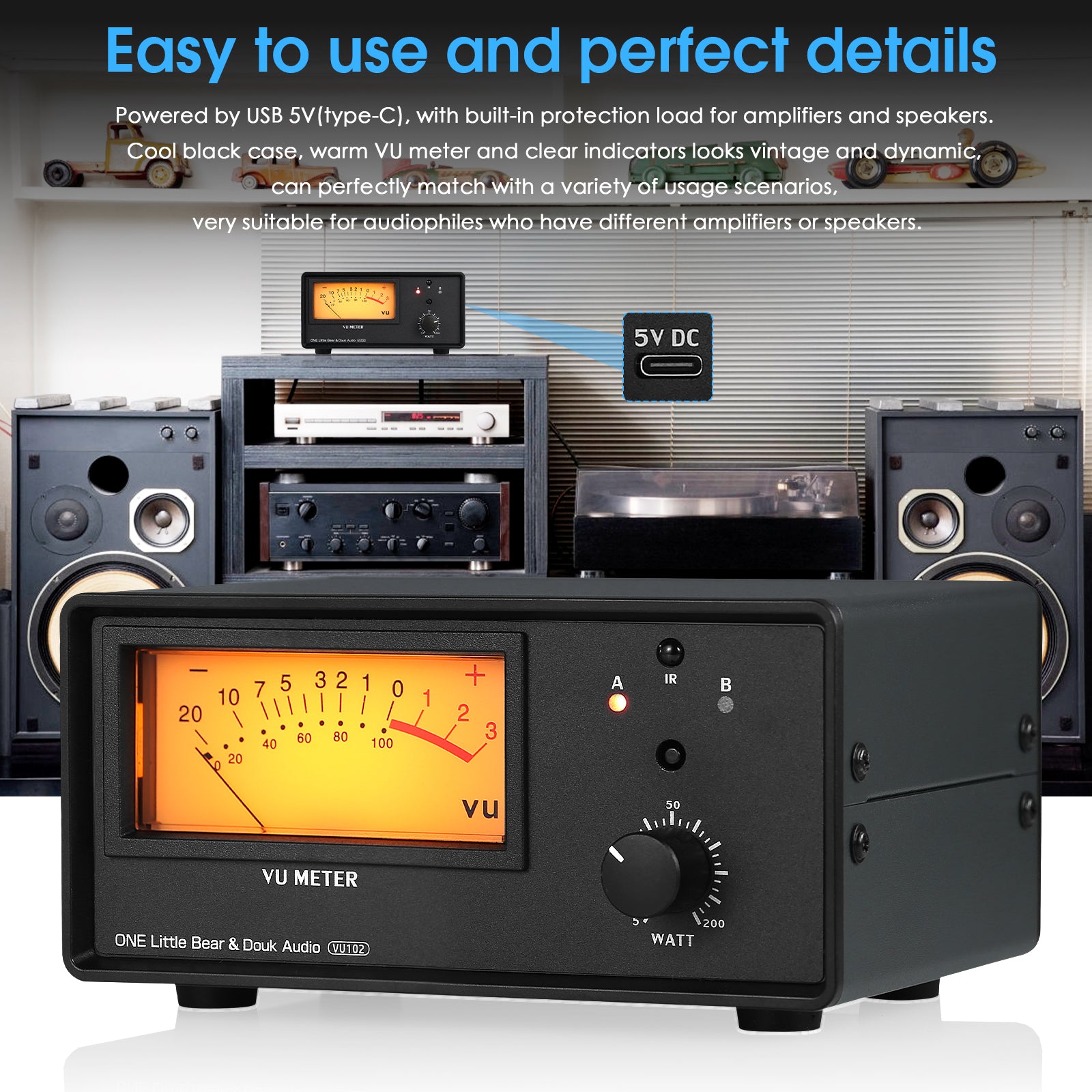

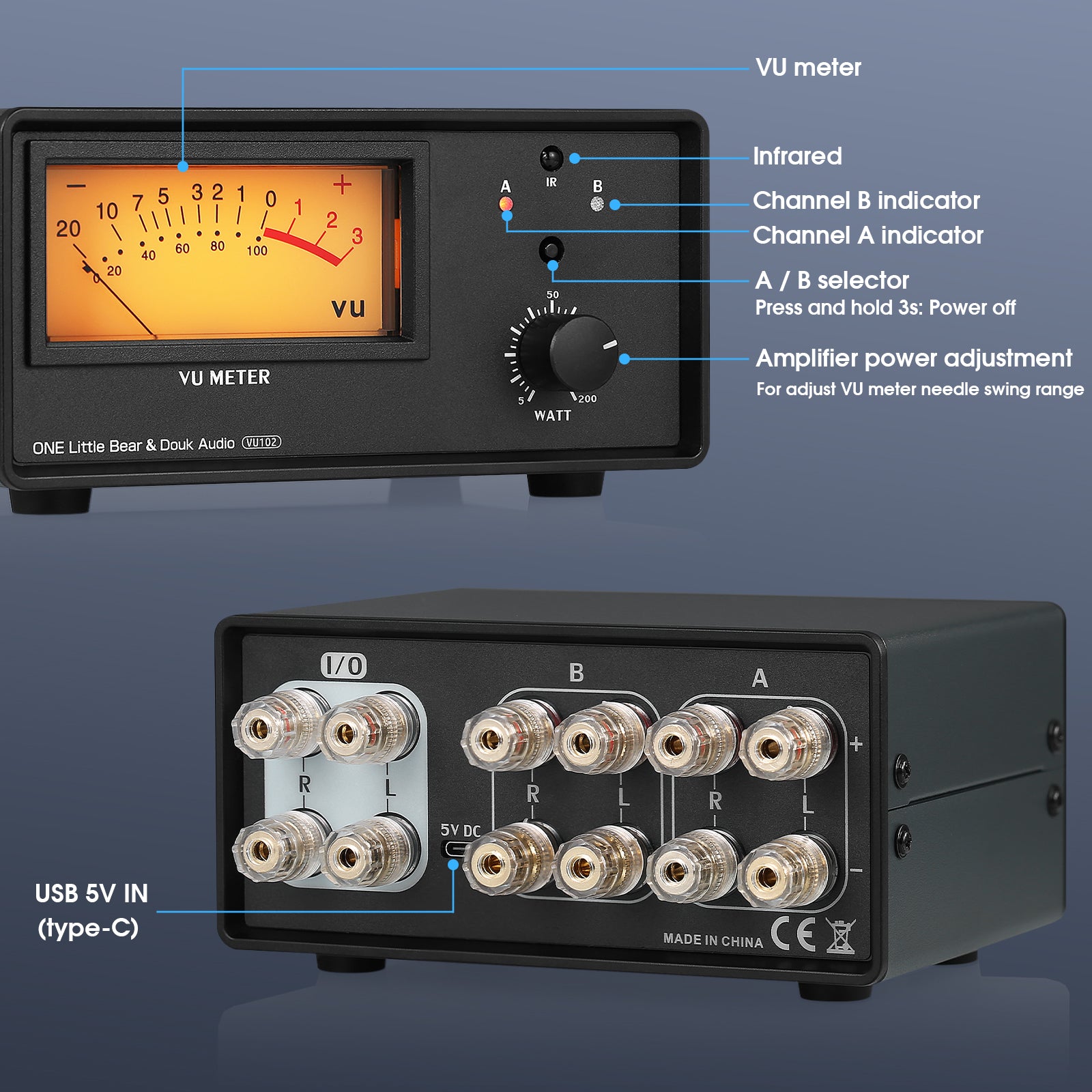

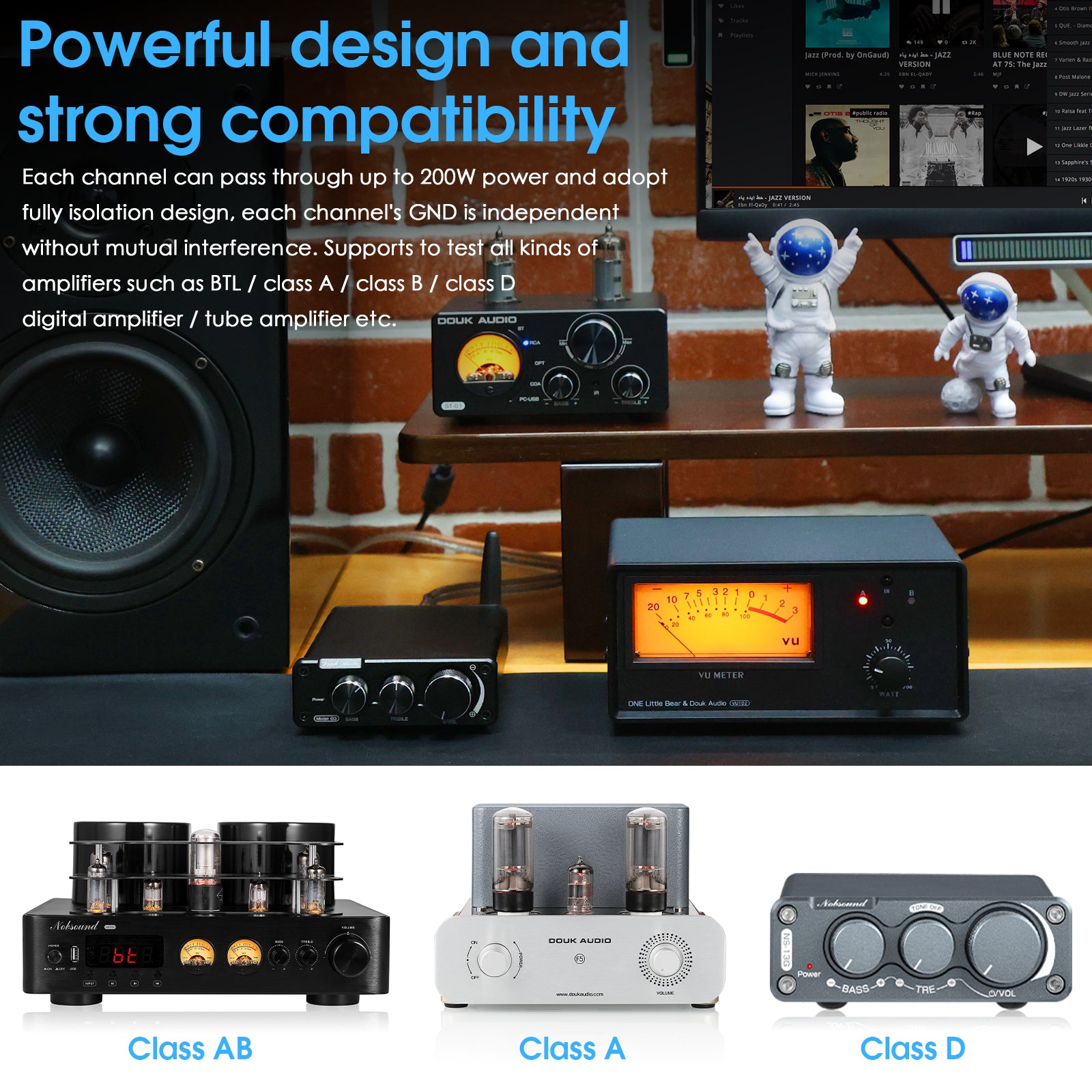

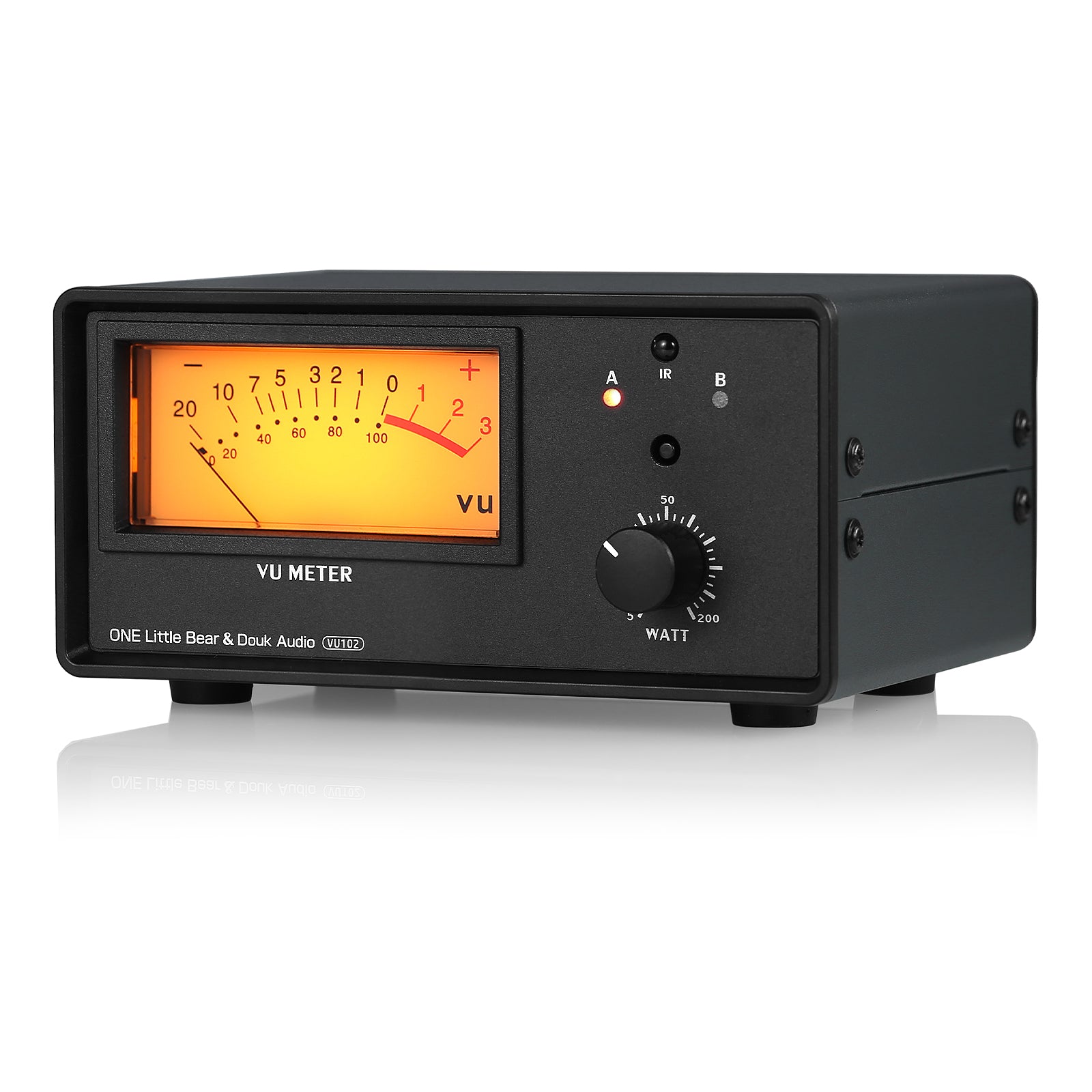

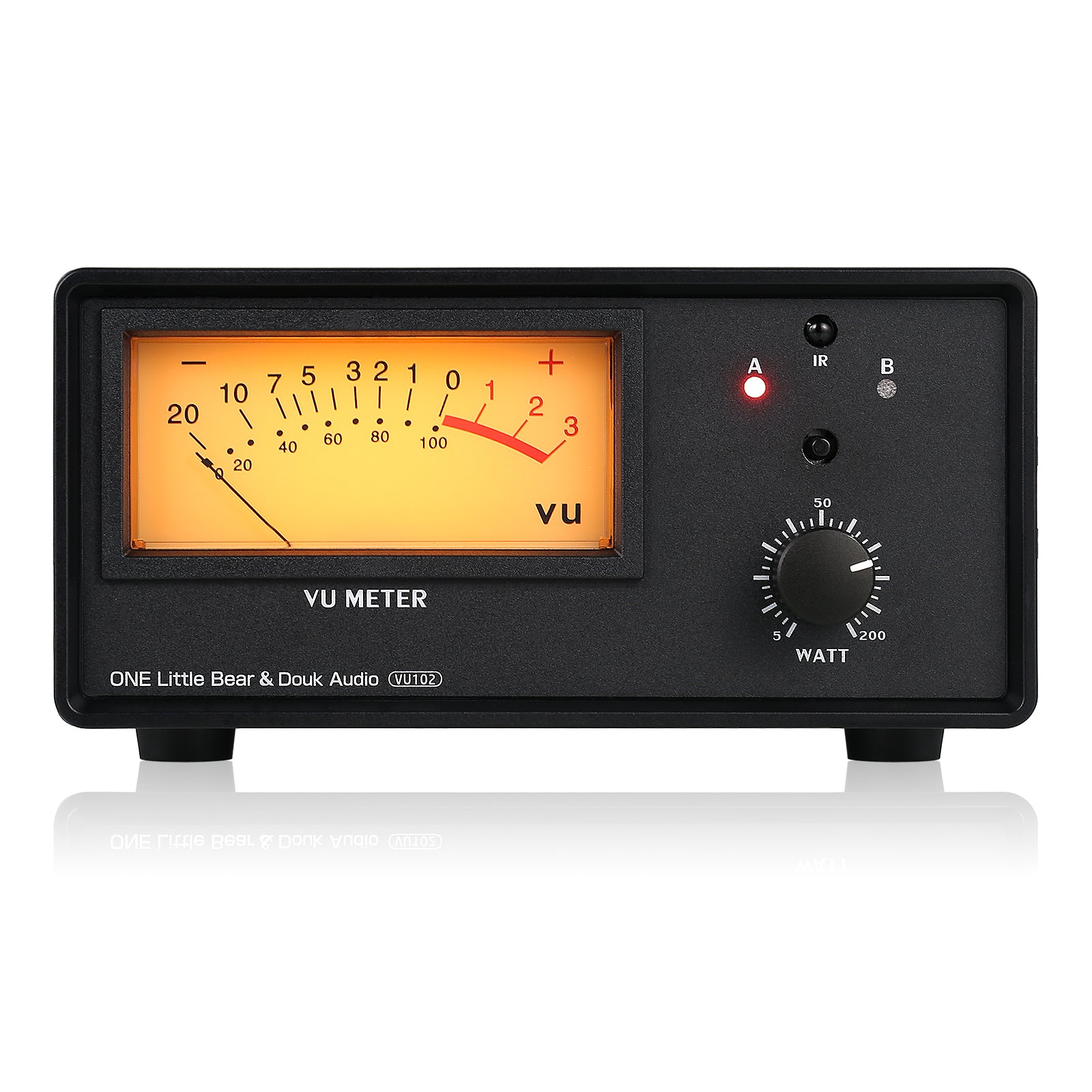

Douk Audio VU102 2 Zone Amplifier / Speaker Selector Box with VU Meter Audio Switcher w/IR Remote

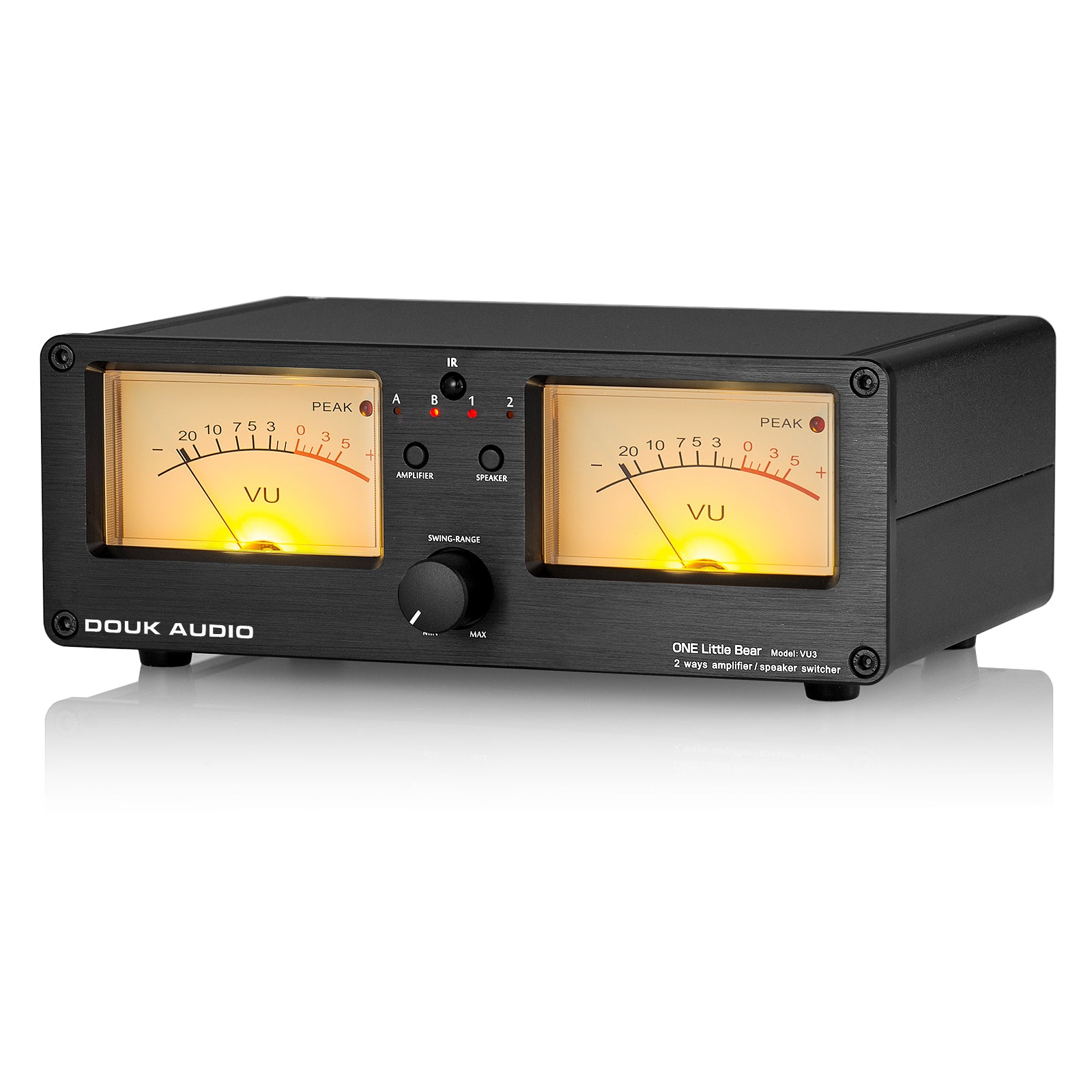

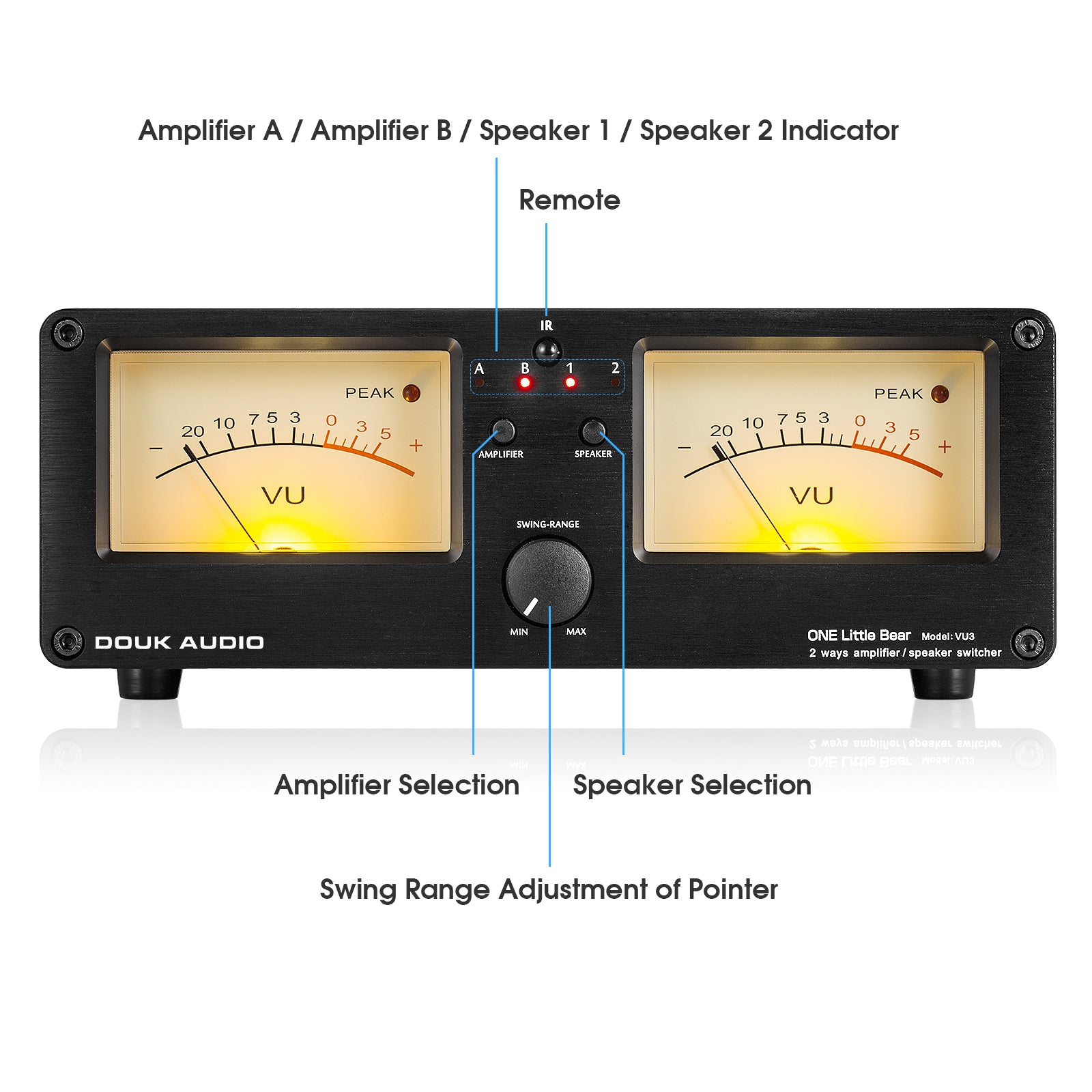

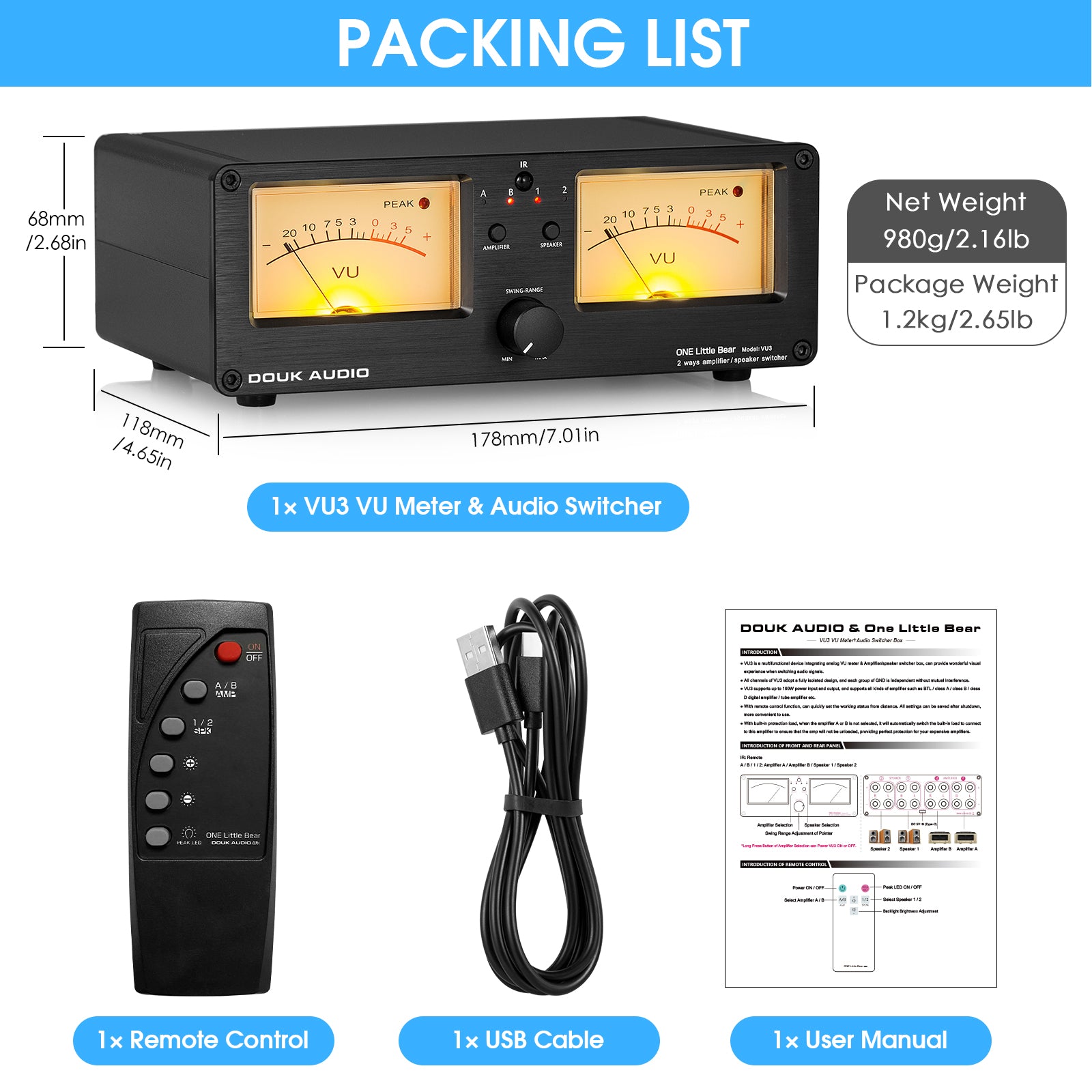

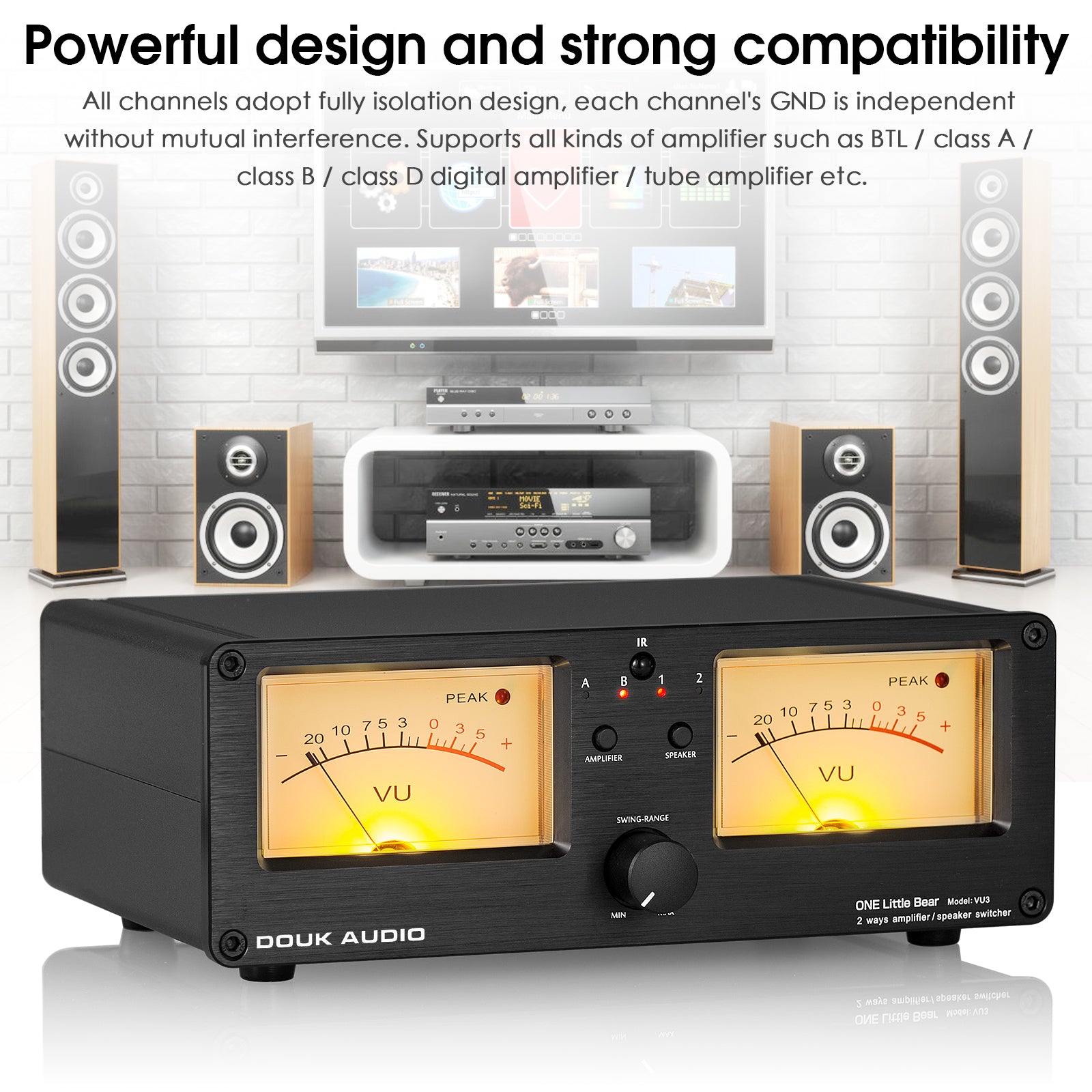

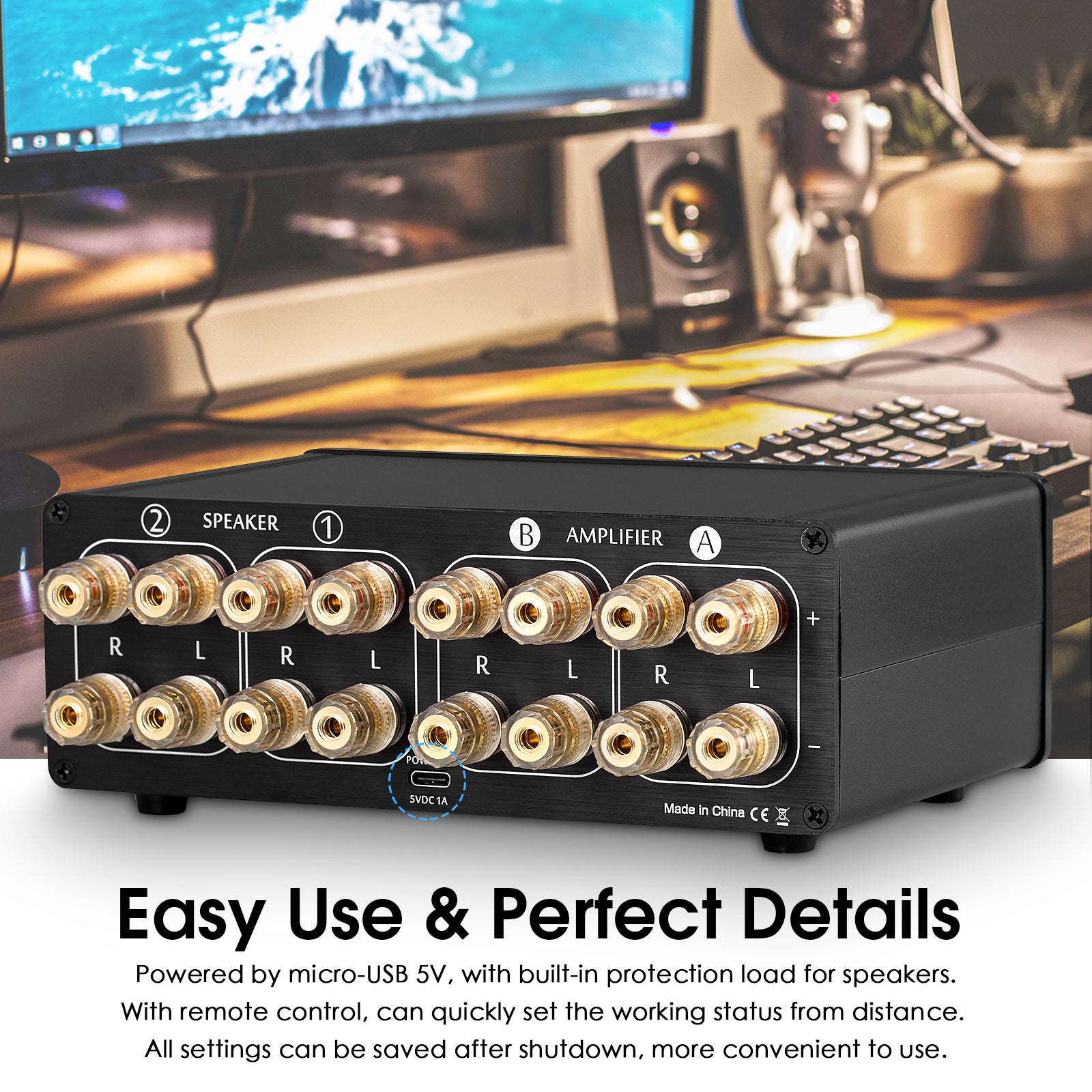

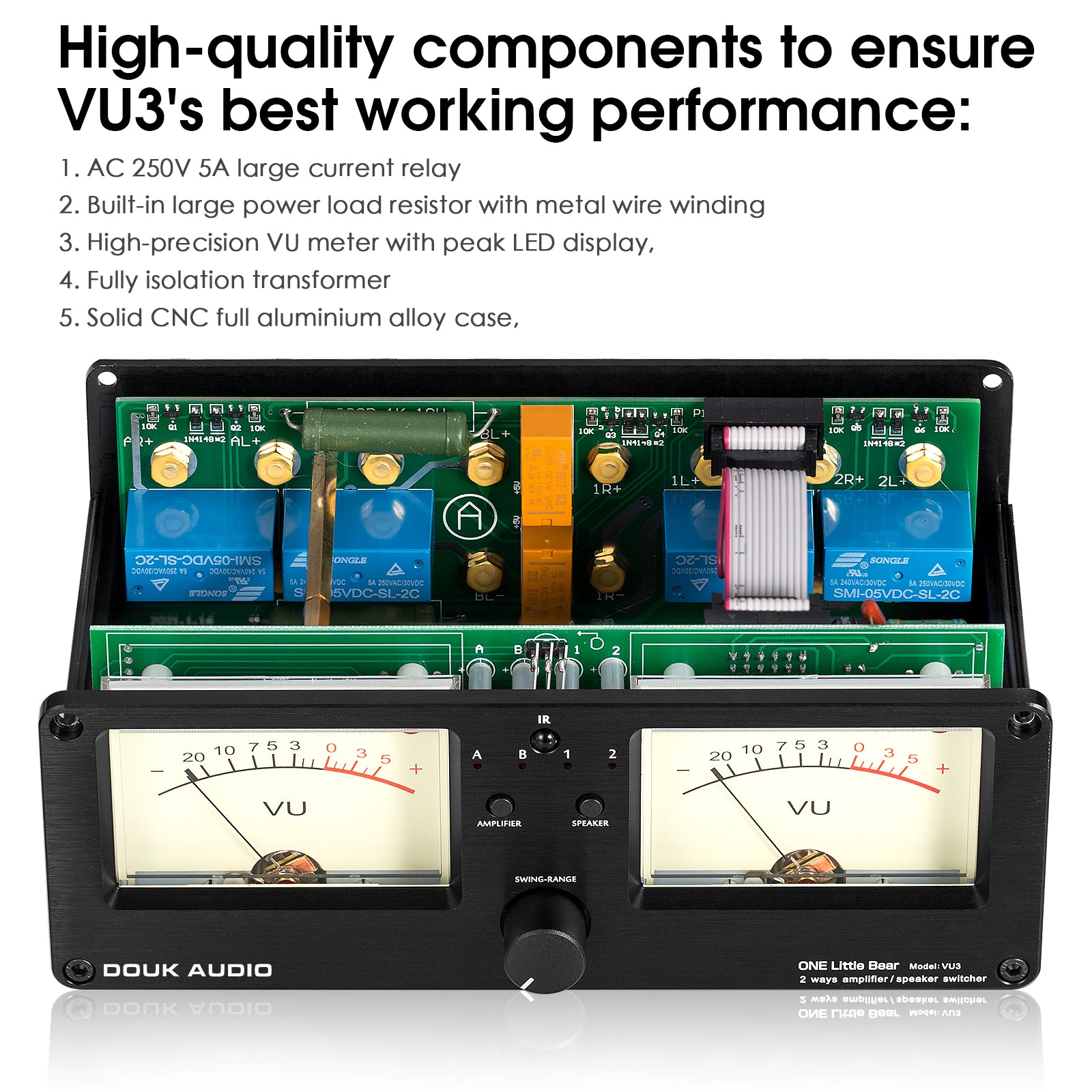

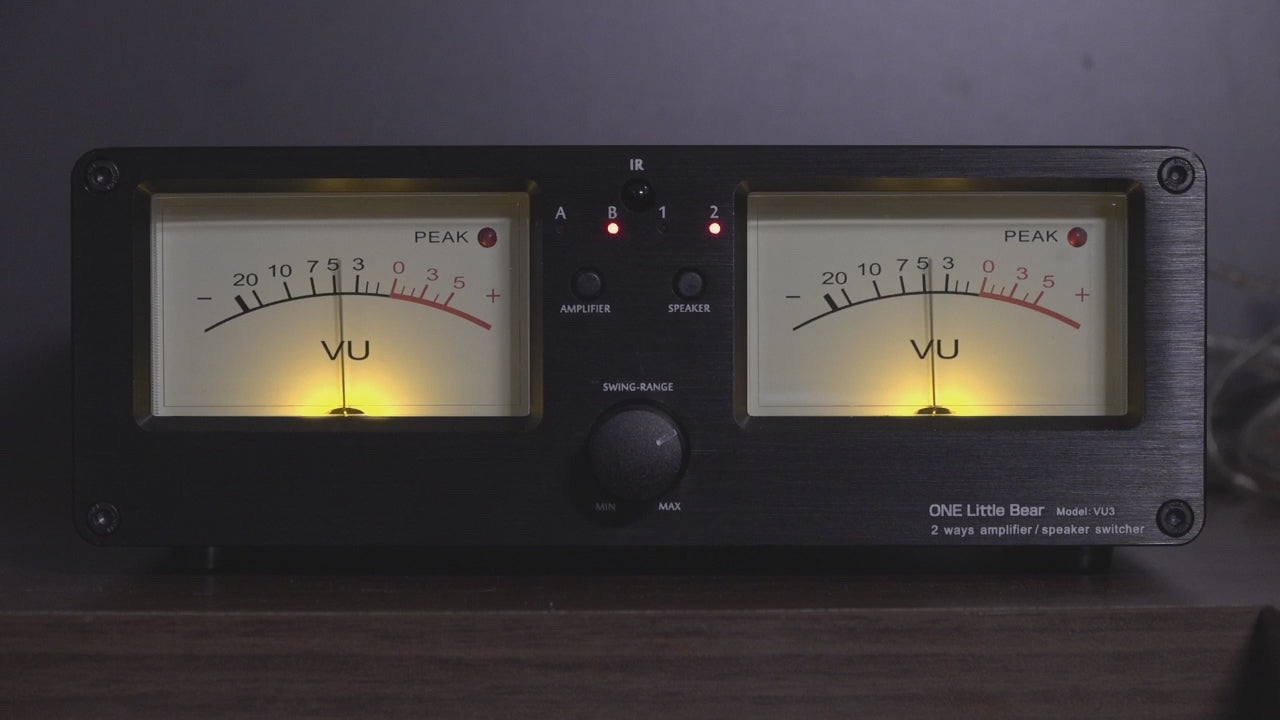

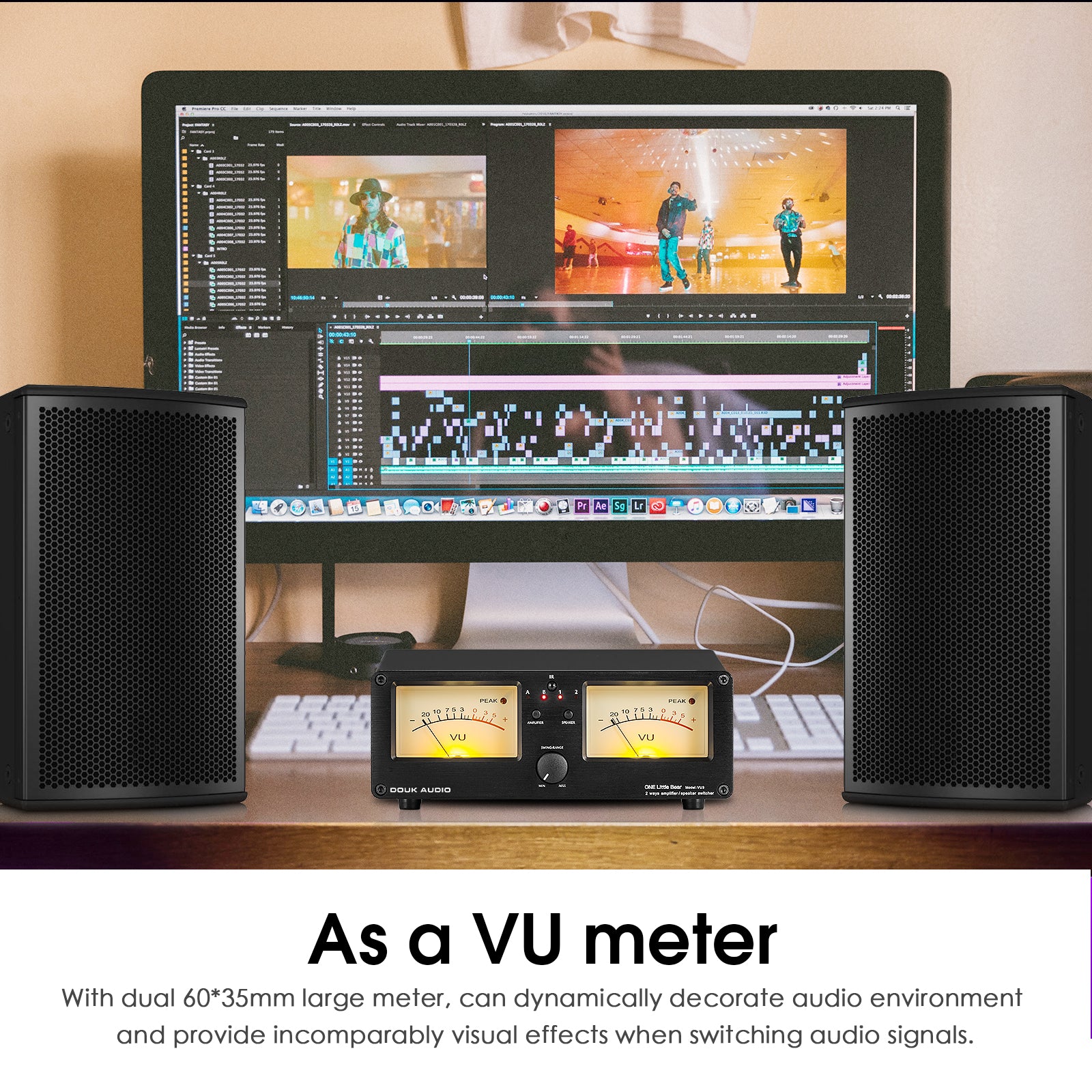

Douk Audio VU3 Dual Analog VU Meter 2-way Amplifier/Speaker Audio Switcher Box DB Panel Display
User manual of Douk Audio SP102 PRO
Warm Tips:
- Channel 1/2 can work at the same time. It is recommended to use this function in 1-IN-2-OUT mode, that means connect one amplifier and two pairs of speakers. Amplifiers may be damaged if use Channel 1/2 input at the same time.
- In OFF state, default disconnect 1&2 terminals from I/O interface, it is equivalent to mute. And 1 and 2 will be connected to the built-in load protection at the same time.
- Without DC 5V power adapter, please preapre it by yourself.4.For safer and faster delivery, the remote control without batteries(2*AAA), please prepare it by yourself.
- 2-way amplifier/speaker selector: Both working modes (2-IN-1-OUT / 1-IN-2-OUT), with A/B channel select button, convenient to compare the sound quality of 2 pairs of different speakers or 2PCS power amplifiers without plugging in and out cables repeatedly to avoid wearing the contact point of the sockets.
- Strong compatibility for audio devices: Support doing comparisons between different types of amplifiers such as BTL, class A, class B, class D, tube amp etc.. Each channel can pass up to 200W power, also suitable for the comparison between most passive speakers.
- User-friendly design for easy use: Designed with remote control to operate from the distance; add LED display screen and channel indicators, much clearer to show the working status in real time. Powered by DC5V USB(Type-c), very convenient to use in different occasions.
- Simple design but pure function: All channels adopt fully isolation design without mutual interference. A/B channel with built-in protective load; proper size with simple appearance, fashionable and durable, matches well with your audio equipment.

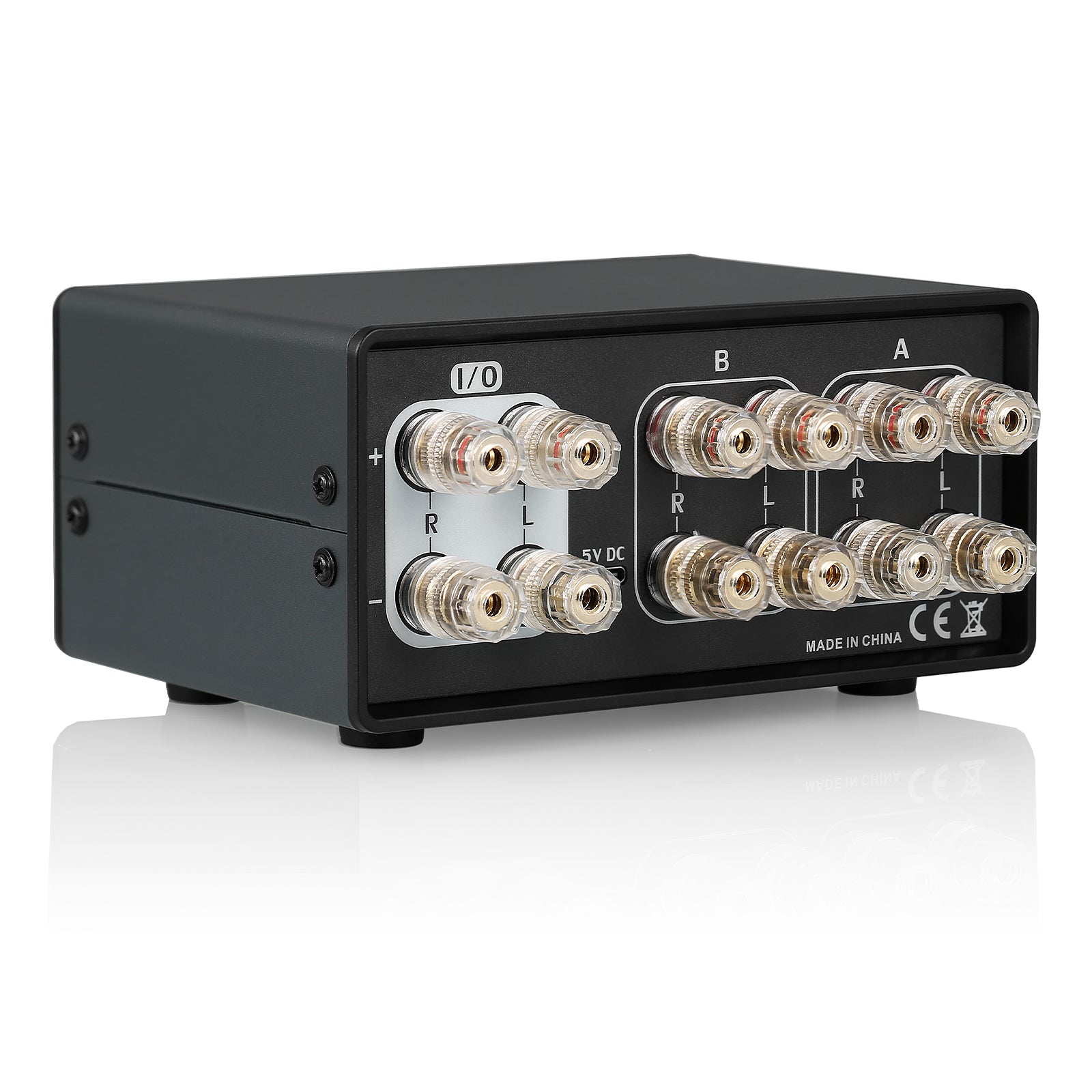

- Audio input/output: 2 groups of stereo 1/2, 1 group of I/O
- Interface type: banana female
- Working mode: 2-IN-1-OUT / 1-IN-2-OUT
- Amplifier type supported: all kinds of type (BTL /Class A /Class AB /Class B / Class D digital amp / tube amp etc.)
- Max. through power of each channel: 200W (in actual)
- Amplifier no-load protection: support
- Remote control: support
- Settings saved after shutdown: support
- Mute: support
- Working voltage: DC 5V
- Power interface: Type-C
- Dimensions(W*D*H): 242*108*33mm / 9.53*4.25*1.30in
- Net weight: 720g / 1.59lb
- Package weight: 1000g / 2.20lb
- SP102-PRO Switcher ×1
- Type-C Cable ×1
- Remote Control(without 2*AAA1.5V batteries) ×1
Douk Audio SP102 PRO
2-Way Amplifier & Speaker Selector
- Advanced 2-Way Selection
- Universal Compatibility
- User-Friendly Interface
- Plug-and-Play Convenience
- Safety and Protection
AB Channel & Power Switch
LED Display
2-IN-1-OUT / 1-IN-2-OUT
Max 200W Through Power Per Channel
DC USB Type-C Power Input
Remote Control
Compatible with Various Amp & Speaker
